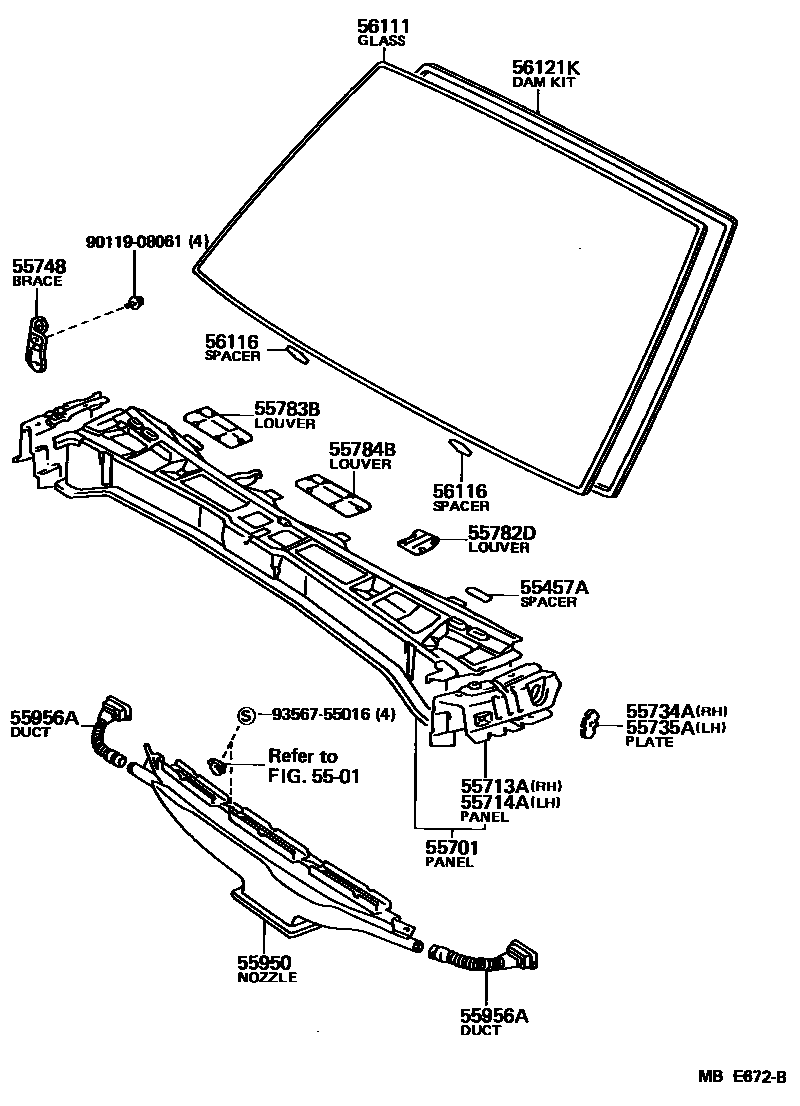

Toyota CAMRY 前围板和挡风玻璃 — Figure 5503
Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55457A | Dashboard safety pad spacer | 55457-22030 |
| 55701 | Front apron sub-assembly | 55700-32030 · 55700-32070 |
| 55713A | Right front wall upper side panel | 55713-32010 |
| 55714A | Left front wall upper side panel | 55714-32010 |
| 55734A | Right waterproof cover | 55734-32010 |
| 55735A | Left waterproof cover panel | 55734-32010 |
| 55748 | From cowl upper cover to column right bracket | 55748-32010 |
| 55782D | Ventilation grille on left front apron | 55782-32010 · 55782-32020 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-32010 · 55783-32020 |
| 55784B | Ventilation grille on center cowl No. 2 | 55784-32010 · 55784-32020 |
| 55950 | Defroster nozzle assembly | 55950-32020 · 55950-32021 |
| 55956A | Side defroster No. 1 nozzle air duct | 55971-32010 |
| 56111 | windshield | 56111-32020 · 56111-32030 · 56111-32040 · 56111-32060 · 56111-32070 · 56111-32080 · 56111-32100 · 56111-32110 |
| 56116 | windshield spacer | 56116-14070 |
| 56121K | Windshield sealing strip assembly | 04562-14010 |
