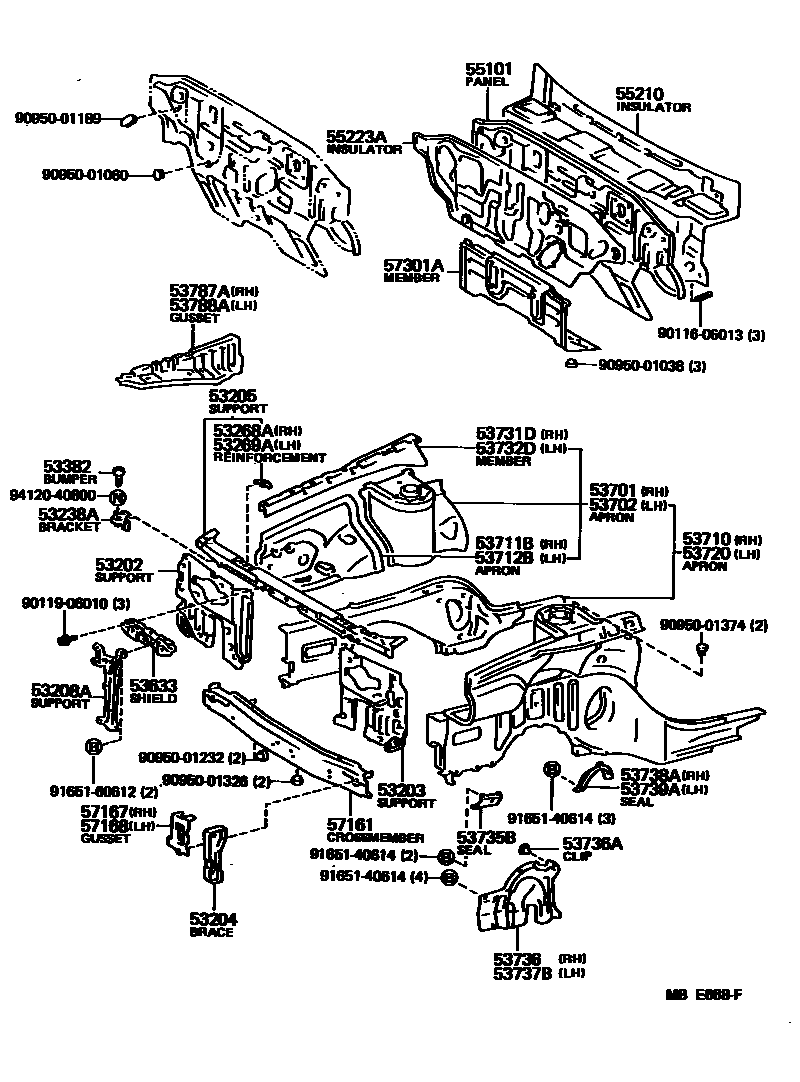

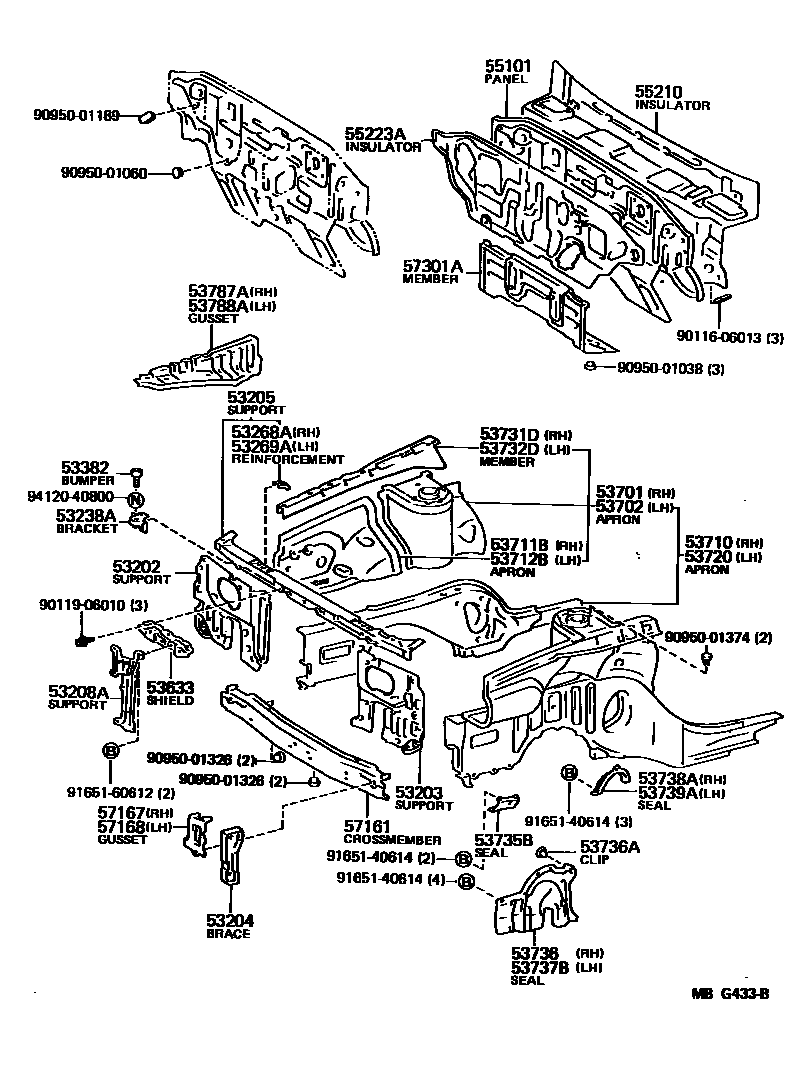

Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304
Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53202 | Radiator right side bracket sub-assembly | 53202-32010 · 53202-32011 |
| 53203 | Radiator left bracket sub-assembly | 53203-32010 · 53203-32011 · 53203-32020 · 53203-32021 |
| 53204 | Radiator bracket to cross member bracket sub-assembly | 53217-32020 · 53218-32020 |
| 53205 | Radiator upper bracket sub-assembly | 53216-32020 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-32020 · 53208-32021 |
| 53238A | Engine cover bumper mounting bracket | 53238-32010 |
| 53268A | Install reinforcement on the right side of the radiator | 53268-32010 · 53268-32011 |
| 53269A | Install reinforcement on the left side of the radiator | 53268-32010 · 53269-32010 |
| 53382 | Engine cover front buffer block | 53382-20011 |
| 53633 | Hood lock control cable guard | 53633-32020 |
| 53701 | Right front fender fender sub-assembly | 53701-32901 · 53701-32904 · 53701-32907 |
| 53702 | Left front fender fender sub-assembly | 53702-32901 · 53702-32904 |
| 53710 | Right fender assembly with front longitudinal beam | 53701-32020 · 53701-32021 · 53701-32050 |
| 53711B | Right front fender front fender | 53711-32020 |
| 53712B | Left front fender front fender | 53712-32020 |
| 53720 | Left fender assembly with front longitudinal beam | 53702-32020 · 53702-32021 |
| 53731D | Right front fender to cowl side upper beam | 53731-32010 |
| 53732D | Left front fender to cowl side upper beam | 53732-32010 |
| 53735B | Front fender fender seal | 53735-32010 |
| 53736 | Right front fender fender seal | 53736-32010 |
| 53736A | Clip (for front fender fender seal) | 90467-09030 |
| 53737B | Left front fender fender seal | 53737-32010 |
| 53738A | Right front fender fender rear seal | 53738-32010 |
| 53739A | Left front fender fender rear seal | 53739-32010 |
| 53787A | Right front fender fender lower corner panel | 53787-32010 |
| 53788A | Left front fender fender lower corner panel | 53788-32010 |
| 55101 | Front apron sub-assembly | 55101-32902 · 55101-32904 |
| 55210 | Front wall insulation pad assembly | 55210-32020 · 55210-32021 |
| 55223A | Front wall outer heat insulation pad | 55223-32020 · 55223-32021 |
| 57161 | front cross member | 57104-32020 |
| 57167 | Front cross member upper right corner panel | 57167-32020 |
| 57168 | Front cross member upper left corner panel | 57168-32020 |
| 57301A | Steering housing support beam sub-assembly | 57301-32020 |
