Toyota CAMRY 后保险杠及附件 — Figure 5202

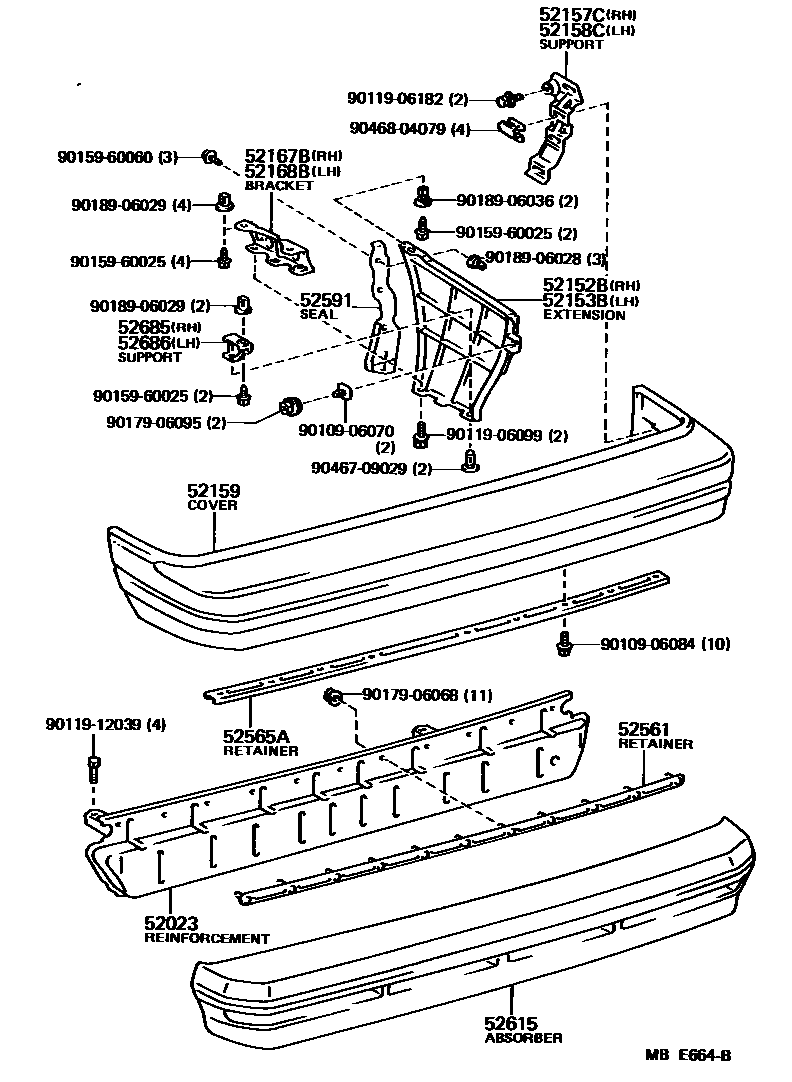

Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-32030 |
| 52152B | Rear bumper right extension | 52152-32040 · 52152-32900 |
| 52153B | Rear bumper left extension | 52153-32040 · 52153-32900 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-32020 |
| 52158C | Rear bumper No. 2 left side bracket | 52158-32010 |
| 52159 | rear bumper cover | 52159-32060 · 52159-32905 |
| 52167B | Rear bumper extension right mounting bracket | 52167-32010 |
| 52168B | Rear bumper extension left mounting bracket | 52168-32010 |
| 52561 | Rear bumper upper center fixing bracket | 52521-32030 |
| 52565A | Rear bumper lower fixing bracket | 52565-32020 |
| 52591 | Rear bumper right seal | 52591-32010 |
| 52615 | Rear bumper energy absorber | 52615-32030 |
| 52685 | Rear bumper No. 3 right side bracket | 52685-32010 |
| 52686 | Rear bumper No. 3 left bracket | 52686-32010 |
