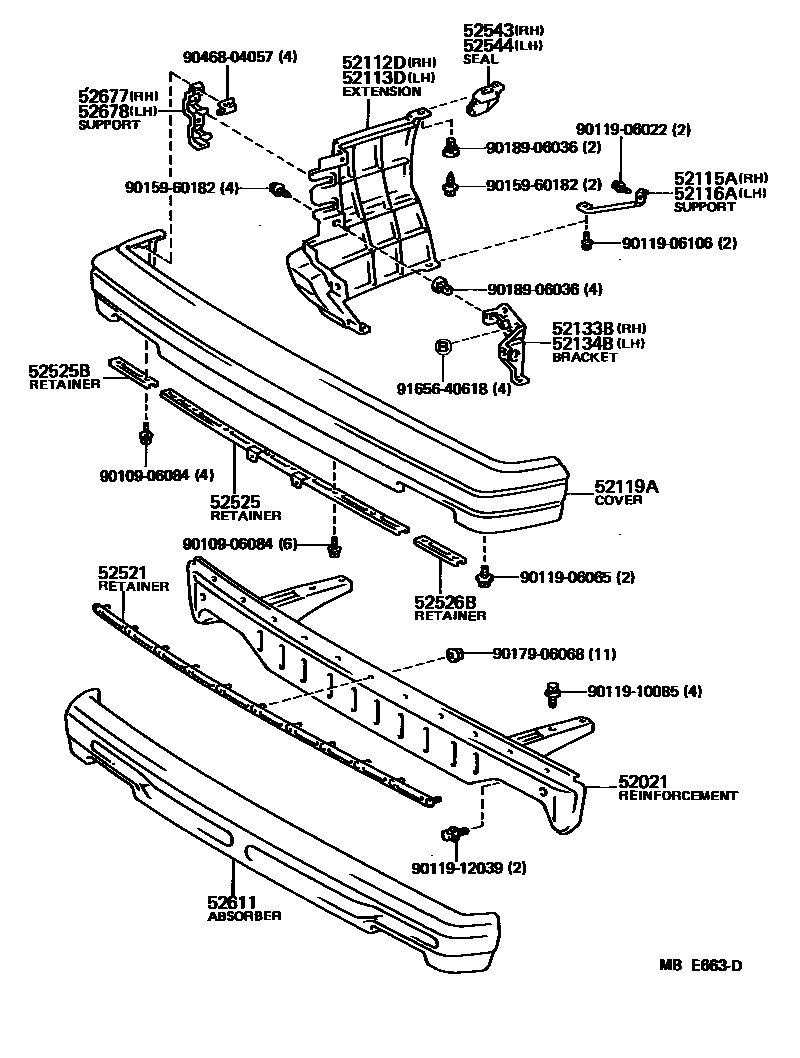

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-32020 |
| 52112D | Front bumper right extension | 52112-32010 · 52112-32900 |
| 52113D | Front bumper left extension | 52113-32010 · 52113-32900 |
| 52115A | Front bumper right side bracket | 52115-32010 |
| 52116A | Front bumper left bracket | 52115-32010 |
| 52119A | front bumper cover | 52119-32080 · 52119-32900 |
| 52133B | Front bumper right extension section mounting bracket | 52133-32020 |
| 52134B | Front bumper left extension section mounting bracket | 52134-32020 |
| 52521 | Front bumper upper center fixing bracket | 52521-32030 |
| 52525 | Front bumper lower center fixing bracket | 52525-32010 |
| 52525B | Front bumper lower right side fixing bracket | 52526-32020 |
| 52526B | Front bumper lower left side fixing bracket | 52526-32020 |
| 52543 | Front bumper right seal | 52543-32010 |
| 52544 | Front bumper left seal | 52544-32010 |
| 52611 | front bumper energy absorber | 52611-32040 |
| 52677 | Front bumper No. 2 right side bracket | 52677-32010 |
| 52678 | Front bumper No. 2 left side bracket | 52678-32010 |
