Toyota CAMRY 制动配管和卡箍 — Figure 4708

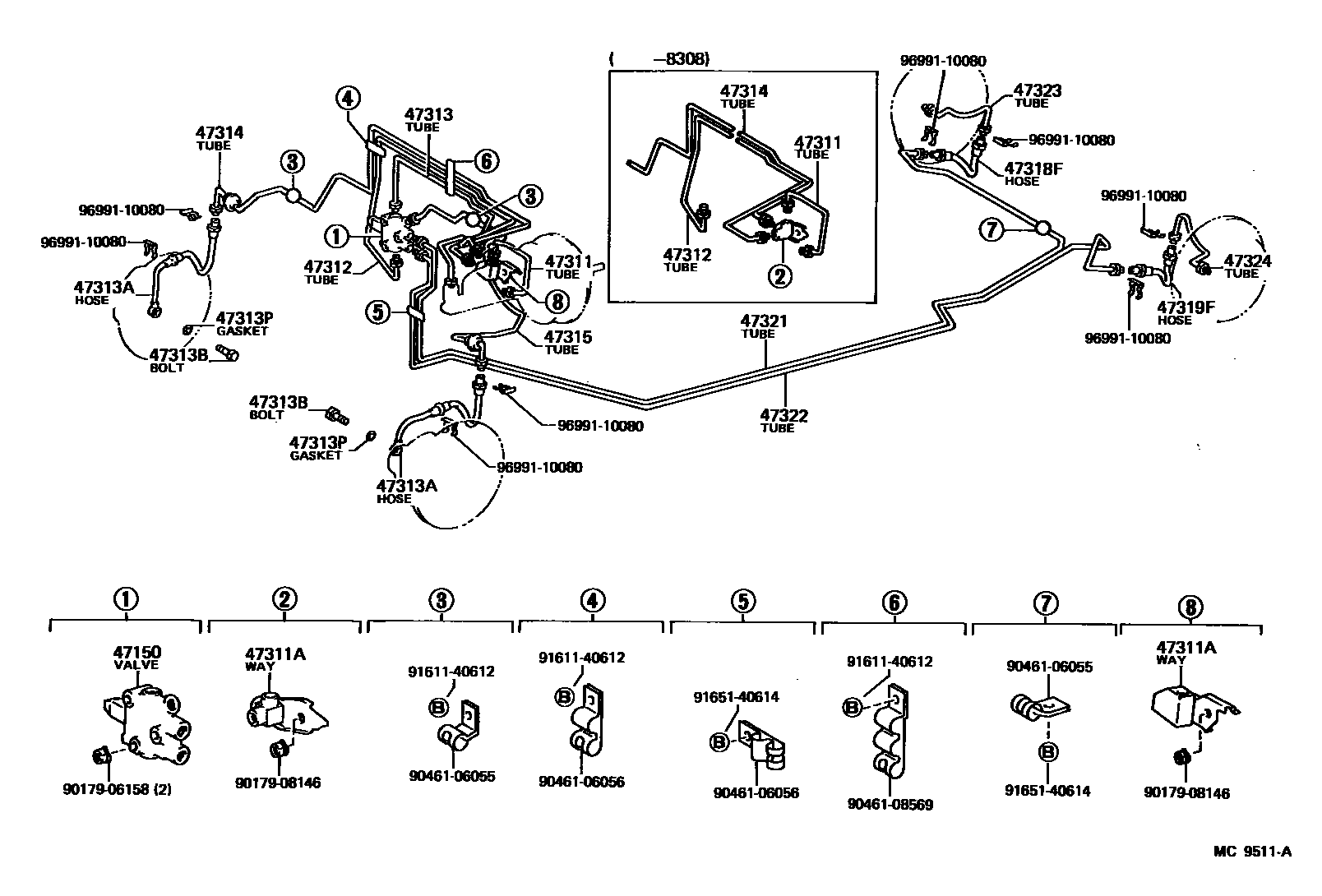

Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47150 | Proportional valve assembly | 47150-32010 · 47150-32030 |
| 47311 | No. 1 front brake pipe | 47311-32040 · 47311-32050 |
| 47311A | Pipe fitting (for front brake pipe) | 90413-10154 · 90413-10165 |
| 47312 | No. 2 front brake pipe | 47312-32021 · 47312-32022 · 47312-32050 · 47312-32070 |
| 47313 | No. 3 front brake pipe | 47313-32021 · 47313-32050 · 47313-32060 |
| 47313A | No. 1 front flexible hose | 90947-02429 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-32021 · 47314-32022 · 47314-32050 · 47314-32060 |
| 47315 | No. 5 front brake pipe | 47315-32020 · 47315-32050 |
| 47318F | Right rear flexible hose | 96950-33455 |
| 47319F | Left rear flexible hose | 96950-33455 |
| 47321 | No. 1 rear brake pipe | 47321-32010 · 47321-32040 |
| 47322 | No. 2 rear brake pipe | 47322-32010 · 47322-32030 |
| 47323 | No. 3 rear brake pipe | 47323-20040 · 47324-32010 |
| 47324 | No. 4 rear brake pipe | 47324-20040 · 47325-32010 |
