Toyota CAMRY Steering Column & Shaft — Figure 4501

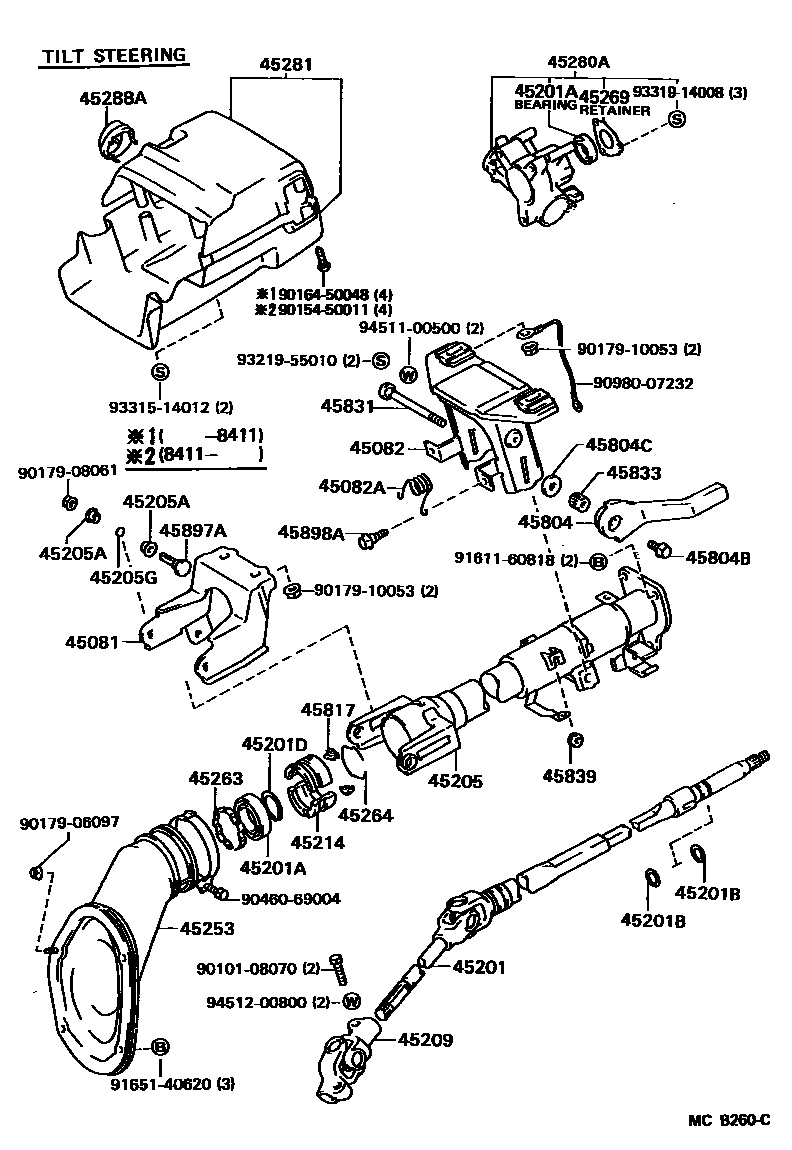

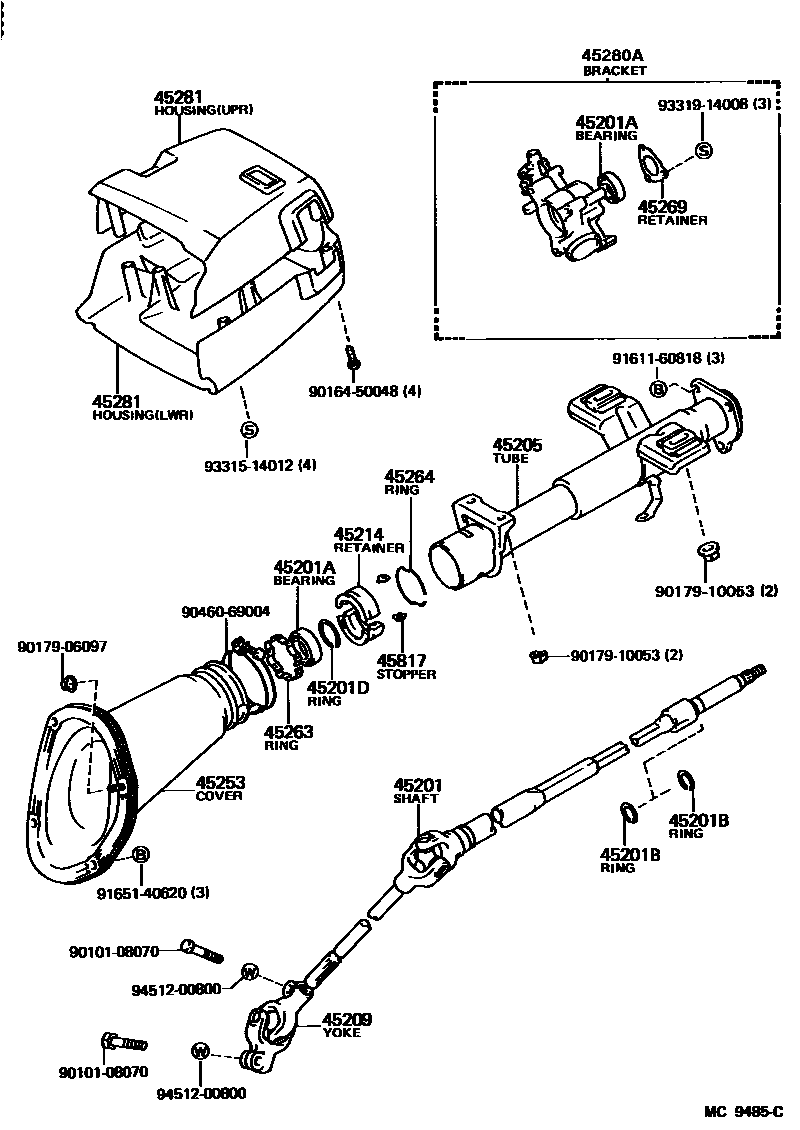

Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45081 | Tilt-adjustable steering bracket sub-assembly | 45081-32020 |
| 45082 | Separate bracket sub-assembly with enclosure | 45082-32010 |
| 45082A | Torsion spring (for tilt-adjustable steering column return) | 90508-29015 |
| 45201 | Steering spindle sub-assembly | 45210-32010 · 45210-32030 · 45210-32070 |
| 45201A | Bearings (for steering spindle) | 90363-18038 · 90363-30007 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17196 |
| 45201D | Ring (for steering spindle) | 96152-00300 |
| 45205 | Steering column tube sub-assembly | 45870-32010 · 45870-32050 |
| 45205A | Bushing (for steering column tube) | 90389-11005 |
| 45205G | O-ring (for steering column tube) | 90301-11005 |
| 45209 | Steering slip fork sub-assembly | 45209-32010 · 45209-32020 |
| 45214 | Spindle spring seat ring | 45214-32010 |
| 45253 | Steering column hole cover | 45025-32020 · 45025-32040 |
| 45263 | No. 1 steering column ring | 45263-32010 |
| 45264 | No. 2 steering column ring | 45264-32010 |
| 45269 | Spindle bearing retainer | 45269-35010 |
| 45280A | Steering column upper bracket assembly | 45020-32020 · 45020-32100 |
| 45288A | Steering column cover spacer | 45288-32020 |
| 45804 | Steering tilt adjustment lever sub-assembly | 45804-20010 |
| 45804B | Bolt (for steering tilt adjustment lever) | 90105-08060 |
| 45804C | Flat washer (for steering tilt adjustment lever) | 90201-08029 |
| 45817 | Steering shaft thrust stop | 45817-32010 |
| 45831 | No. 1 tilt adjustment lever locking bolt | 45831-20010 |
| 45833 | Tilt-adjustable steering column adjustment nut No. 1 | 45833-20010 |
| 45839 | return spring seal | 45839-20010 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-26010 |
| 45898A | return spring fixing bolt | 45898-20020 |
