Toyota CAMRY 变速器壳和油底壳(ATM) — Figure 3503

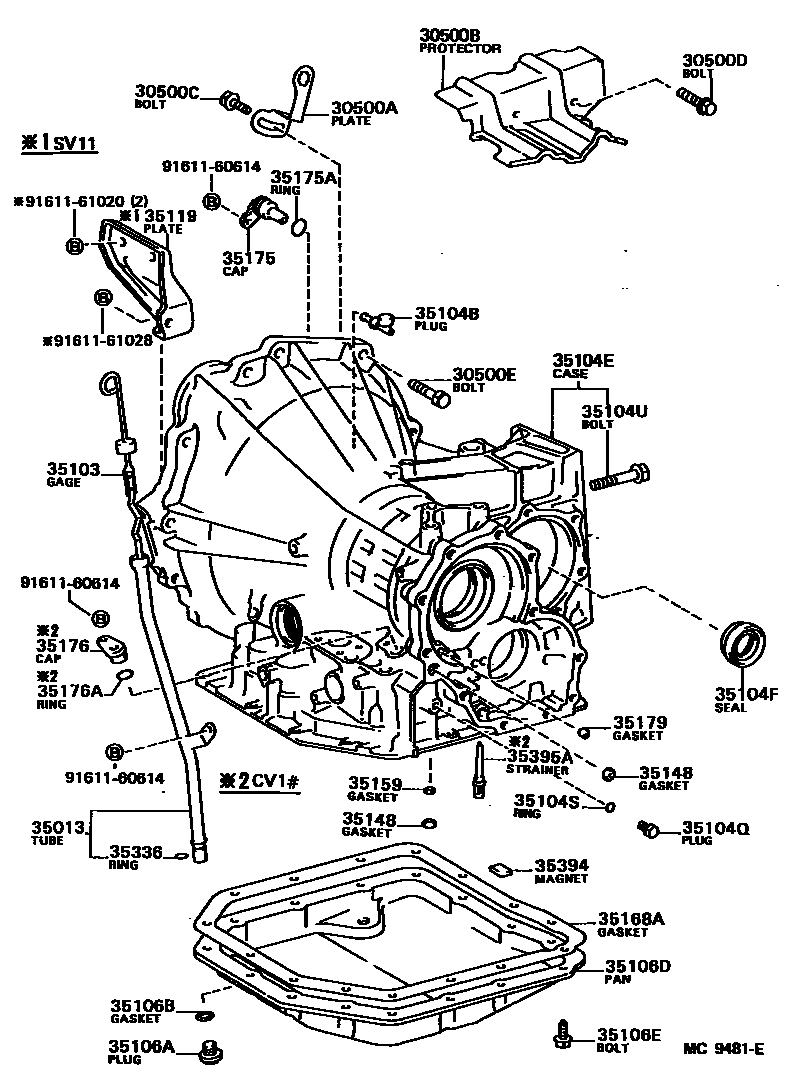

Toyota CAMRY EPC diagram 3503, 变速器壳和油底壳(ATM), with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30500A | Bolt locking plate (ATM) | 31129-32010 |
| 30500B | Transmission axle housing protective cover | 33117-20010 · 33117-32020 · 33117-32021 · 33117-32022 |
| 30500C | Bolt (for bolt locking plate) | 90105-08040 |
| 30500D | Bolts (for transaxle housing guard) | 90105-08040 |
| 30500E | Bolts (for securing transaxle and engine) | 90105-10055 · 90105-10077 · 91619-61245 · 91651-41016 |
| 35013 | Transmission oil pipe sub-assembly | 35013-32010 · 35013-32020 |
| 35103 | Transmission oil level scoring assembly | 35103-32010 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03089 |
| 35104E | Automatic transmission axle housing sub-assembly | 35104-32010 · 35104-32020 · 35104-32031 |
| 35104F | Oil seal (for transmission axle housing) | 90311-35010 |
| 35104Q | No. 1 screw plug (for transmission axle housing) | 90341-08001 |
| 35104S | O-ring (for transmission axle housing plug No. 1) | 90301-06196 |
| 35104U | Bolts (for transaxle housing) | 90105-12052 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-18016 |
| 35106B | Drain plug gasket (ATM) | 12157-10010 · 90430-18007 · 90430-18008 |
| 35106D | Automatic transmission axle oil pan sub-assembly | 35106-32010 · 35106-32011 |
| 35106E | Bolts (for transaxle oil pan) | 90119-06173 |
| 35119 | Left reinforcement plate (ATM) | 33119-32010 |
| 35148 | Governor oil supply pipe No. 1 gasket | 35148-16010 |
| 35159 | brake drum gasket | 35159-32010 · 35159-32011 |
| 35168A | Automatic transaxle oil pan gasket | 35168-32010 |
| 35175 | No. 2 transmission axle housing cover | 35175-32010 |
| 35175A | O-ring (for transmission axle housing cover) | 90301-21002 |
| 35176 | Wire harness cover | 35176-32010 |
| 35176A | O-ring (for wire harness cover) | 96721-24013 |
| 35179 | overdrive brake pad | 35179-32010 |
| 35336 | O-ring (for transmission filler pipe) | 90301-09173 |
| 35394 | Oil filter magnet (for transmission) | 35394-30011 |
| 35395A | governor oil filter | 35395-32010 · 35395-32011 |
