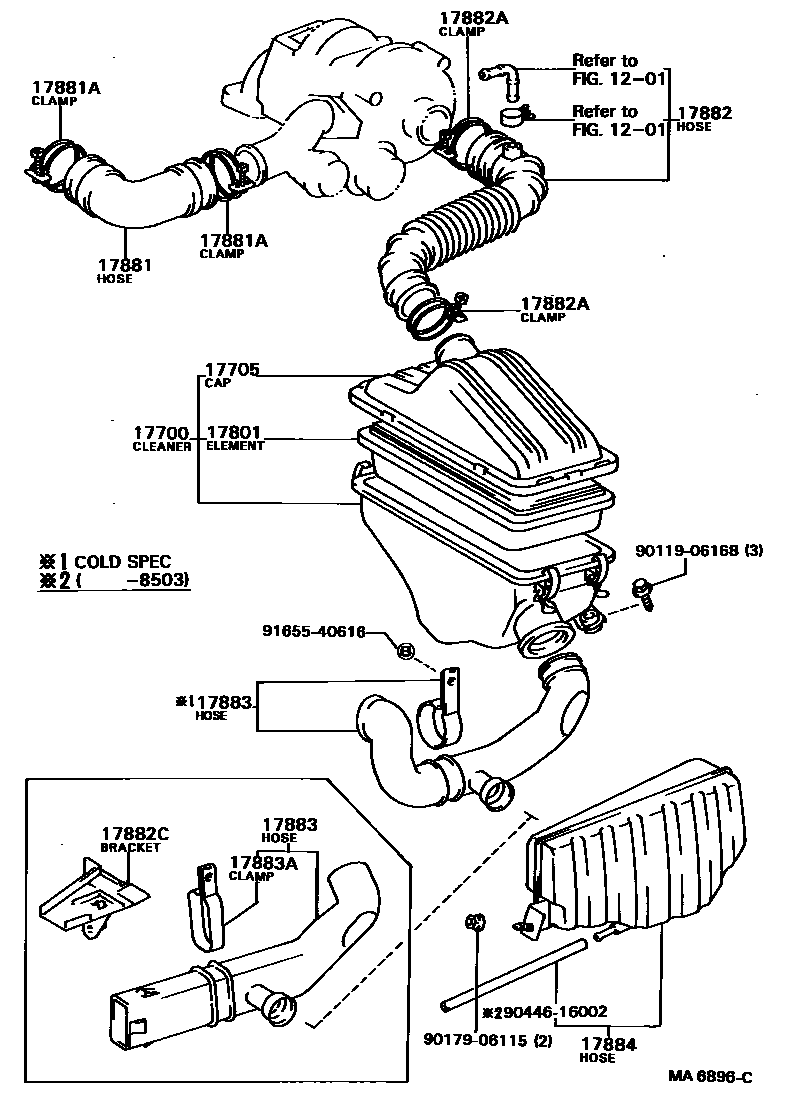

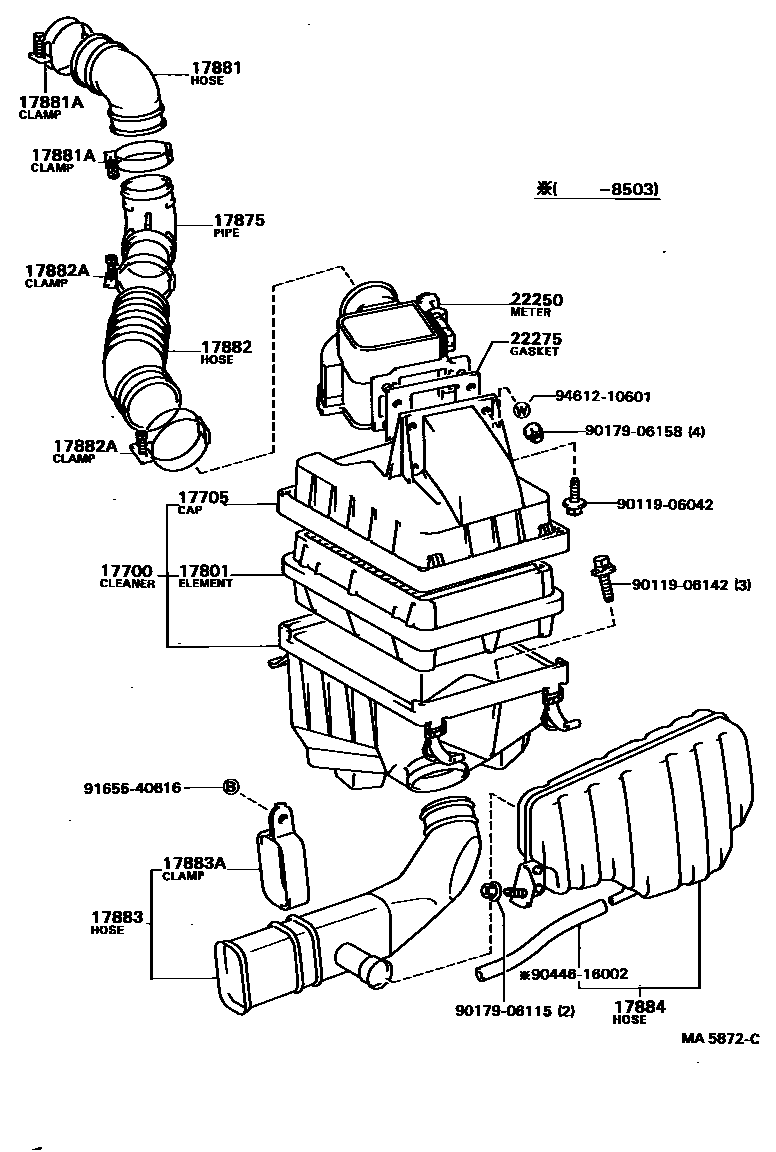

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-64100 · 17700-64140 · 17700-74010 |
| 17705 | Air filter cover sub-assembly | 17705-64030 · 17705-74010 |
| 17801 | Air filter element sub-assembly | 17801-64040 · 17801-64050 · 17801-74010 |
| 17875 | Intake connecting pipe | 17875-74011 |
| 17881 | No. 1 air cleaner hose | 17341-64020 · 17881-74010 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-70001 · 96111-10710 |
| 17882 | No. 2 air cleaner hose | 17880-64040 · 17882-74010 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-75001 · 96111-10670 · 96111-10710 · 96111-10800 |
| 17882C | Bracket (for cold air intake pipe) | 53849-32010 · 53849-32020 |
| 17883 | No. 3 air cleaner hose | 17882-32020 · 17882-32030 · 17882-32040 · 17882-32060 · 17882-32070 · 17882-32080 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 90460-01028 |
| 17884 | No. 4 air cleaner hose | 17883-32020 · 17883-32030 |
| 22250 | Intake air flow meter assembly | 22250-74020 |
| 22275 | air flow meter gasket | 22275-41010 |
