Toyota CAMRY V-Belt — Figure 1605

Toyota CAMRY EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.

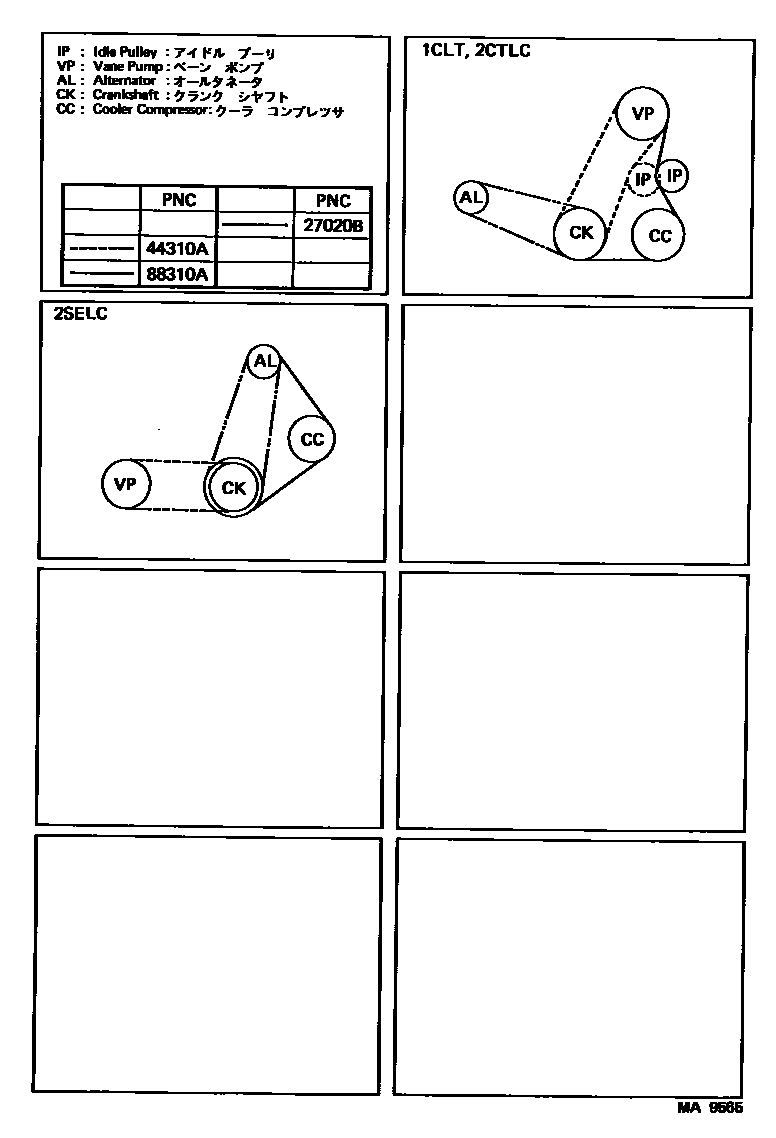

Toyota CAMRY V-Belt EPC diagram — MA9565
V-Belt — MA9565 (198301 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020BV-belt (for generator)90916-02125 · 99365-01000 · 99365-51110
44310AV-belt (for vane pump)99363-50760 · 99365-51120 · 99365-51210
88310ANo. 1 V-belt (cooler compressor to crankshaft pulley)99365-51110
