Toyota CAMRY Oil Filter — Figure 1502

Toyota CAMRY EPC diagram 1502, Oil Filter, with 2 images and 10 PNC and OE references.

Toyota CAMRY Oil Filter EPC diagram — MA6093A
Oil Filter — MA6093A (198308 – 999999)

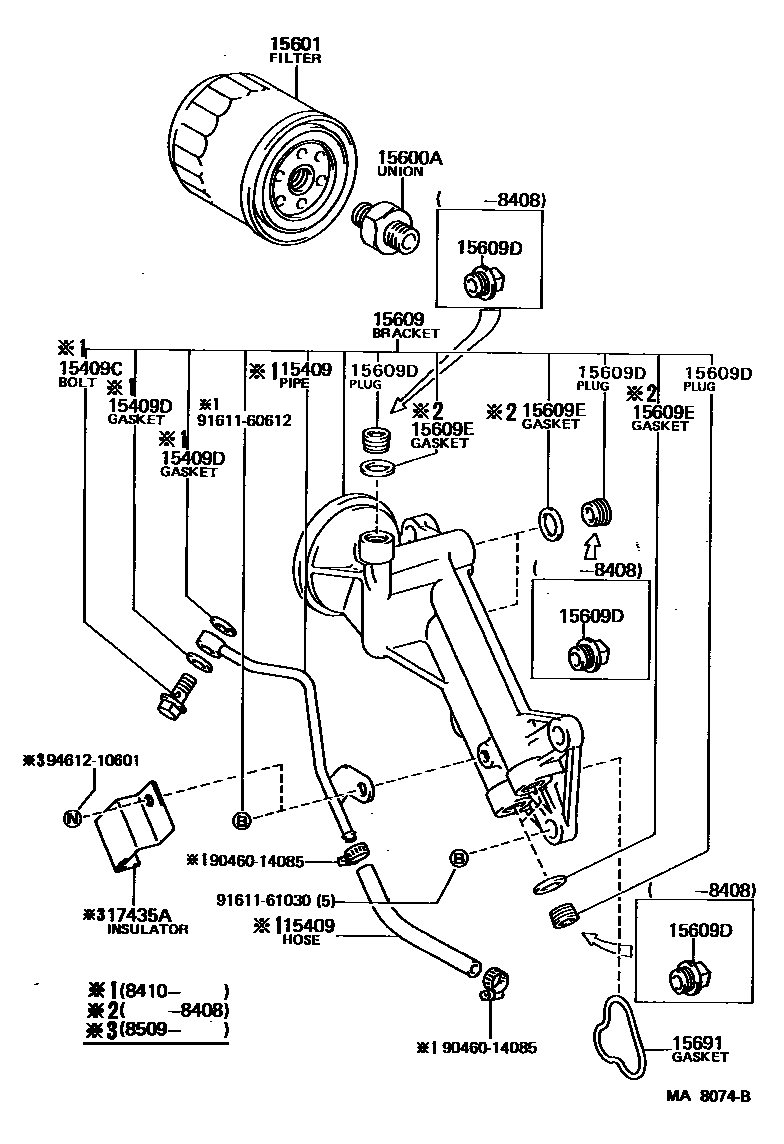

Toyota CAMRY Oil Filter EPC diagram — MA8074B
Oil Filter — MA8074B (198308 – 999999)

PNC and OE references

PNCPart nameOE numbers
15409Oil filter outlet pipe or oil outlet hose15431-64020 · 90445-14105
15409CJoint bolt (for oil filter outlet pipe)90401-10020
15409DGasket (for oil filter outlet pipe)90430-10035
15600AConnector (for oil filter)90404-19002 · 90404-19004 · 90404-27001
15601Oil filter sub-assembly15600-25010 · 15600-64020 · 15601-13010 · 15601-13011
15609Oil filter bracket sub-assembly15608-64010 · 15608-64030
15609DStraight threaded plug with head (for oil filter bracket)90341-16009 · 90344-53002
15609EHeaded straight thread plug liner90430-16242
15691oil filter gasket15691-64020
17435AInsulation pad (for oil filter holder)17435-64010
