Toyota CAMRY Engine Oil Pump — Figure 1501

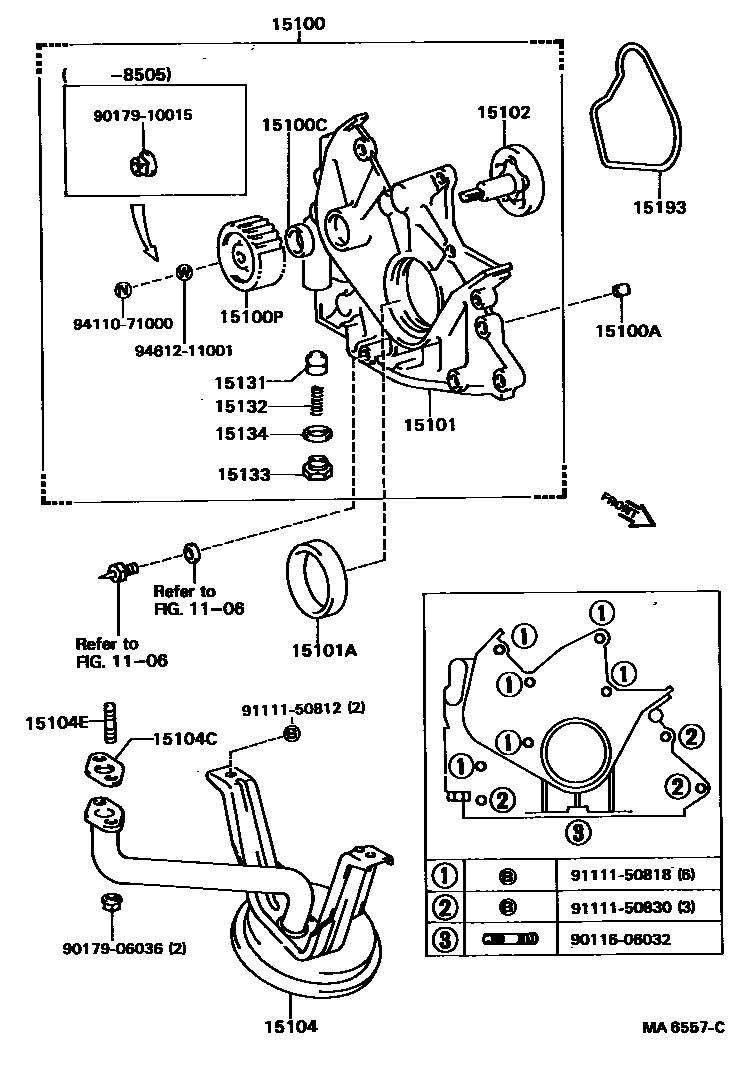

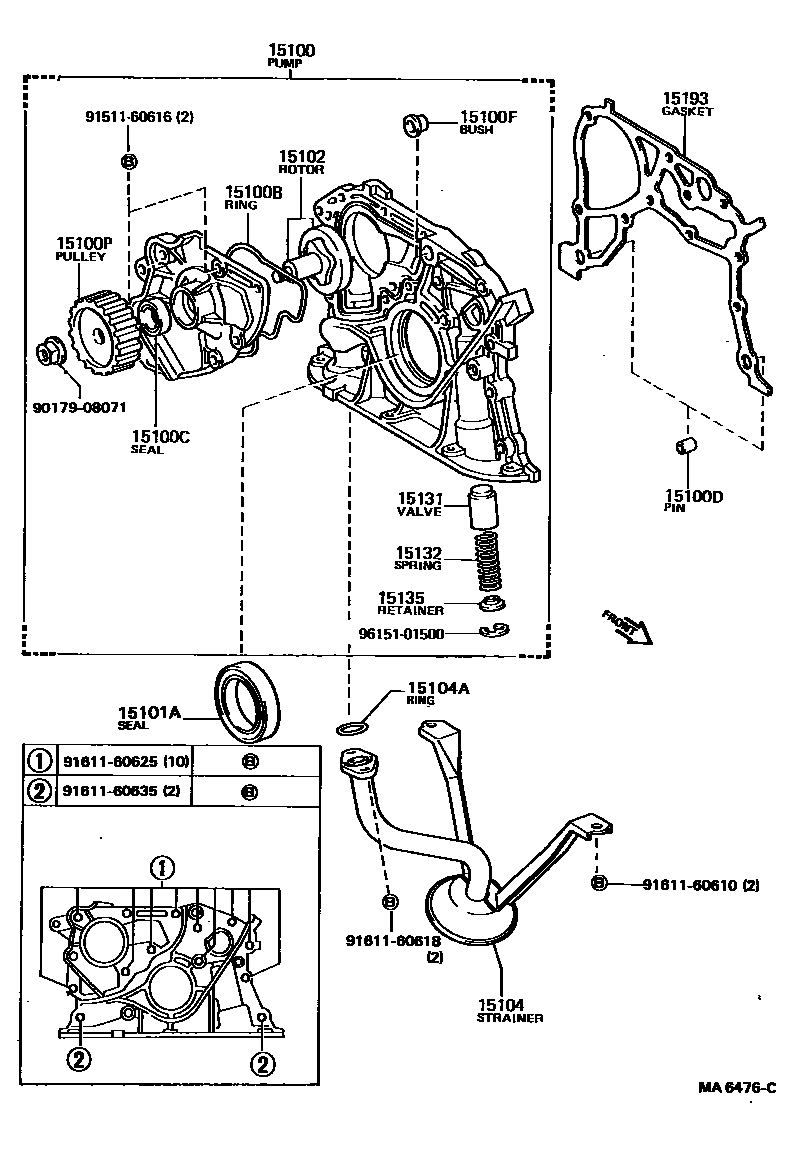

Toyota CAMRY EPC diagram 1501, Engine Oil Pump, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15100 | Oil pump assembly | 15100-63010 · 15100-64020 |
| 15100A | Ring pin (for oil pump assembly) | 90253-11021 |
| 15100B | O-ring (for oil pump) | 15188-63010 |
| 15100C | Seals (for oil pump) | 15165-64010 · 15165-70010 · 90029-21007 |
| 15100D | Pin (for oil pump assembly) | 90253-09001 |
| 15100F | Bushing (for oil pump) | 15186-70010 · 90029-38300 |
| 15100P | Oil pump drive shaft pulley | 13524-63010 · 13524-64010 |
| 15101 | Oil pump body sub-assembly | 15101-64011 |
| 15101A | Seals (for crankshaft) | 90311-42003 · 90311-42015 |
| 15102 | Oil pump rotor assembly | 15102-63010 · 15102-64020 |
| 15104 | Oil filter sub-assembly | 15104-63021 · 15104-64020 · 15104-64021 |
| 15104A | O-ring (for oil filter) | 96721-19020 |
| 15104C | Gasket (for oil filter) | 15149-64010 |
| 15104E | Stud bolts (for oil filter) | 90116-06032 |
| 15131 | Oil pump pressure reducing valve | 15131-24010 · 15131-64020 |
| 15132 | Oil pump pressure reducing valve spring | 15132-40010 · 15132-76011 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-20010 |
| 15134 | Oil pump pressure reducing valve gasket | 15134-20010 |
| 15135 | Oil pump pressure reducing valve retaining ring | 15135-15010 |
| 15193 | oil pump gasket | 15193-64021 · 15197-63010 |
