Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 2 images and 7 PNC and OE references.

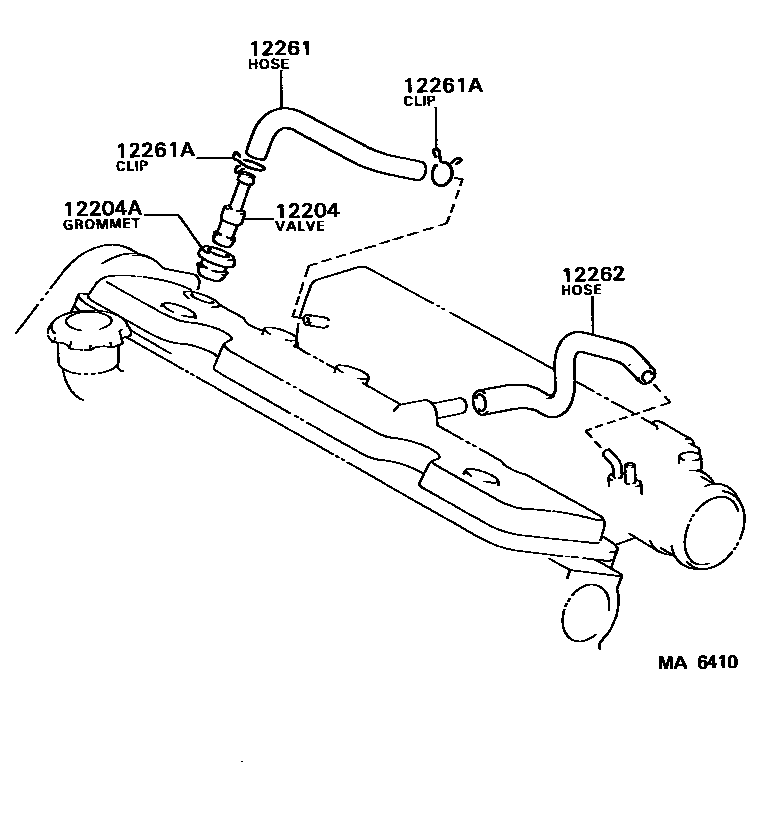

Toyota CAMRY Ventilation Hose EPC diagram — MA6410
Ventilation Hose — MA6410 (198301 – 999999)
Toyota CAMRY Ventilation Hose EPC diagram — MA6892
Ventilation Hose — MA6892 (198308 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-28010 · 12204-63010
12204AGasket (for ventilation system)90480-18001
12221Ventilation duct No. 190407-12002
12222BClip (for ventilation duct)96132-31000
12261Ventilation Hose12261-64040 · 12261-74010
12261AClip or clip (for vent hose)90467-14082 · 90467-15120
12262Ventilation hose No. 212262-74010
