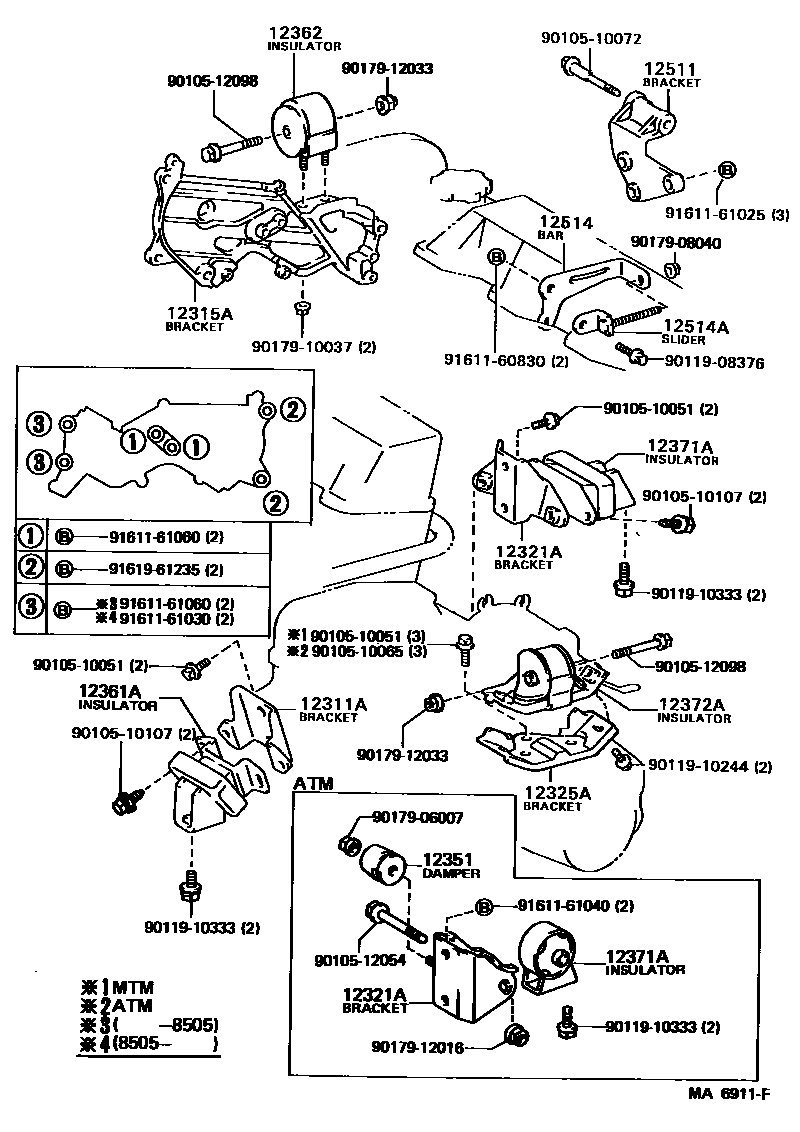

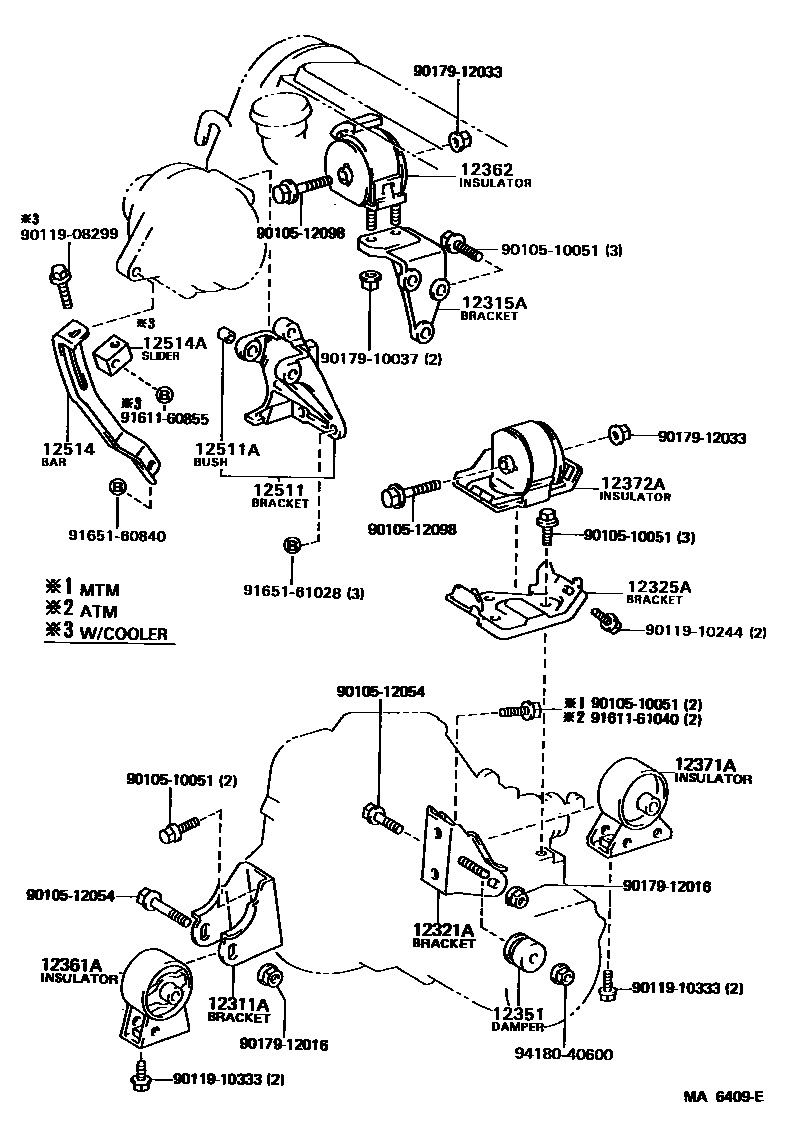

Toyota CAMRY Engine Mounting — Figure 1107
Toyota CAMRY EPC diagram 1107, Engine Mounting, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-63020 · 12311-63031 · 12311-64070 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-63020 · 12315-64030 · 12315-64031 · 12315-74010 · 12315-74030 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-63010 · 12321-63011 · 12321-63020 · 12321-63021 · 12321-64050 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-63010 · 12325-63020 |
| 12351 | engine mount shock absorber | 12351-63010 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-63030 · 12361-63040 · 12361-64040 · 12361-64080 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-63011 · 12362-63020 · 12362-64030 · 12362-64040 |
| 12371A | Engine rear mount vibration isolation pad | 12371-63011 · 12371-63020 · 12371-64030 · 12371-64041 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-63010 · 12372-63011 · 12372-63020 · 12372-63021 · 12372-64010 · 12372-64040 |
| 12511 | No. 1 generator bracket | 12511-63030 · 12511-64020 |
| 12511A | Generator bracket bushing | 90387-10013 |
| 12514 | Generator belt adjustment lever | 12514-63020 · 16381-64020 |
| 12514A | Fan belt adjustment slider | 16385-64011 · 16385-64020 |
