Toyota CAMRY Cylinder Block — Figure 1105

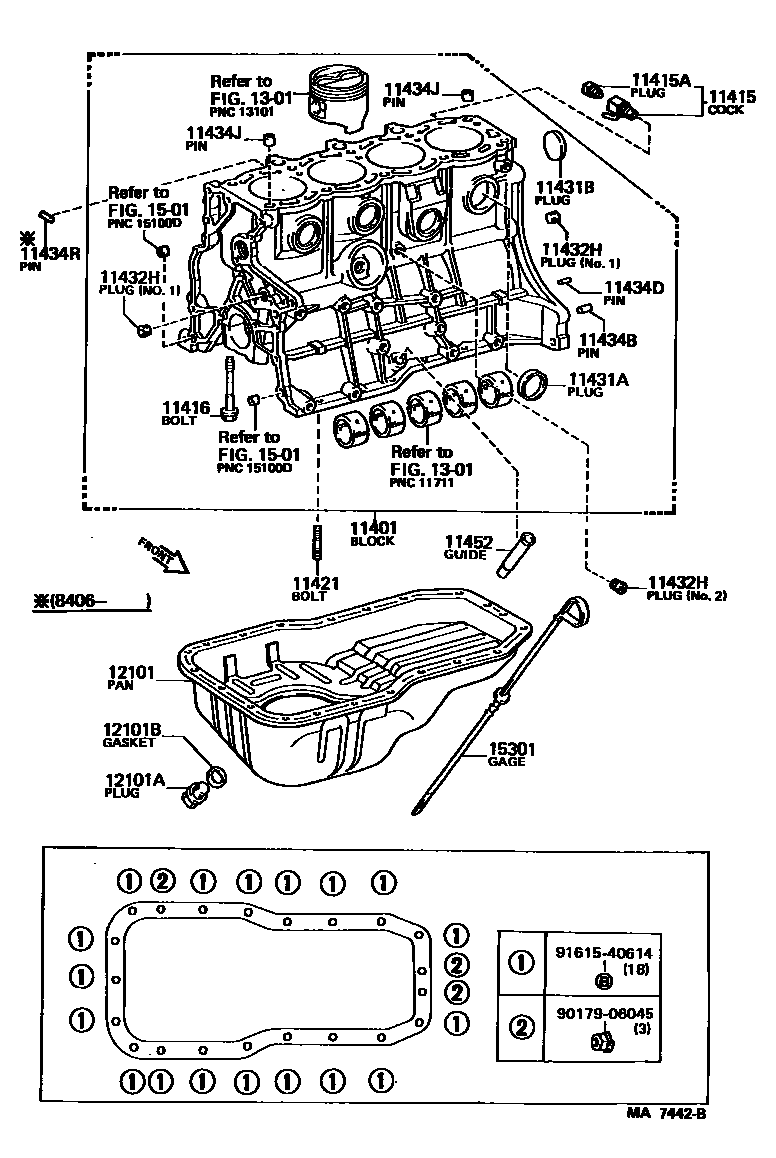

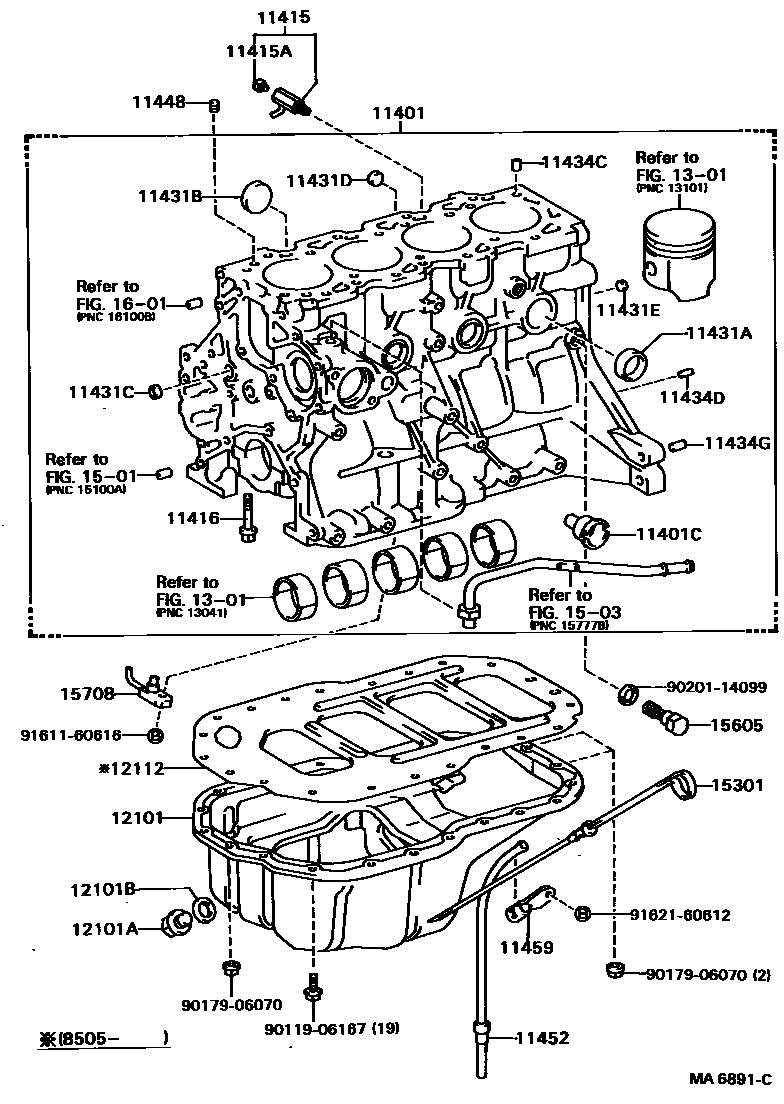

Toyota CAMRY EPC diagram 1105, Cylinder Block, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-69155 · 11401-69245 · 11401-79045 · 11401-79046 |
| 11401C | Flange (for water bypass pipe) | 16353-64010 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09075 · 90910-09076 · 90910-09088 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90109-10023 · 90109-14003 · 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-10028 · 90910-02061 |
| 11421 | Stud bolts (for oil pan) | 90116-06022 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-43500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-43000 · 96411-44000 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-11800 |
| 11431D | No. 4 sealing plug (for cylinder block) | 96411-11800 |
| 11431E | No. 5 sealing plug (for cylinder block) | 96411-11800 |
| 11432H | No. 5 headed tapered thread plug | 90344-52003 · 90344-53008 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90253-14001 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 · 90250-06068 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 |
| 11448 | Cylinder block oil orifice | 11448-54010 |
| 11452 | Engine oil level gauge guide | 11452-63020 · 11452-64030 |
| 11459 | Oil level gauge guide bracket | 90929-01049 |
| 12101 | Oil pan sub-assembly | 12101-63020 · 12101-63021 · 12101-64020 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-18089 |
| 12101B | Gasket (for oil pan drain plug) | 90430-18013 · 90430-18244 |
| 12112 | No. 2 oil pan | 12112-64020 |
| 15301 | Engine oil level scoring assembly | 15301-63020 · 15301-64010 |
| 15605 | Oil check valve sub-assembly | 15605-64010 · 15605-64011 |
| 15708 | No. 1 oil nozzle sub-assembly | 15790-64010 · 15790-64011 |
