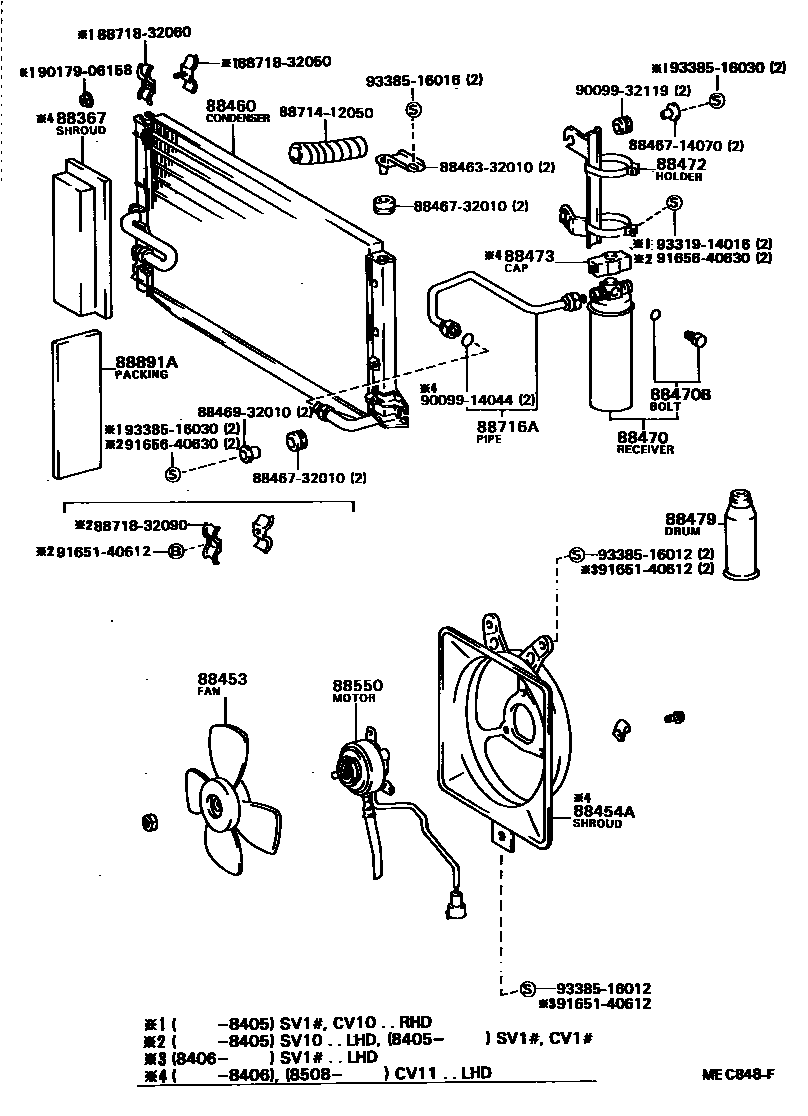

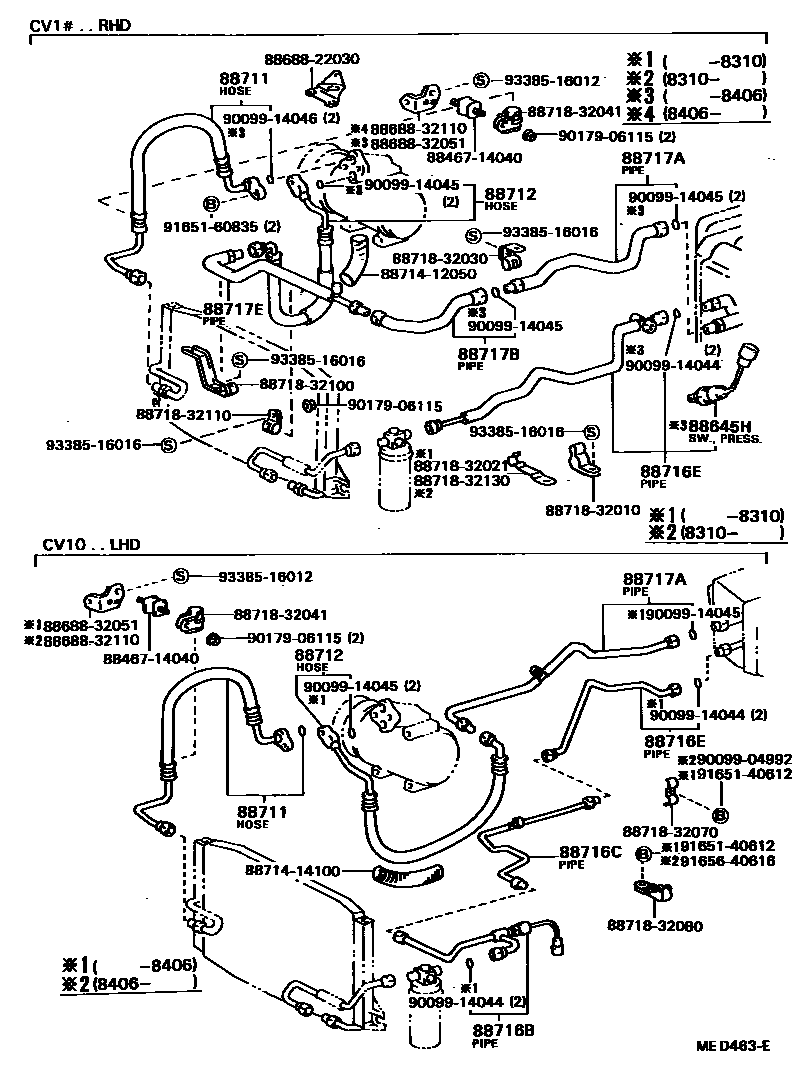

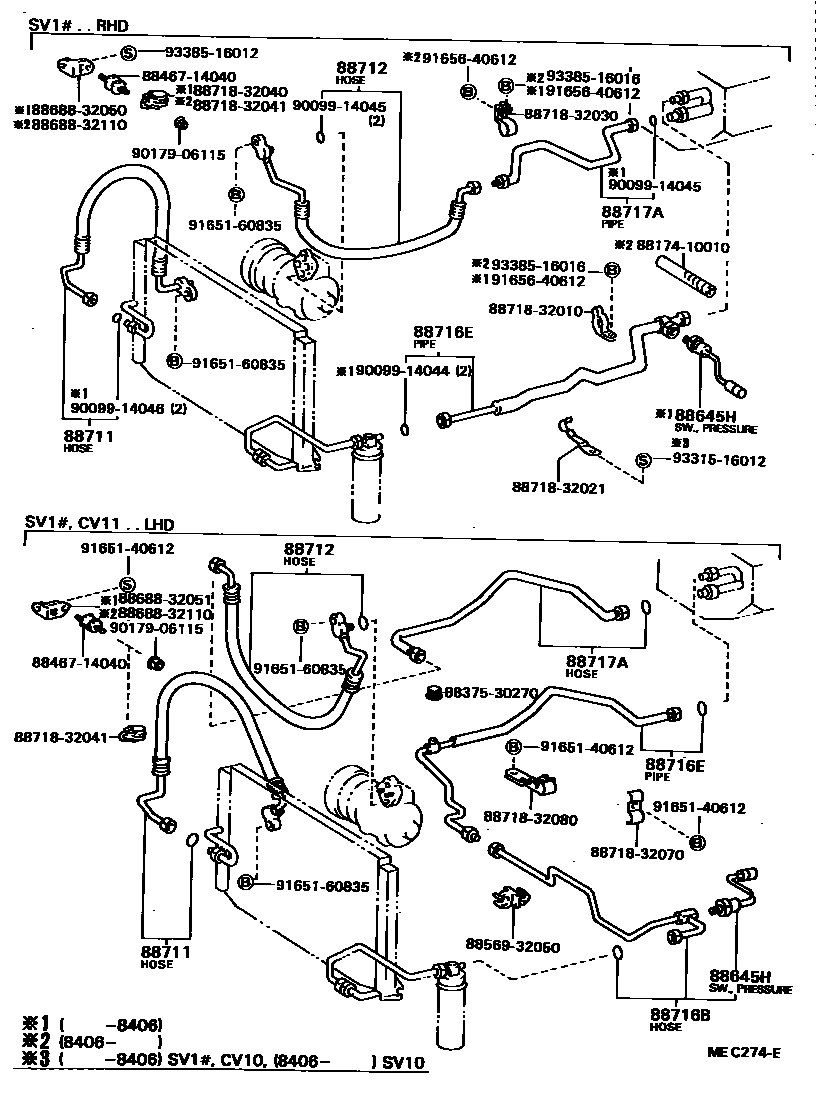

Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88367 | Cooler blower fan cover | 16712-63020 |
| 88453 | Cooling fan (for condenser) | 88453-32010 · 88453-32020 |
| 88454A | fan cover | 16712-64040 · 88454-32020 |
| 88460 | Air conditioning condenser assembly | 88460-32010 · 88460-32040 |
| 88470 | Cooler reservoir and dryer assembly | 88470-12061 · 88470-14010 |
| 88470B | fuse bolt | 88475-12020 |
| 88472 | No. 1 liquid storage tank bracket | 88473-32010 |
| 88473 | Cooler reservoir cap | 88894-12111 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02001 |
| 88550 | Blower motor assembly (for condenser) | 16363-64020 · 88550-32010 · 88550-32020 |
| 88645H | No. 1 pressure switch | 88645-32010 · 88645-32030 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-32010 · 88711-32030 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-32020 · 88712-32030 · 88712-32060 · 88712-32080 · 88712-32090 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-32120 · 88716-32150 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-32050 · 88716-32080 · 88716-32180 · 88716-32210 |
| 88716C | Cooler refrigerant liquid pipe C | 88716-32060 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-32070 · 88716-32100 · 88716-32110 · 88716-32170 · 88716-32171 · 88716-32190 · 88716-32200 |
| 88717A | Cooler refrigerant suction pipe A | 88717-32020 · 88717-32030 · 88717-32080 · 88717-32120 |
| 88717B | Cooler refrigerant suction pipe B | 88717-32100 |
| 88717E | Cooler refrigerant suction pipe E | 88717-32050 |
| 88891A | Seal A (for cooler) | 88578-32020 |
