Toyota CAMRY 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

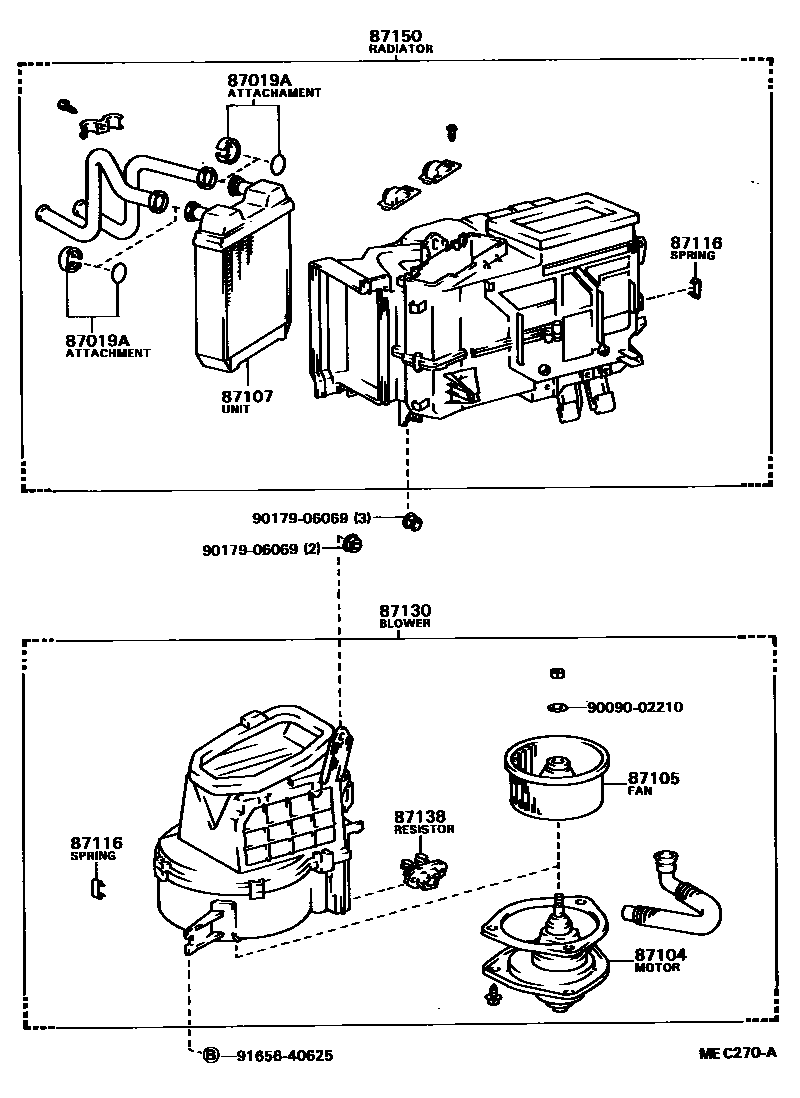

Toyota CAMRY EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87019A | heater connection | 87019-32010 |
| 87104 | Heater blower motor sub-assembly | 87104-32010 · 87104-32020 · 87104-32030 |
| 87105 | Heater blower fan sub-assembly | 87105-14030 · 87105-20090 · 87105-22060 |
| 87107 | Heater radiator device sub-assembly | 87107-32010 · 87107-32020 · 87107-32030 · 87107-32040 · 87107-89110 |
| 87116 | Heater shell fastening spring | 87116-14010 |
| 87130 | Front heater blower assembly | 87130-32010 · 87130-32020 · 87130-32040 |
| 87138 | Heater Blower Resistor | 87138-32010 · 87138-32020 |
| 87150 | Heater radiator assembly | 87150-32011 · 87150-32020 · 87150-32030 · 87150-32040 · 87150-32050 · 87150-32051 |
