Toyota CAMRY 后视镜 — Figure 8701

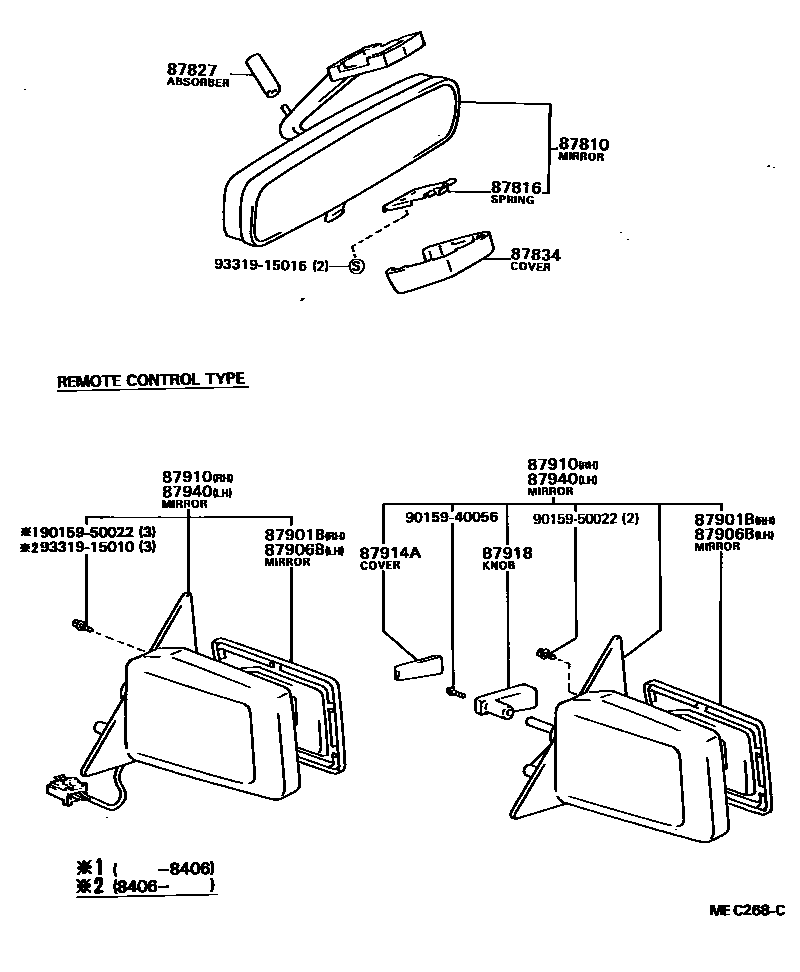

Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-30030 · 74372-32010 |
| 87827 | Interior rearview mirror shock absorber | 87828-30010 · 87828-32010 |
| 87901B | Right exterior rearview mirror sub-assembly | 87908-32020 · 87908-32030 · 87908-32040 · 87908-32090 · 87908-32100 |
| 87906B | Left exterior rearview mirror sub-assembly | 87909-32020 · 87909-32030 · 87909-32040 · 87909-32080 · 87909-32090 |
| 87910 | Right exterior rearview mirror assembly | 87910-32030 · 87910-32031 · 87910-32032 · 87910-32040 · 87910-32041 · 87910-32042 · 87910-32070 · 87910-32071 · 87910-32080 · 87910-32081 · 87910-39355 · 87910-39365 · 87910-39385 |
| 87914A | Exterior rearview mirror button cover | 87914-16010 |
| 87918 | Exterior rearview mirror control handle | 87918-14050 |
| 87940 | Left exterior rearview mirror assembly | 87940-32030 · 87940-32031 · 87940-32032 · 87940-32040 · 87940-32041 · 87940-32042 · 87940-32070 · 87940-32071 · 87940-32080 · 87940-32081 · 87940-39305 · 87940-39335 · 87940-39345 |
