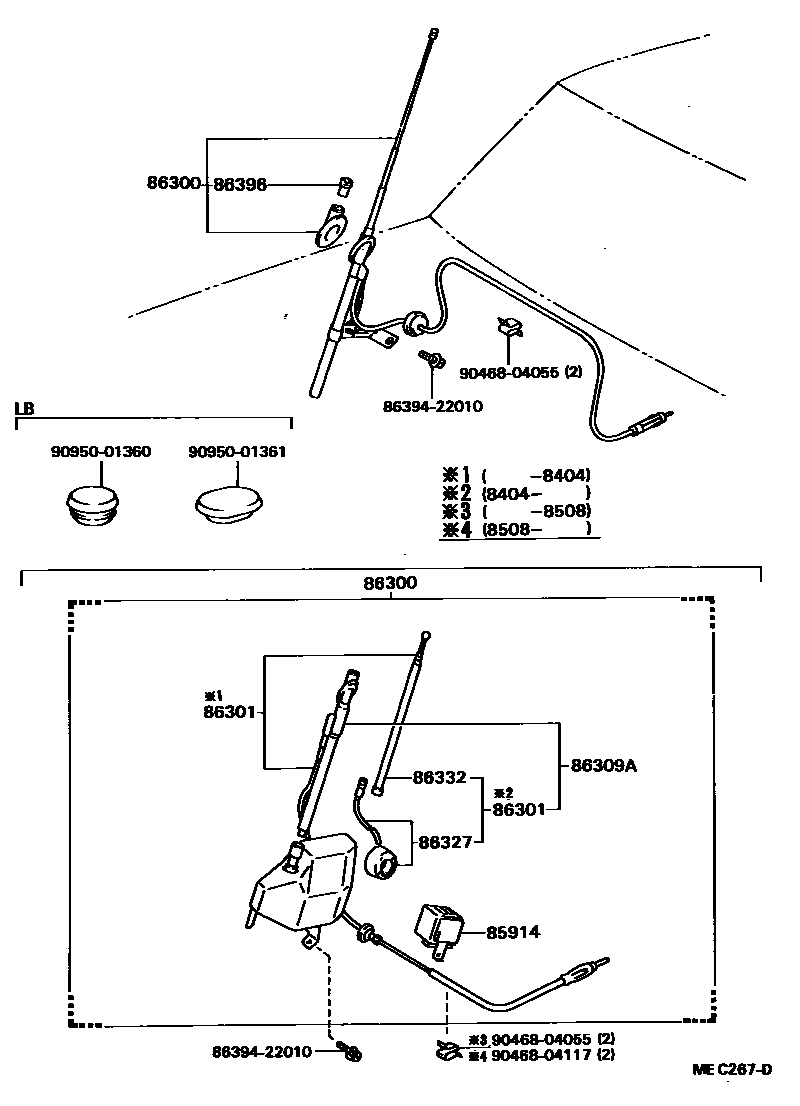

Toyota CAMRY antenna — Figure 8604
Toyota CAMRY EPC diagram 8604, antenna, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85914 | Electric antenna control relay | 85914-14010 · 85914-14020 |
| 86300 | Antenna assembly with fixing parts | 86300-32030 · 86300-32060 |
| 86301 | Antenna sub-assembly | 86301-32060 · 86353-14330 |
| 86309A | Electric antenna sub-assembly | 86309-32030 |
| 86327 | Cable with antenna drum | 86327-22210 |
| 86332 | antenna mast | 86332-14321 |
| 86396 | Antenna nut | 86396-16020 |
