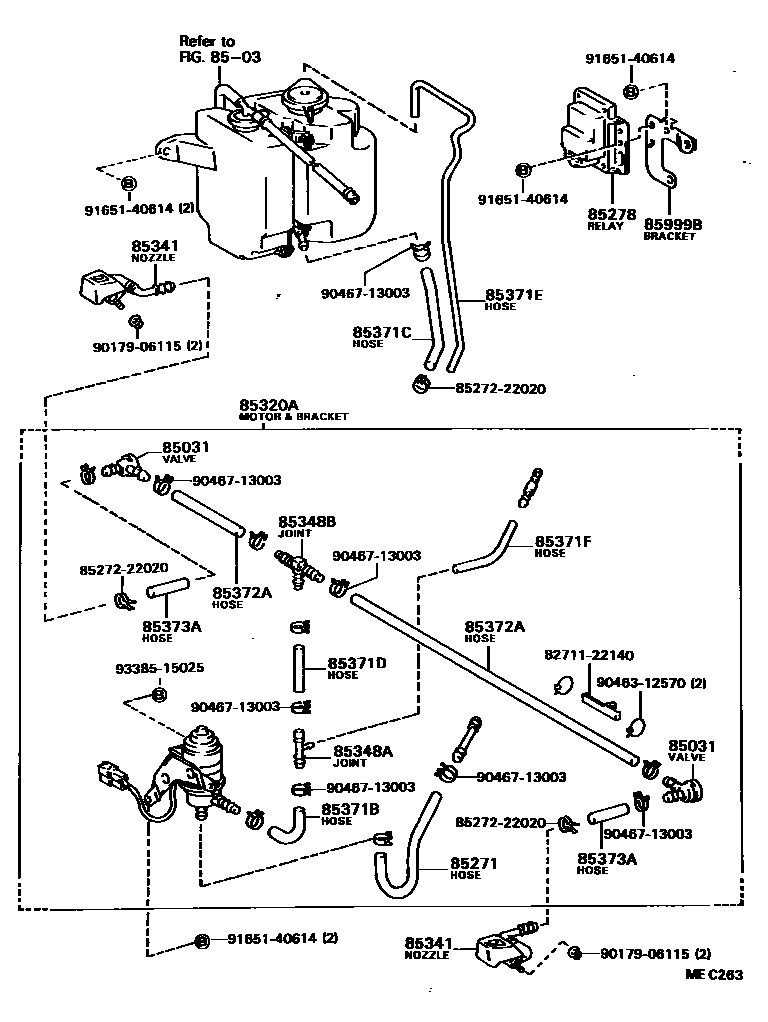

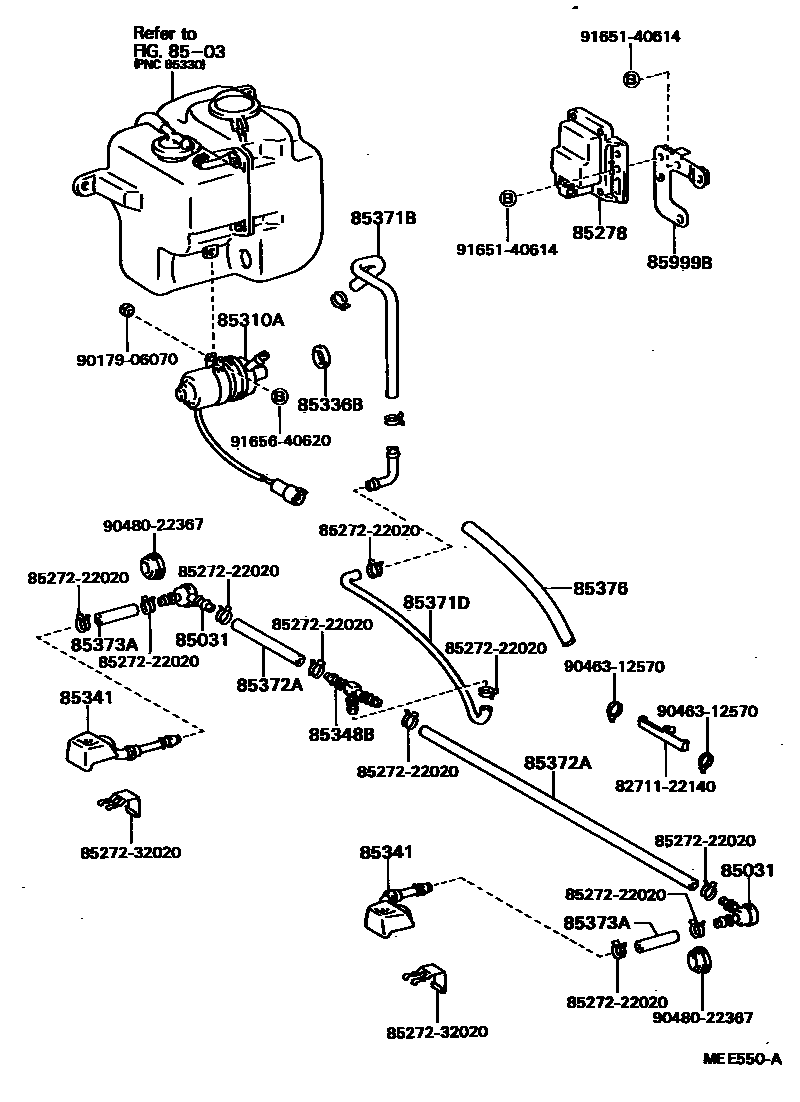

Toyota CAMRY 前大灯清洗器 — Figure 8505
Toyota CAMRY EPC diagram 8505, 前大灯清洗器, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031 | Headlight washer hose valve | 85031-30020 |
| 85271 | No. 1 headlight washer hose | 85375-32010 |
| 85278 | Headlight washer control relay assembly | 85276-14040 · 85276-20020 |
| 85310A | Headlight washer motor and pump assembly | 85310-22100 |
| 85320A | Headlight washer motor and bracket assembly | 85320-32010 |
| 85336B | Headlight washer seal | 85336-10010 |
| 85341 | Headlight washer nozzle | 85044-32010 · 85044-32011 · 85044-32020 · 85045-32010 · 85045-32011 · 85045-32020 |
| 85348A | Headlight washer hose connector No. 1 | 85352-20010 |
| 85348B | No. 2 headlight washer hose connector | 85352-12010 |
| 85371B | Headlight washer hose (from motor to connector) | 85271-20020 · 85375-32091 |
| 85371C | No. 1 headlight washer hose | 85343-32010 · 85343-32090 |
| 85371D | No. 2 headlight washer hose | 85271-22060 · 90445-14071 |
| 85371E | No. 3 headlight washer hose | 90446-07004 |
| 85371F | No. 4 headlight washer hose | 85376-32010 |
| 85372A | Headlight washer hose (from fitting to fitting or nozzle) | 90445-14048 · 90445-14060 |
| 85373A | Headlight washer hose (from connector to nozzle) | 85376-14301 · 90445-14071 |
| 85376 | No. 1 headlight washer hose protection device | 85376-22140 |
| 85999B | Headlight washer relay bracket | 85999-32040 |
