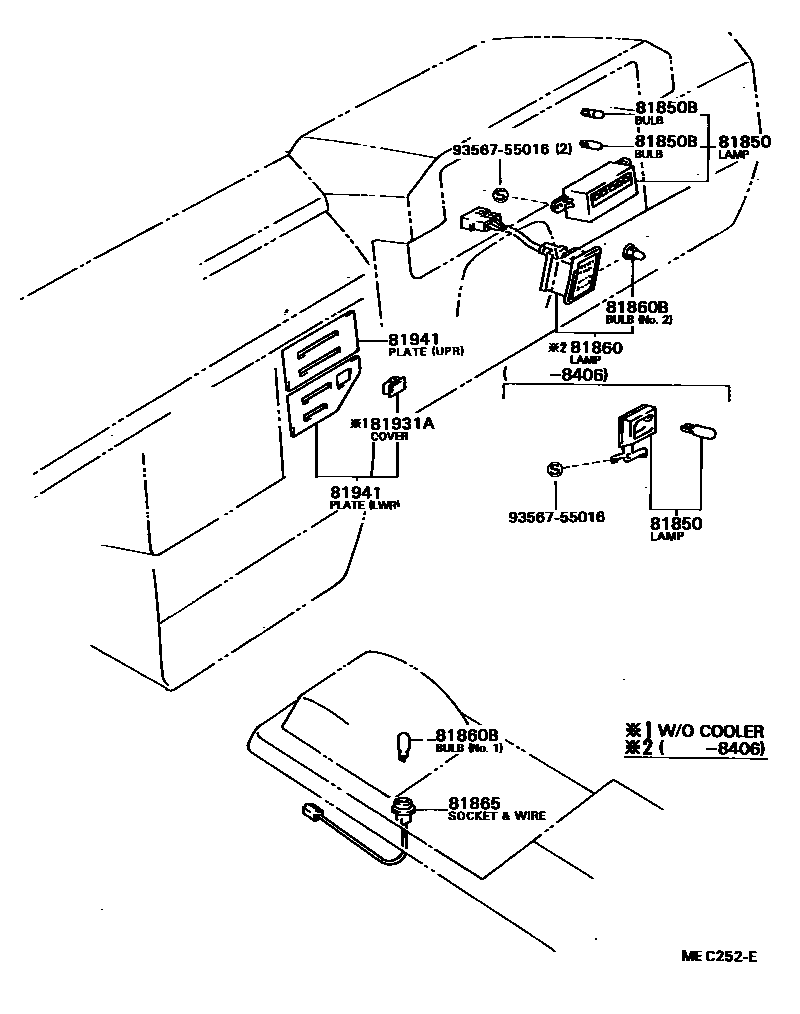

Toyota CAMRY indicator light — Figure 8302
Toyota CAMRY EPC diagram 8302, indicator light, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81850 | Indicator light assembly | 81850-32010 · 81850-32020 · 81850-32040 |
| 81850B | pilot light bulb | 84999-20020 · 84999-20040 |
| 81860 | Transmission indicator light assembly | 81860-32010 |
| 81860B | Transmission indicator light bulb | 84999-10110 · 99132-12034 |
| 81865 | Transmission indicator light holder and wiring harness | 35906-32010 · 35906-32030 |
| 81931A | Cooler switch hole cover | 55538-32010 |
| 81941 | Heater controller nameplate | 55519-32010 · 55519-32011 · 55519-32020 · 55519-32021 · 55519-32050 · 55519-32051 · 55519-32060 · 55519-32061 · 55519-32070 · 55519-32071 |
