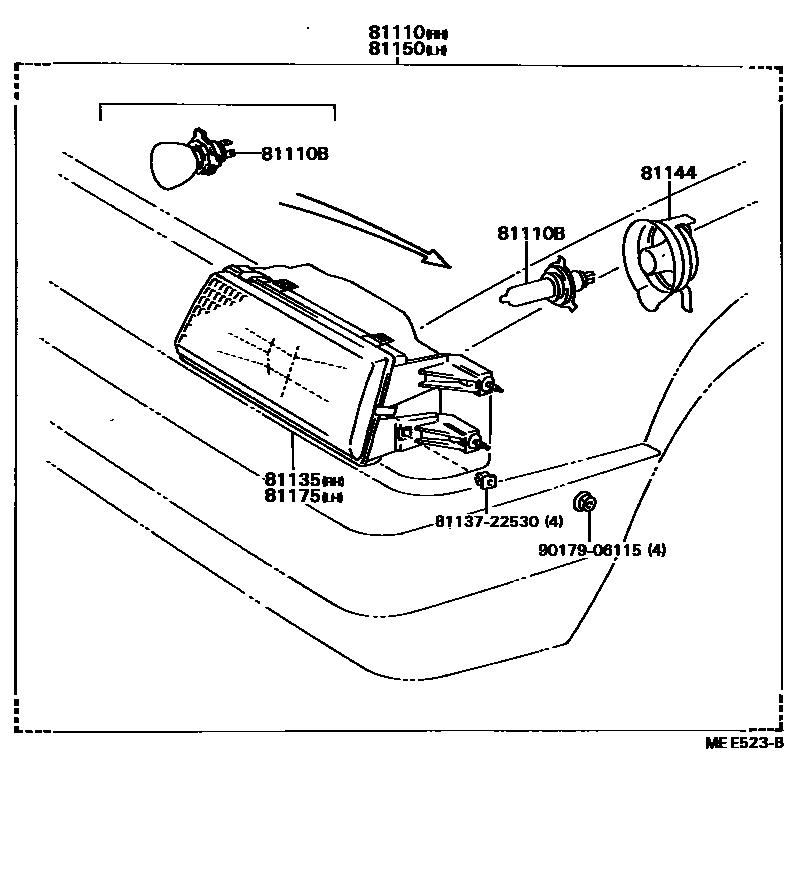

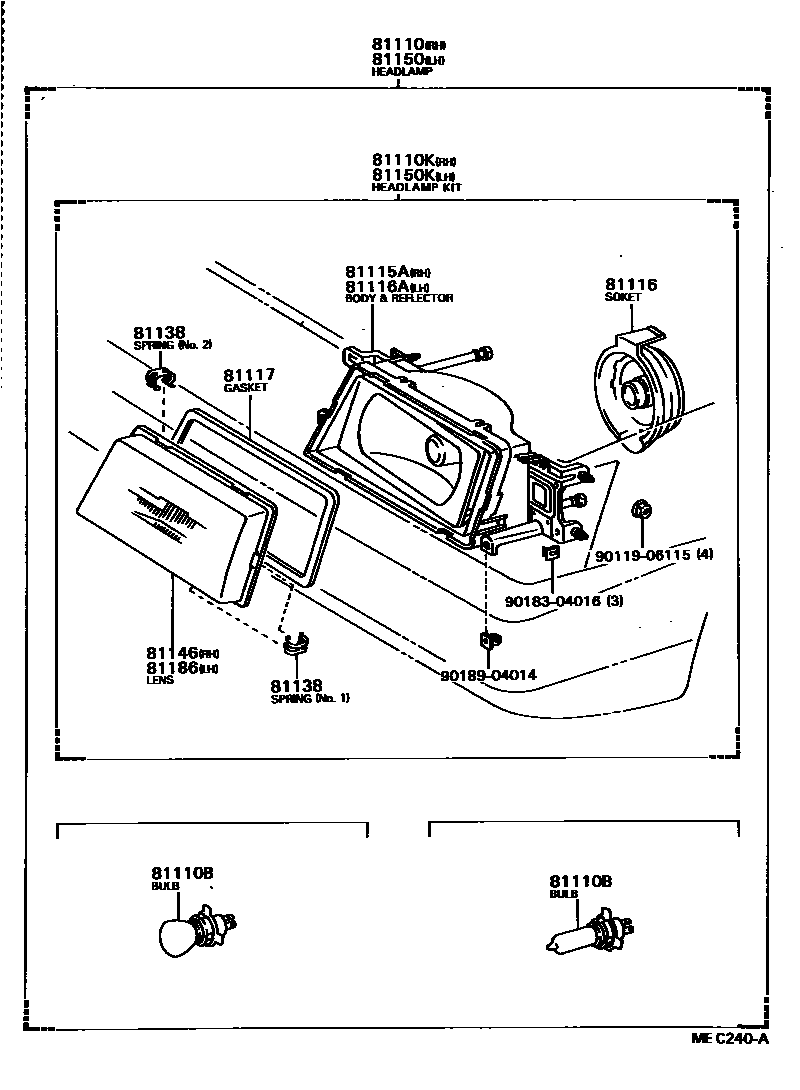

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-80242 · 81110-80243 · 81110-80244 · 81110-80245 · 81110-80396 · 81110-80397 · 81110-80398 · 81110-80399 |
| 81110B | Bulb (for headlight No. 1) | 90981-13013 · 90981-13015 · 90981-13016 |
| 81110K | Right headlight assembly (without closed headlight) | 04817-32010 · 04817-32020 |
| 81115A | Right headlight body and reflector sub-assembly | 81135-32080 · 81135-32090 · 81135-32100 |
| 81116 | Enclosed headlight assembly cover | 81139-30490 |
| 81116A | Left headlight body and reflector sub-assembly | 81175-32080 · 81175-32090 · 81175-32100 |
| 81117 | Headlight housing seal | 81147-16180 |
| 81135 | Right headlight assembly | 81135-32081 · 81135-32091 · 81135-32101 · 81135-32111 |
| 81138 | headlight spring | 81138-20550 · 81138-32080 |
| 81144 | No. 1 headlight cover | 81139-20730 · 81139-20810 |
| 81146 | Right headlight lampshade | 81146-16170 · 81146-16180 · 81146-16200 |
| 81150 | Left headlight assembly | 81150-80239 · 81150-80240 · 81150-80241 · 81150-80242 · 81150-80388 · 81150-80389 · 81150-80390 · 81150-80391 |
| 81150K | Left headlight assembly (without closed headlight) | 04818-32010 · 04818-32020 |
| 81175 | Left headlight assembly | 81175-32081 · 81175-32091 · 81175-32101 · 81175-32111 |
| 81186 | Left headlight lampshade | 81186-16170 · 81186-16180 · 81186-16200 |
