Toyota CAMRY 燃油箱和燃油管 — Figure 7701

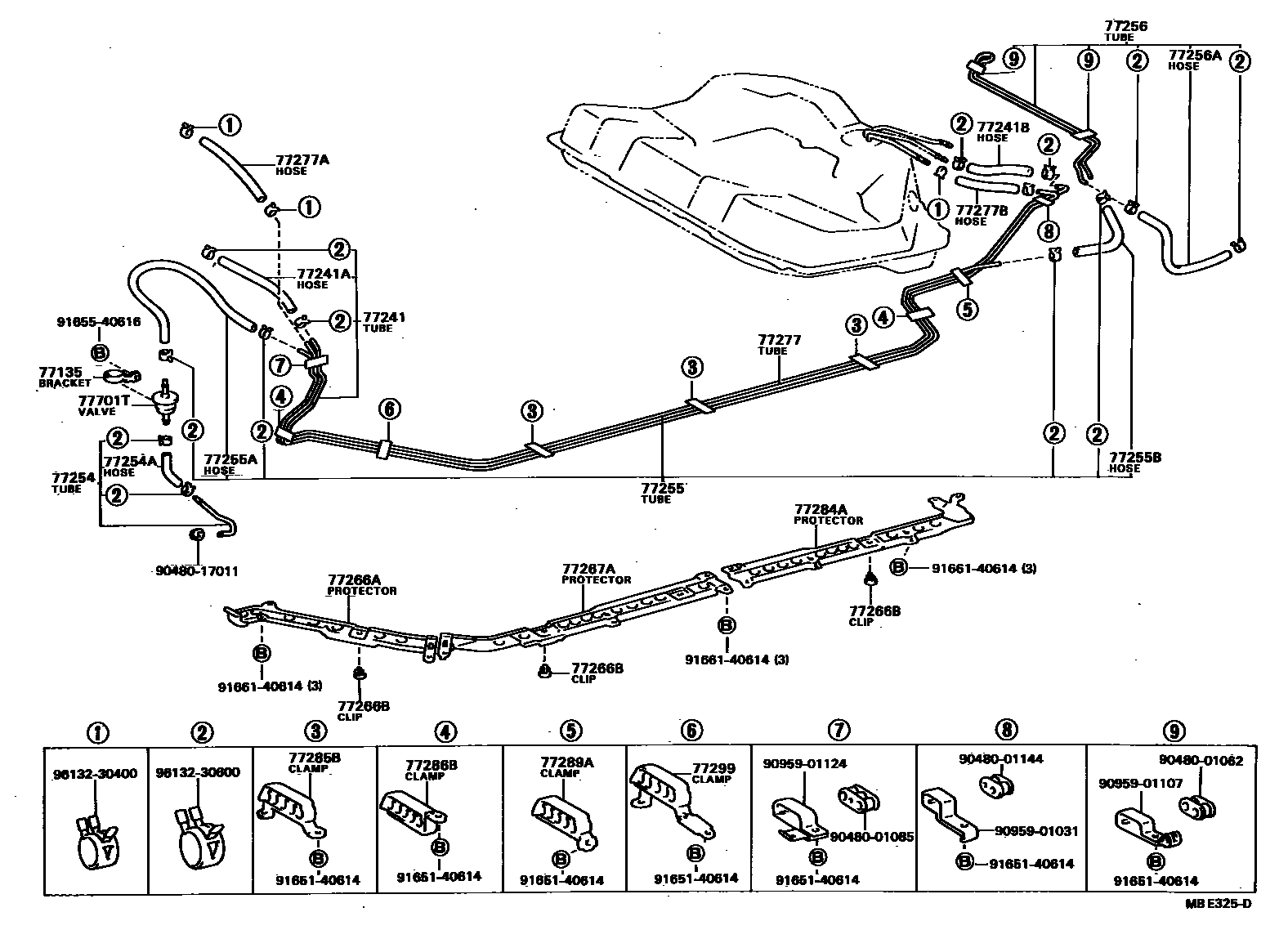

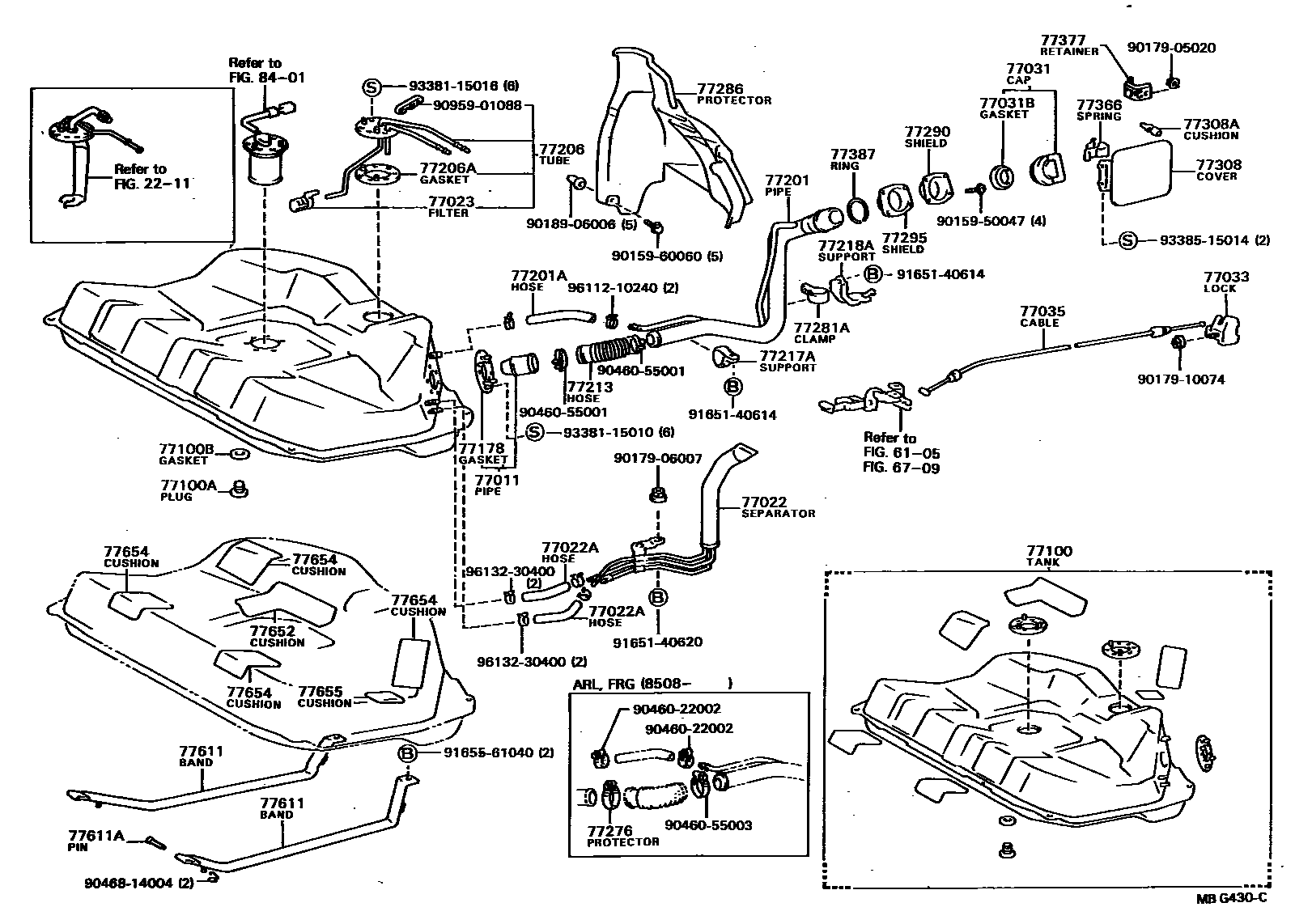

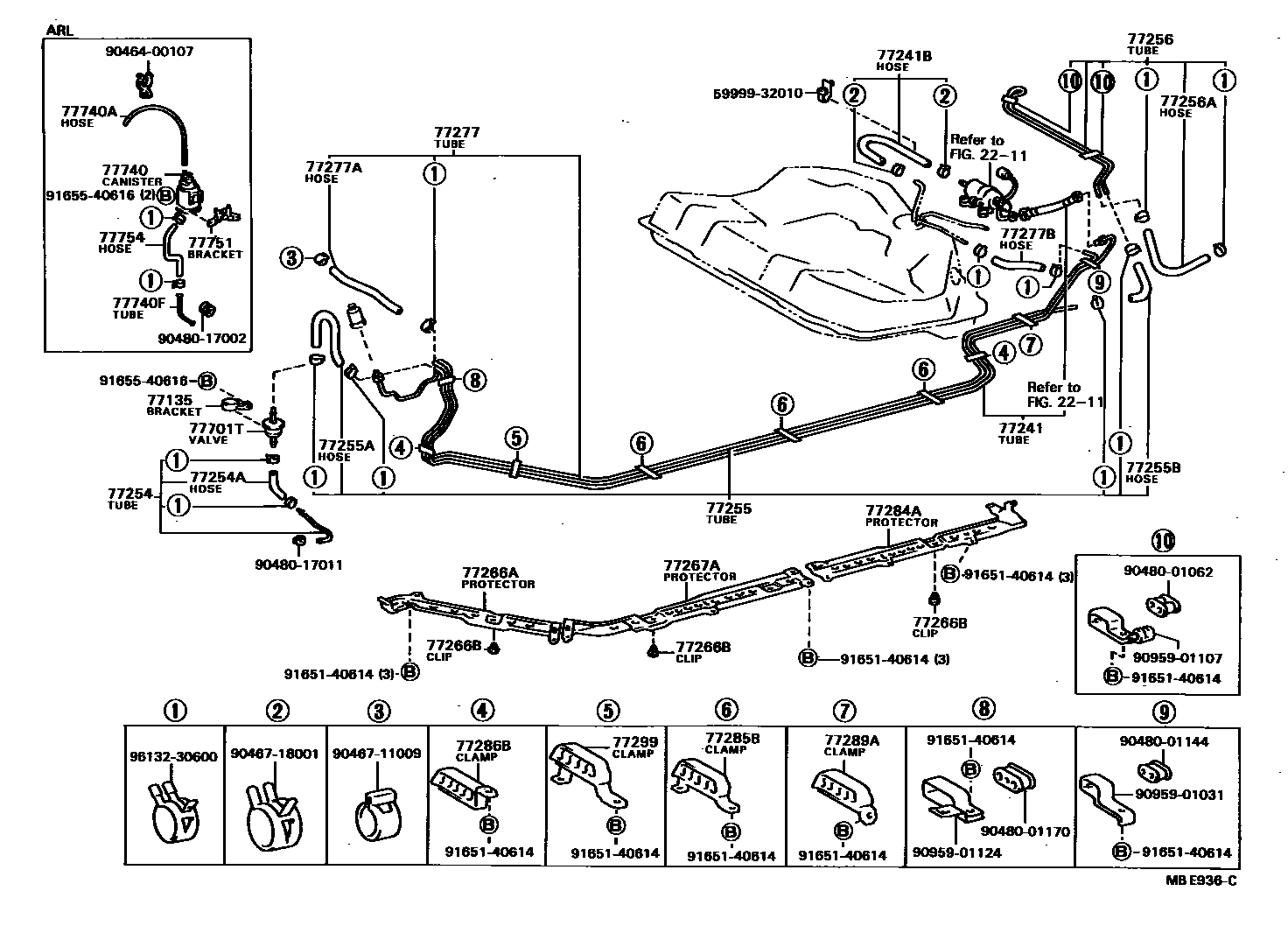

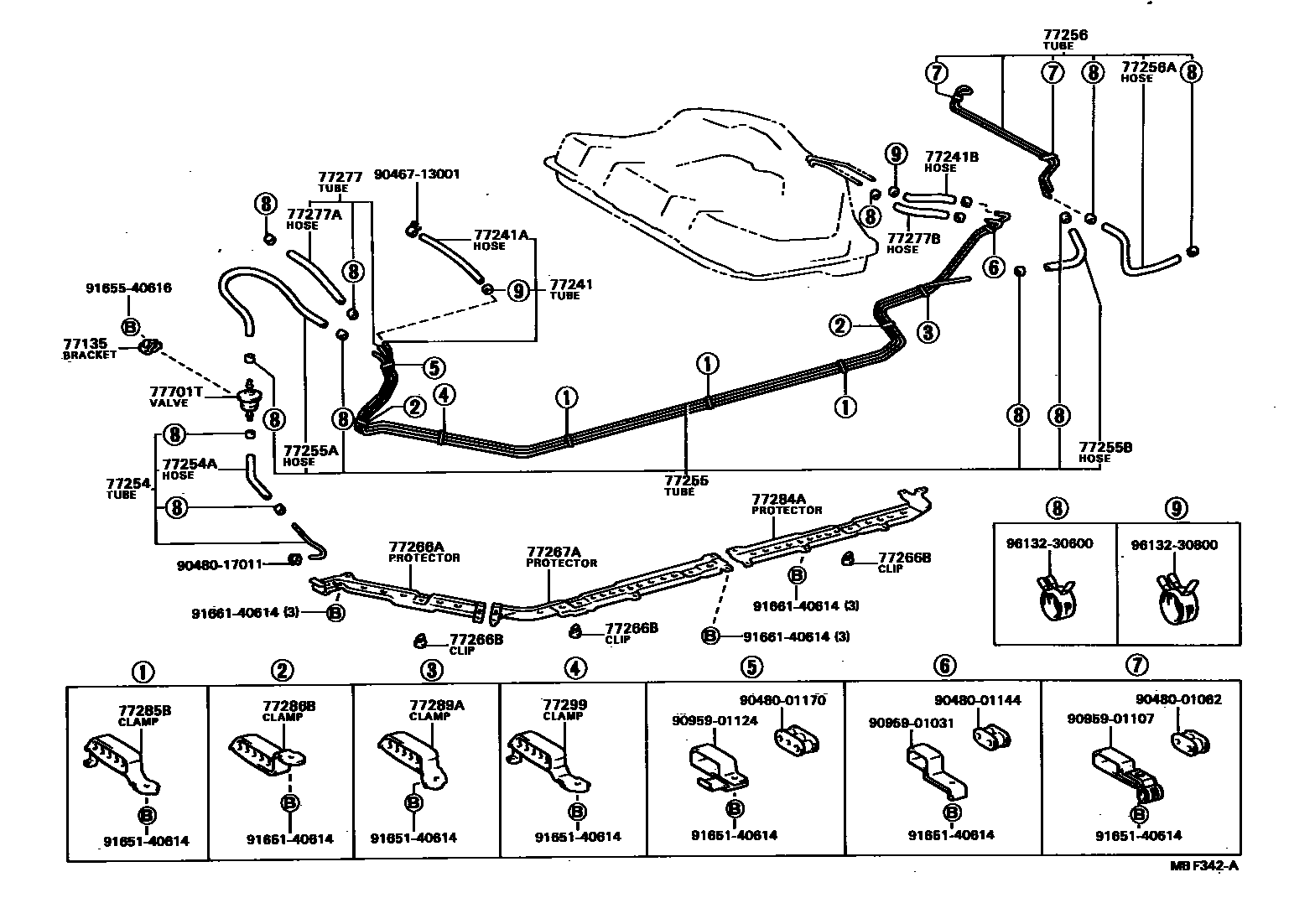

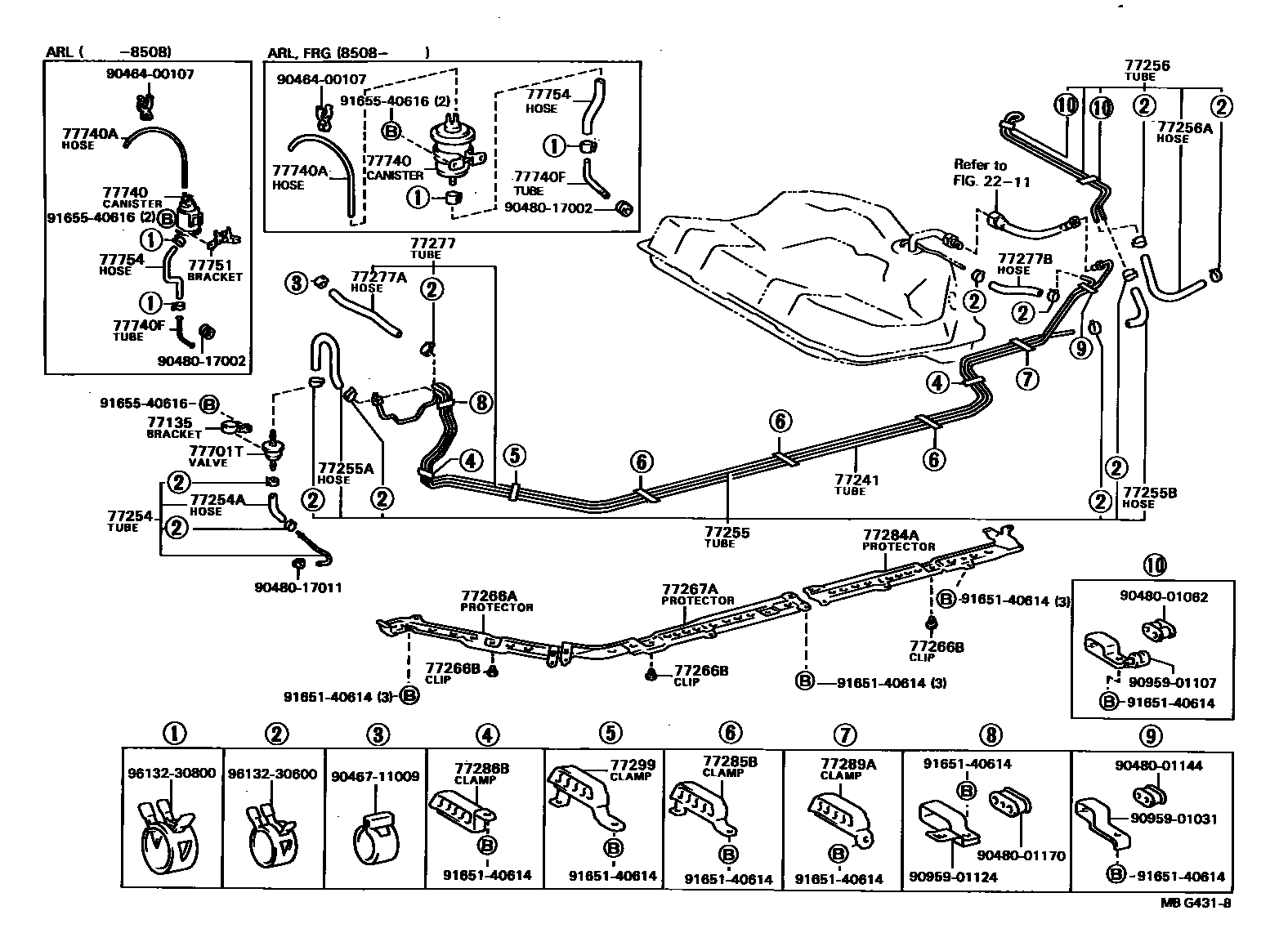

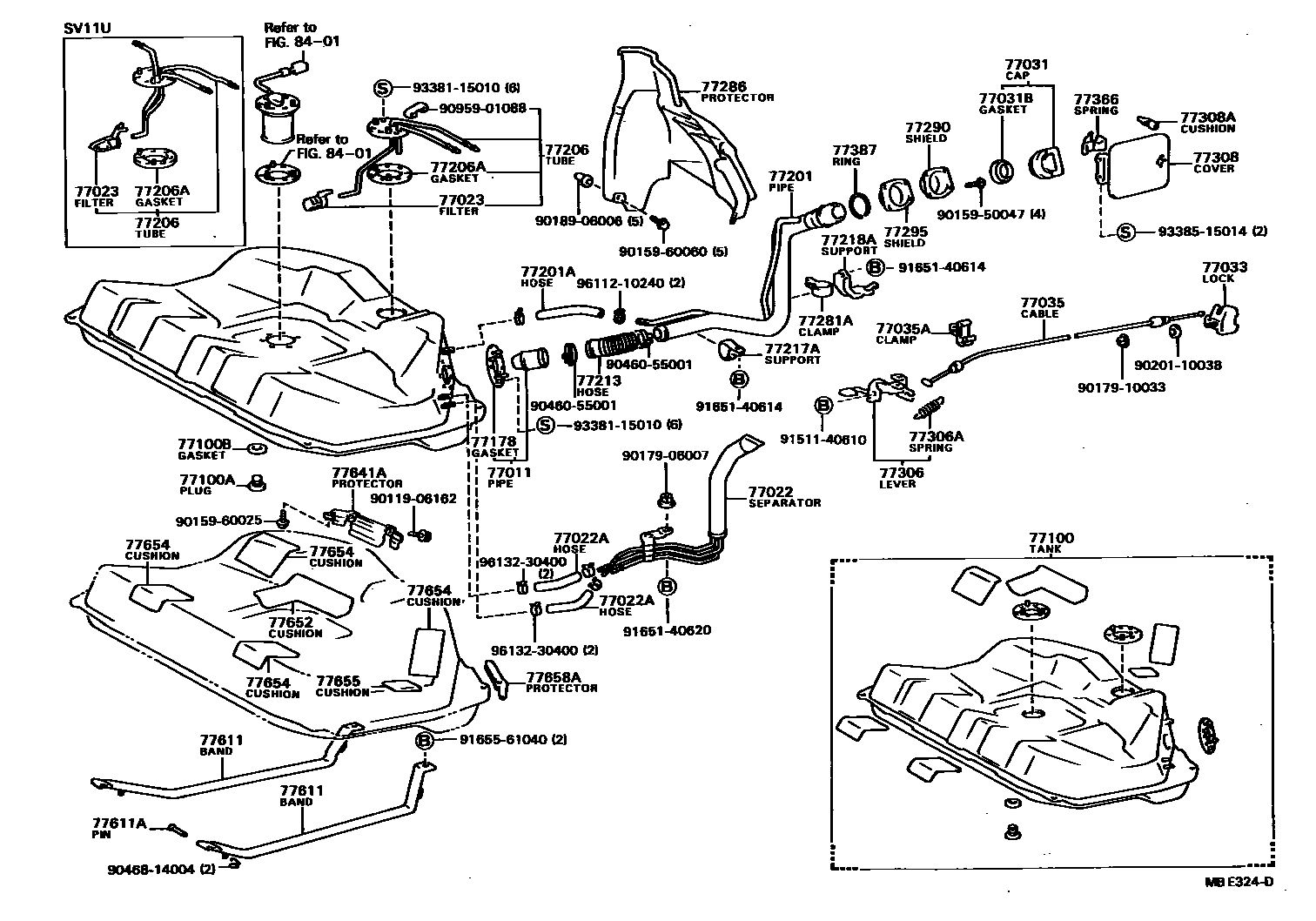

Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 6 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-16030 · 77011-32010 |
| 77022 | Fuel vapor separator sub-assembly | 77022-32011 |
| 77022A | Fuel hose (for fuel vapor separator) | 95333-04022 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-12050 · 77023-22040 · 77023-30010 · 77023-32010 |
| 77031 | Fuel tank cap assembly | 77310-12100 · 77310-16010 · 77310-35061 |
| 77031B | Gasket (for fuel tank cap) | 77316-12050 · 77316-16010 |
| 77033 | Fuel tank cap lock sub-assembly | 77037-12040 · 77037-24010 · 77037-32010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-32010 · 77035-32030 |
| 77035A | Clip (for fuel filler cap lock control cable) | 69749-12010 |
| 77100 | fuel tank assembly | 77001-39115 · 77001-39135 · 77001-39205 |
| 77100A | Screw plug (for fuel tank) | 90341-20003 |
| 77100B | Gasket (for fuel tank) | 90430-20006 |
| 77135 | One-way valve bracket | 77135-32010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-13020 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-32010 · 77201-32020 |
| 77201A | No. 1 fuel hose (for fuel tank inlet pipe) | 90445-22011 · 90445-22016 · 90445-22021 |
| 77206 | Fuel tank suction pipe sub-assembly | 77017-20030 · 77017-32011 · 77017-32021 · 77017-32022 · 77017-32030 |
| 77206A | Gasket (for fuel tank suction pipe) | 77169-32010 |
| 77213 | Fuel tank auxiliary fuel inlet hose | 77213-32010 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-32010 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-32010 |
| 77241 | No. 1 main fuel pipe | 77205-32010 · 77205-32020 · 77205-32030 · 77205-32031 · 77205-32040 · 77205-32041 · 77251-32010 · 77251-32040 · 77251-32050 · 77251-32060 |
| 77241A | No. 1 fuel hose (for No. 1 main fuel line) | 77259-32010 |
| 77241B | No. 2 fuel hose (for No. 1 main fuel line) | 77409-32010 · 95333-06019 |
| 77254 | No. 1 fuel evaporation exhaust pipe | 77264-32020 |
| 77254A | No. 1 fuel hose (for No. 1 drain pipe) | 95332-06010 |
| 77255 | No. 2 fuel evaporation exhaust pipe | 77019-32010 · 77019-32030 · 77019-32040 · 77019-32041 · 77019-32050 |
| 77256 | No. 3 fuel evaporation exhaust pipe | 77028-32020 |
| 77266A | No. 1 fuel line protection device | 77266-32010 |
| 77267A | No. 2 fuel pipe protection device | 77267-32010 |
| 77276 | Fuel hose protector | 77606-32010 |
| 77277 | No. 1 fuel return pipe | 77207-32010 · 77207-32020 · 77255-32010 · 77255-32020 · 77255-32030 · 77255-32040 · 77255-32050 · 77255-32060 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 23271-64050 · 23273-63010 · 23273-64020 |
| 77277B | No. 2 fuel hose (for No. 1 return pipe) | 95333-04022 |
| 77281A | Fuel filler pipe clamp | 77281-32010 |
| 77284A | No. 3 fuel pipe protection device | 77284-32010 |
| 77285B | No. 1 fuel pipe clamp with retaining ring | 77285-32010 · 77285-32020 |
| 77286 | Fuel tank inlet pipe protection device | 77277-32010 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77286-32010 · 77286-32020 |
| 77289A | No. 3 fuel pipe clamp with retaining ring | 77289-32010 · 77289-32020 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-32010 |
| 77295 | Fuel filler pipe cover | 77293-32010 |
| 77299 | No. 5 fuel pipe clamp with retaining ring | 77299-32010 · 77299-32020 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-32010 · 77306-32020 |
| 77306A | Fuel filler cap opening lever spring | 90506-09004 |
| 77308 | Fuel inlet cap sub-assembly | 77350-32010 · 77350-32020 |
| 77308A | Cushion (for fuel inlet cap) | 90541-05009 · 90541-05013 |
| 77366 | Fuel filler cap hinge spring | 77360-24010 |
| 77377 | Fuel filler cap lock retainer | 77377-24010 |
| 77387 | fuel inlet ring | 77391-32010 |
| 77611 | fuel tank strap | 77601-32010 · 77601-32020 · 77601-32030 · 77602-32010 · 77602-32020 |
| 77611A | Pin (for fuel tank strap) | 90240-08020 |
| 77641A | No. 1 fuel tank protective shell | 77641-32010 |
| 77652 | No. 1 fuel tank liner | 77651-32020 |
| 77654 | No. 2 fuel tank liner | 77652-32010 |
| 77655 | No. 3 fuel tank liner | 77652-14060 |
| 77658A | No. 1 fuel tank edge protective shell | 77658-32010 |
| 77701T | Check valve (for main fuel tank) | 90917-10020 |
| 77740 | Carbon canister assembly | 77704-32010 · 77740-32020 |
| 77740F | No. 1 fuel pipe (for charcoal canister) | 77264-32010 |
| 77751 | Carbon canister base bracket | 77751-32010 |
| 77754 | No. 1 carbon canister outlet hose | 77754-32010 |
