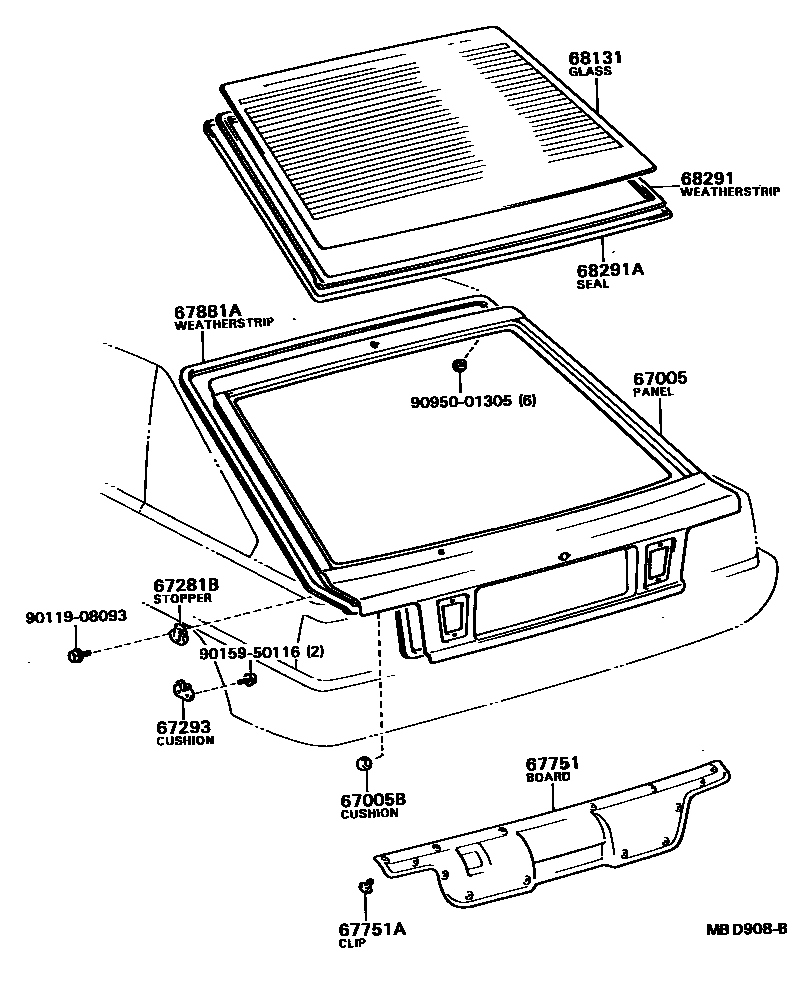

Toyota CAMRY 背门板和背门玻璃 — Figure 6708
Toyota CAMRY EPC diagram 6708, 背门板和背门玻璃, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67005 | Rear door panel sub-assembly | 67005-32030 · 67005-32040 · 67005-32090 · 67005-32100 · 67005-32130 · 67005-32140 |
| 67005B | Cushion pad (for back door panel) | 90541-09041 |
| 67281B | Back door lower block | 67281-32010 |
| 67293 | Back door lower block cushion | 67293-32010 |
| 67881A | Back door seal | 67881-32010 |
| 68131 | back door glass | 68131-32010 · 68131-32040 · 68131-32050 · 68131-32060 |
| 68291 | Rear door glass seal strip | 68291-32010 |
| 68291A | Back window glass seal | 64814-32020 |
