Toyota CAMRY 后门板和后门玻璃 — Figure 6705

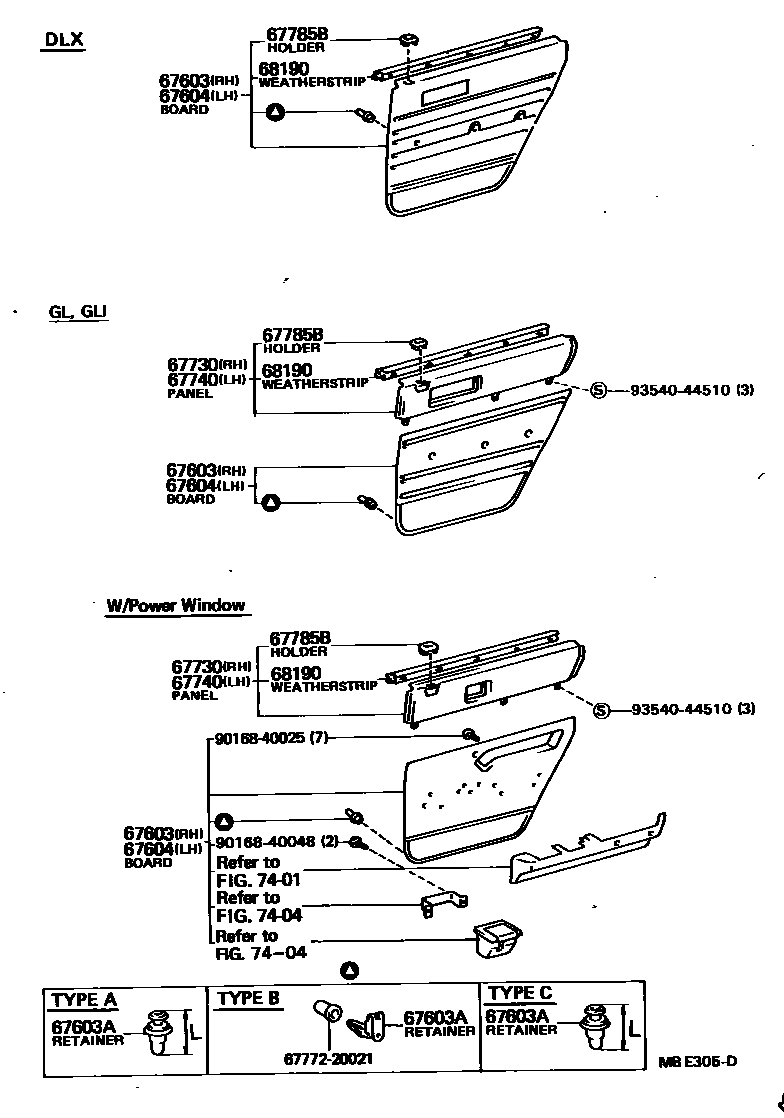

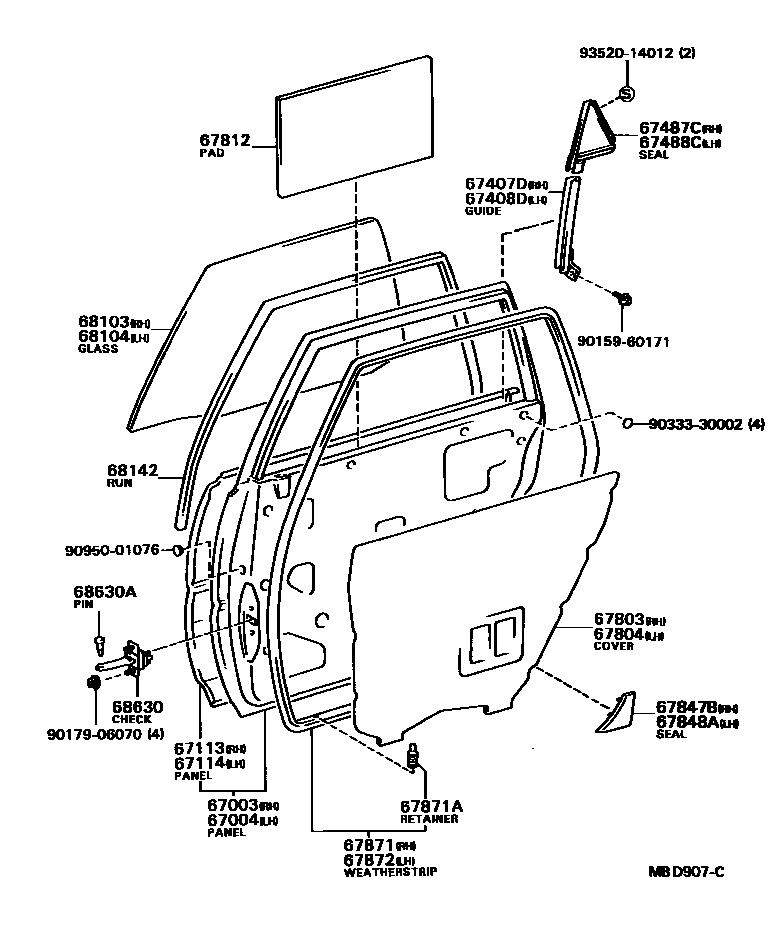

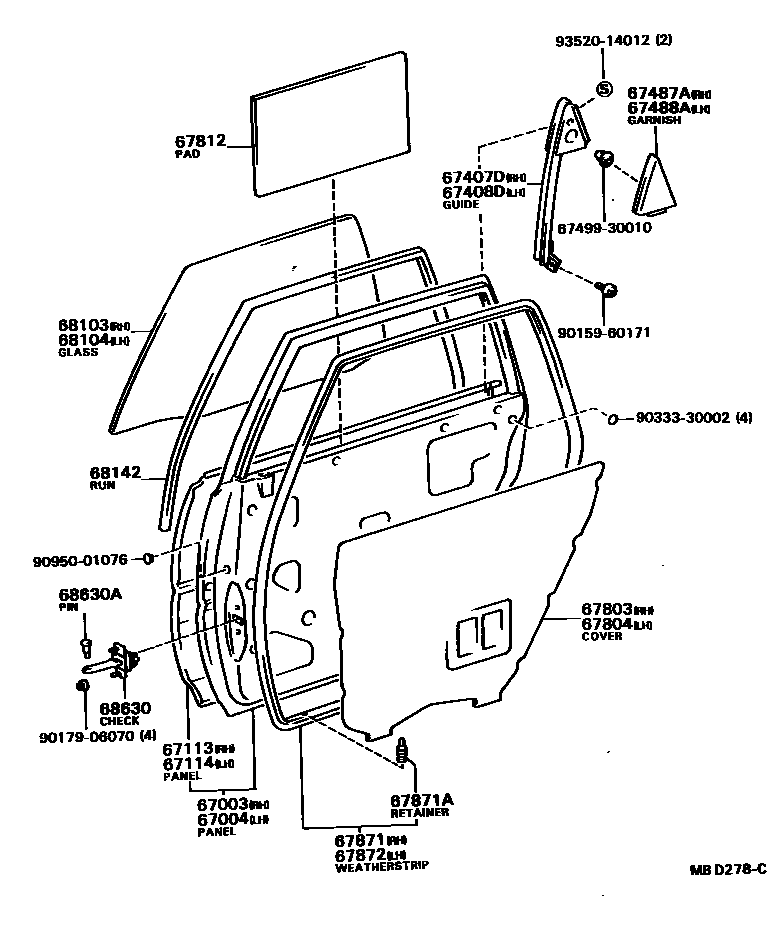

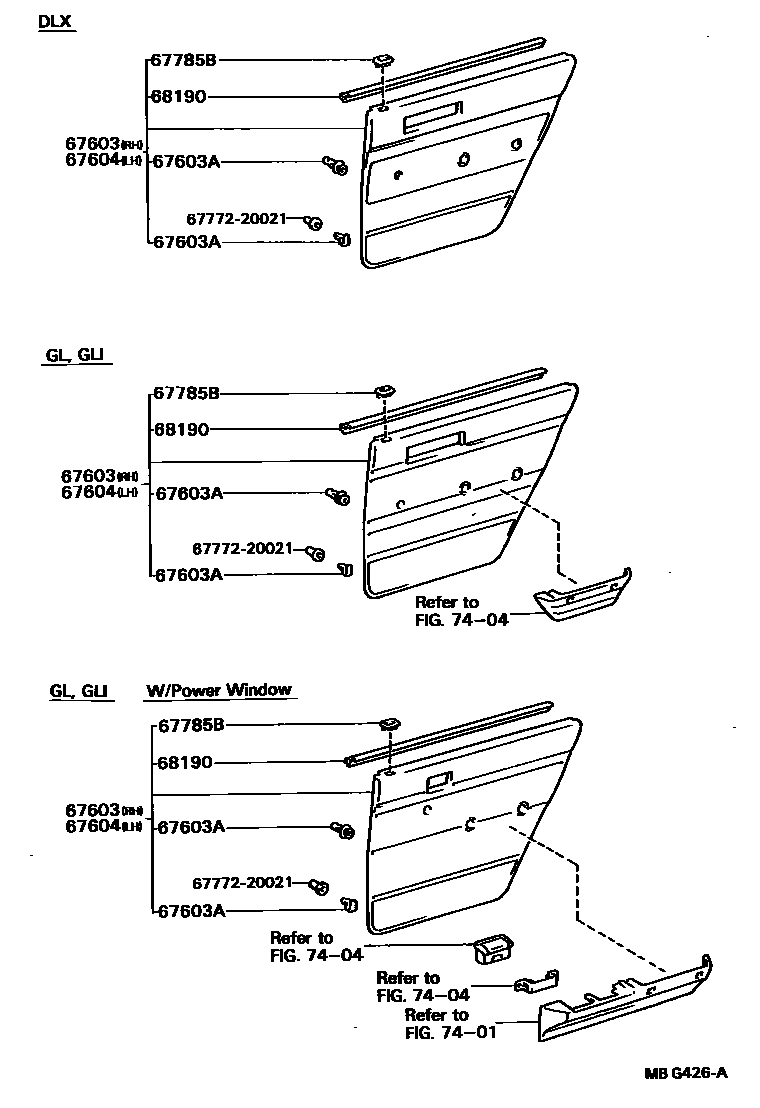

Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-32020 · 67003-32050 · 67003-32070 |
| 67004 | Left rear door panel sub-assembly | 67004-32020 · 67004-32050 · 67004-32070 |
| 67113 | Right rear door outer panel | 67113-32010 · 67113-32020 |
| 67114 | Left rear door outer panel | 67114-32010 · 67114-32020 |
| 67407D | Right rear door window glass rear guide channel sub-assembly | 67407-32010 · 67407-32020 |
| 67408D | Left rear door window glass rear guide channel sub-assembly | 67408-32010 · 67408-32020 |
| 67487A | Right rear door rear rail bracket decorative strip | 67487-32010 |
| 67487C | Right rear door rear rail seal | 67487-32020 |
| 67488A | Left rear door rear guide rail bracket decorative strip | 67488-32010 |
| 67488C | Left rear door rear rail seal | 67488-32020 |
| 67603A | Fixings (for rear door trim) | 67771-12010 · 67771-14010 · 67771-22010 |
| 67785B | Door lock button collar fastener (for rear doors) | 69751-20040 |
| 67803 | Right rear door access hole cover sub-assembly | 67841-32010 · 67841-32020 · 67841-32030 |
| 67804 | Left rear door access hole cover sub-assembly | 67841-32030 · 67842-32010 · 67842-32020 · 67842-32030 |
| 67812 | Rear door silencer pad | 67811-32010 |
| 67847B | No. 1 right rear door ventilator seal | 67847-32010 |
| 67848A | No. 1 left rear door ventilator seal | 67848-32010 |
| 67871 | Right rear door sealing strip | 67871-32010 · 67871-32030 |
| 67871A | Fixings (for rear door sealing strip) | 67868-30040 |
| 67872 | Left rear door sealing strip | 67872-32010 · 67872-32030 |
| 68103 | Right rear door glass sub-assembly | 68113-32010 · 68113-32020 · 68113-32030 · 68113-32040 |
| 68104 | Left rear door glass sub-assembly | 68114-32010 · 68114-32020 · 68114-32030 · 68114-32040 |
| 68142 | Rear door glass lift chute | 68142-32010 · 68142-32020 · 68142-32030 · 68142-32040 |
| 68190 | Rear door glass inner sealing strip assembly | 68190-32010 · 68190-32020 |
| 68630 | Rear door opening limiter assembly | 68630-32010 · 68630-32020 |
| 68630A | Pin (for rear door opening limiter) | 68617-12010 · 68617-22010 · 68617-90A00 |
