Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403

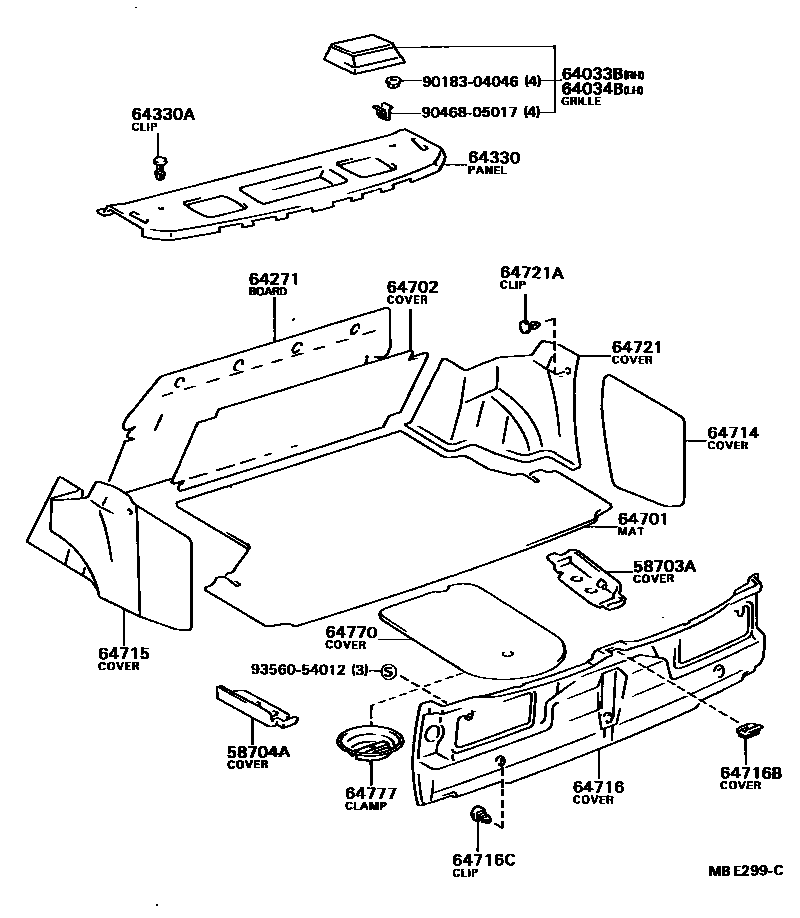

Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58703A | Trunk door right side decorative cover sub-assembly | 58773-32010 |
| 58704A | Luggage door left decorative cover sub-assembly | 58774-32010 |
| 64271 | No. 1 compartment partition | 64271-32010 |
| 64701 | Luggage pad assembly | 64711-32010 · 64711-32020 |
| 64702 | Trunk door front decorative cover sub-assembly | 64717-32010 · 64717-32020 |
| 64714 | Decorative cover on right side of luggage compartment door | 64714-32010 · 64714-32020 · 64714-32021 |
| 64715 | Luggage door left decorative cover | 64072-32020 · 64072-32040 · 64072-32041 · 64072-32042 |
| 64716 | Trunk door center rear trim cover | 64716-32010 · 64716-32030 |
| 64716B | Trunk door latch cover | 64749-14030 |
| 64721 | Luggage trunk right inner decorative cover | 64721-32010 · 64721-32020 · 64721-32021 |
| 64770 | Spare tire cover assembly | 64770-32010 · 64770-32030 |
| 64777 | Spare tire cover clip | 64777-32020 |
