Toyota CAMRY 车侧通风装置 — Figure 6102

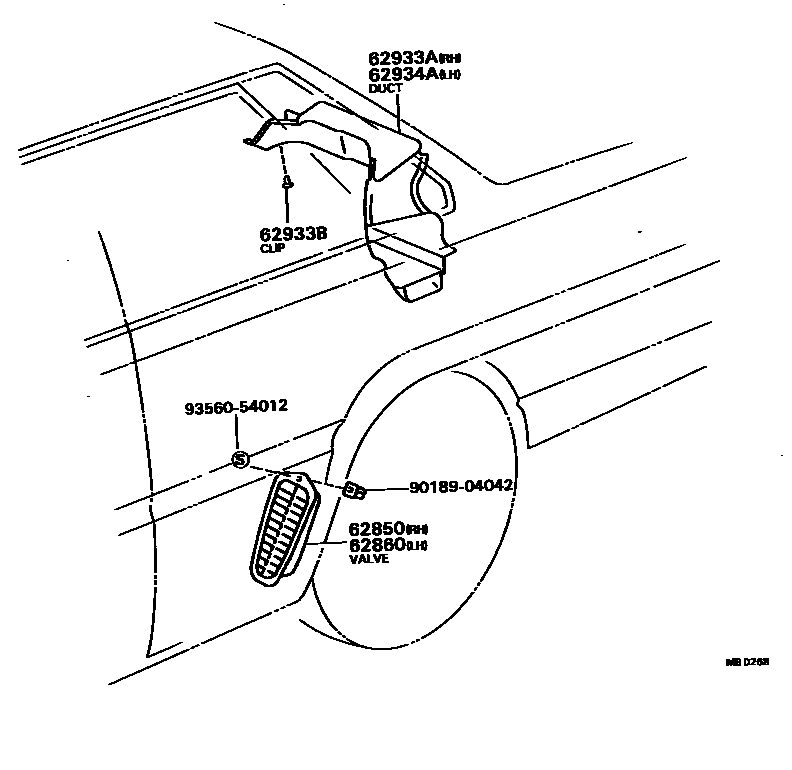

Toyota CAMRY EPC diagram 6102, 车侧通风装置, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62850 | Right compartment pressure reducing valve assembly | 62850-32010 |
| 62860 | Left compartment pressure reducing valve assembly | 62860-32010 |
| 62933A | Surround the ventilation duct on the right side | 62933-32010 |
| 62933B | Side ventilation duct clip | 90467-10018 |
| 62934A | Surround the ventilation duct on the left side | 62934-32010 |
