Toyota CAMRY 中央扶手箱和支架 — Figure 5806

Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 2 images and 9 PNC and OE references.

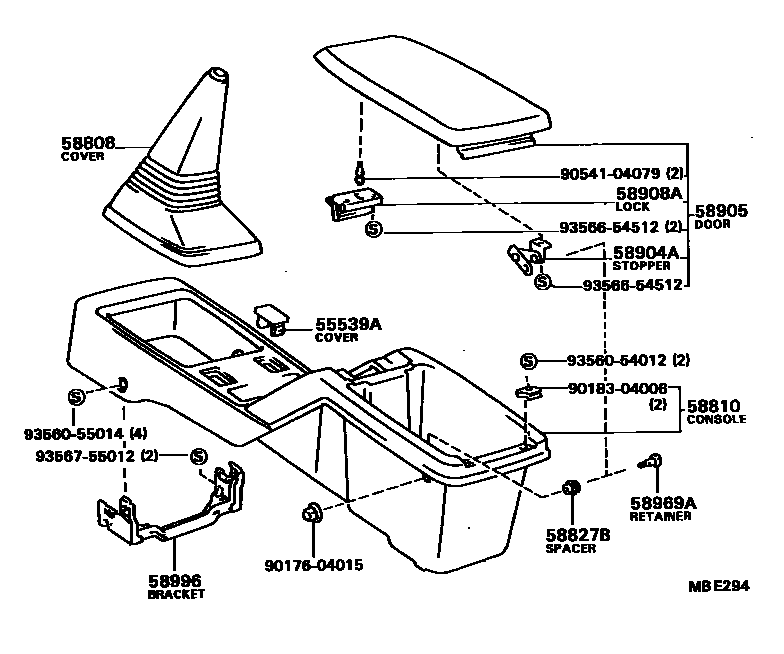

Toyota CAMRY 中央扶手箱和支架 EPC diagram — MBE294
中央扶手箱和支架 — MBE294 (198210 – 198406)

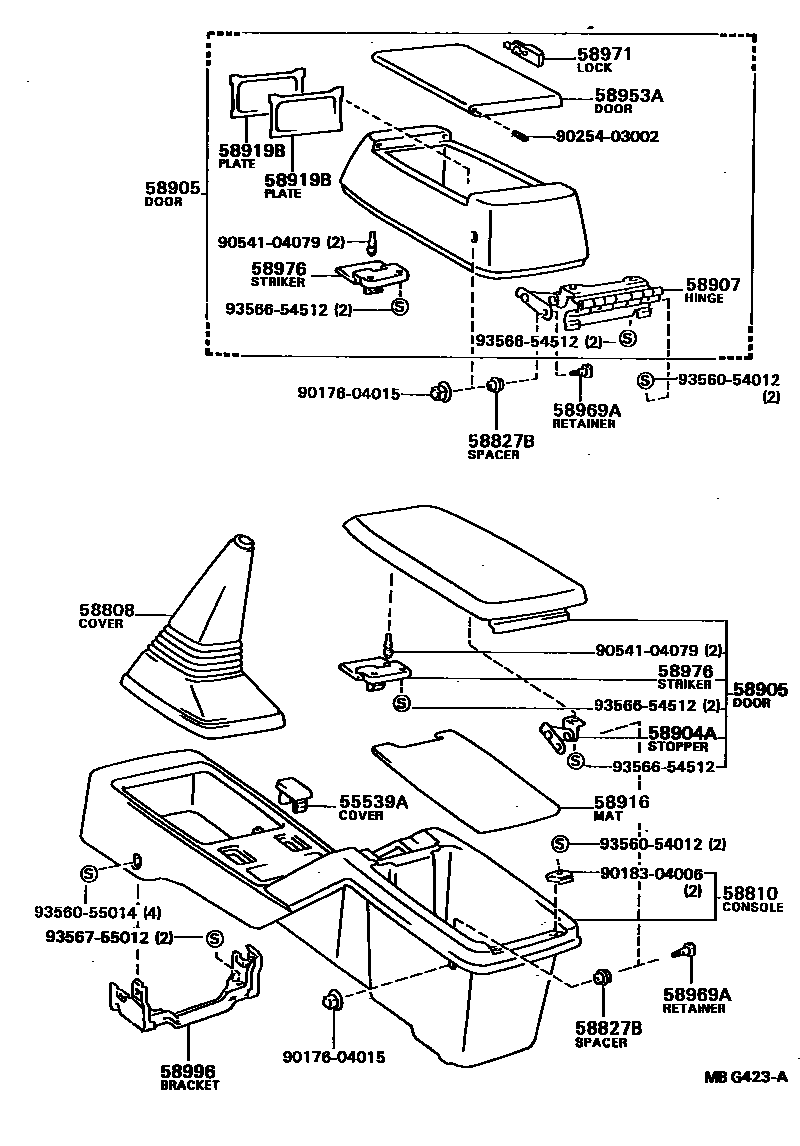

Toyota CAMRY 中央扶手箱和支架 EPC diagram — MBG423A
中央扶手箱和支架 — MBG423A (198406 – 999999)

PNC and OE references

PNCPart nameOE numbers
58827BArmrest box lid stopper spacer58827-20021
58904AArmrest box lid stopper sub-assembly58909-32010
58907Armrest box lid hinge sub-assembly58907-32010
58908AArmrest box lid lock assembly58908-22010
58916Armrest box bottom pad58916-32010
58919BArmrest box nameplate58919-32010
58969AArmrest box lid stopper fixing58969-20010
58976Armrest box lid lock58976-20010
58996Armrest box No. 1 mounting bracket58995-32010
