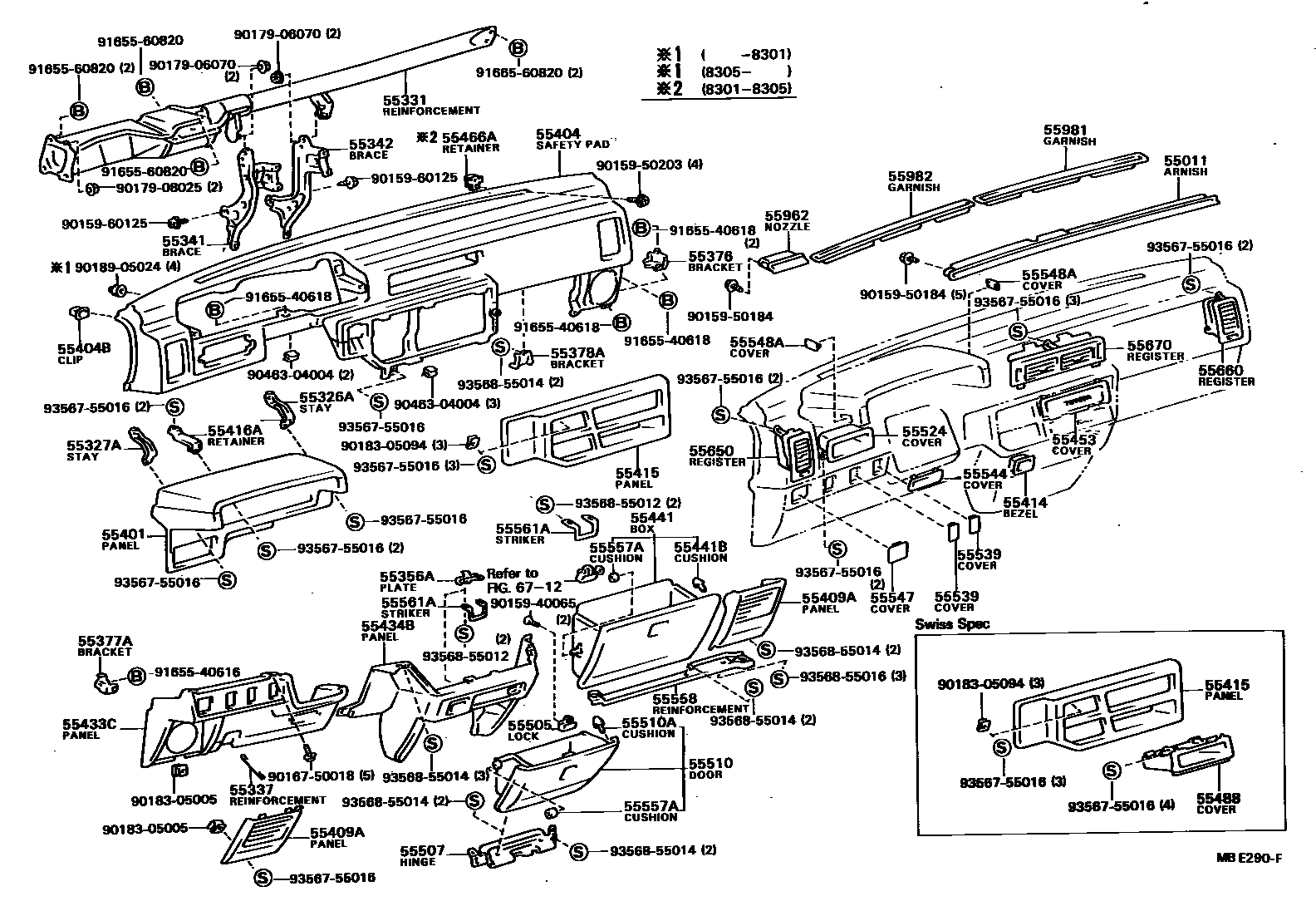

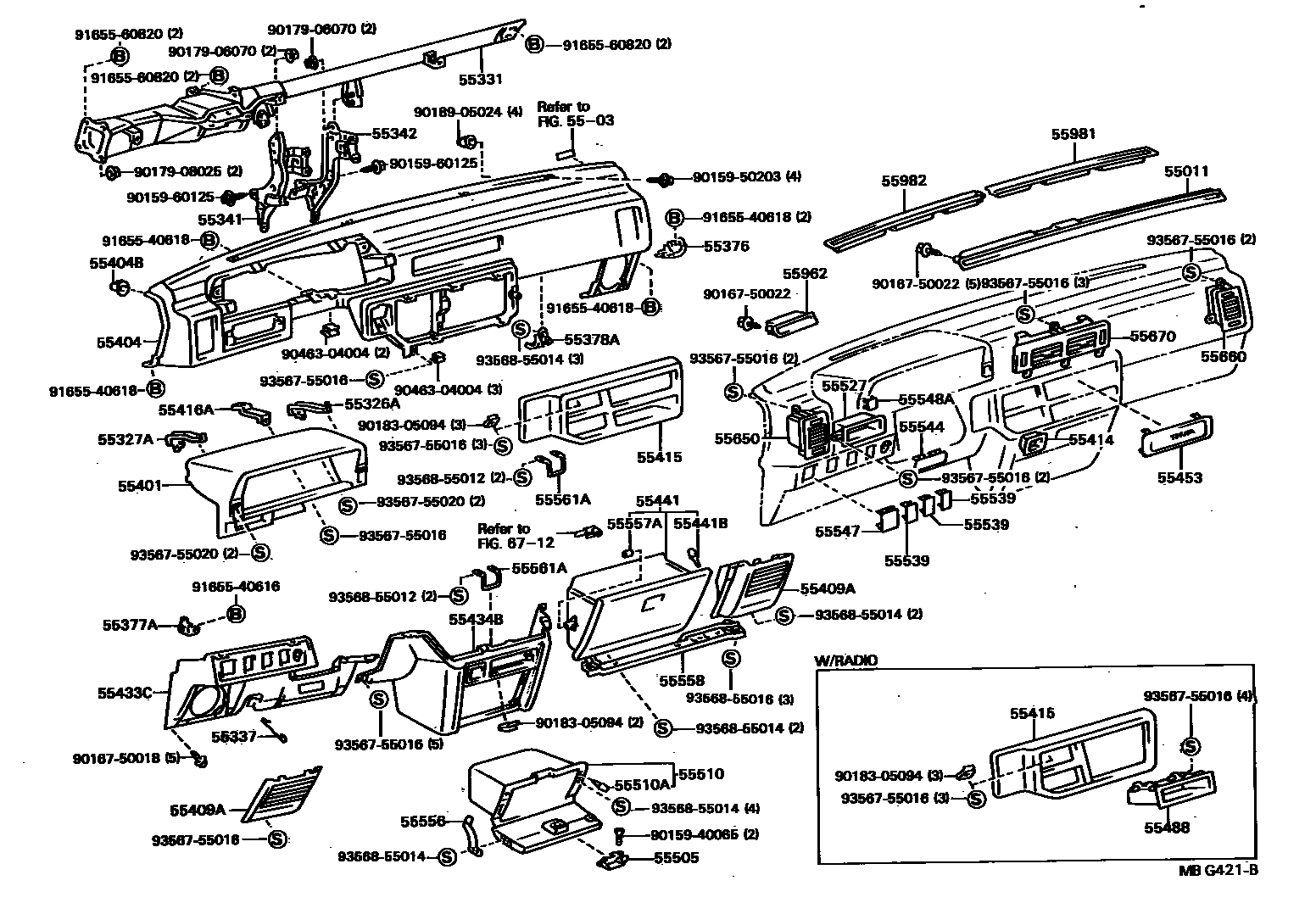

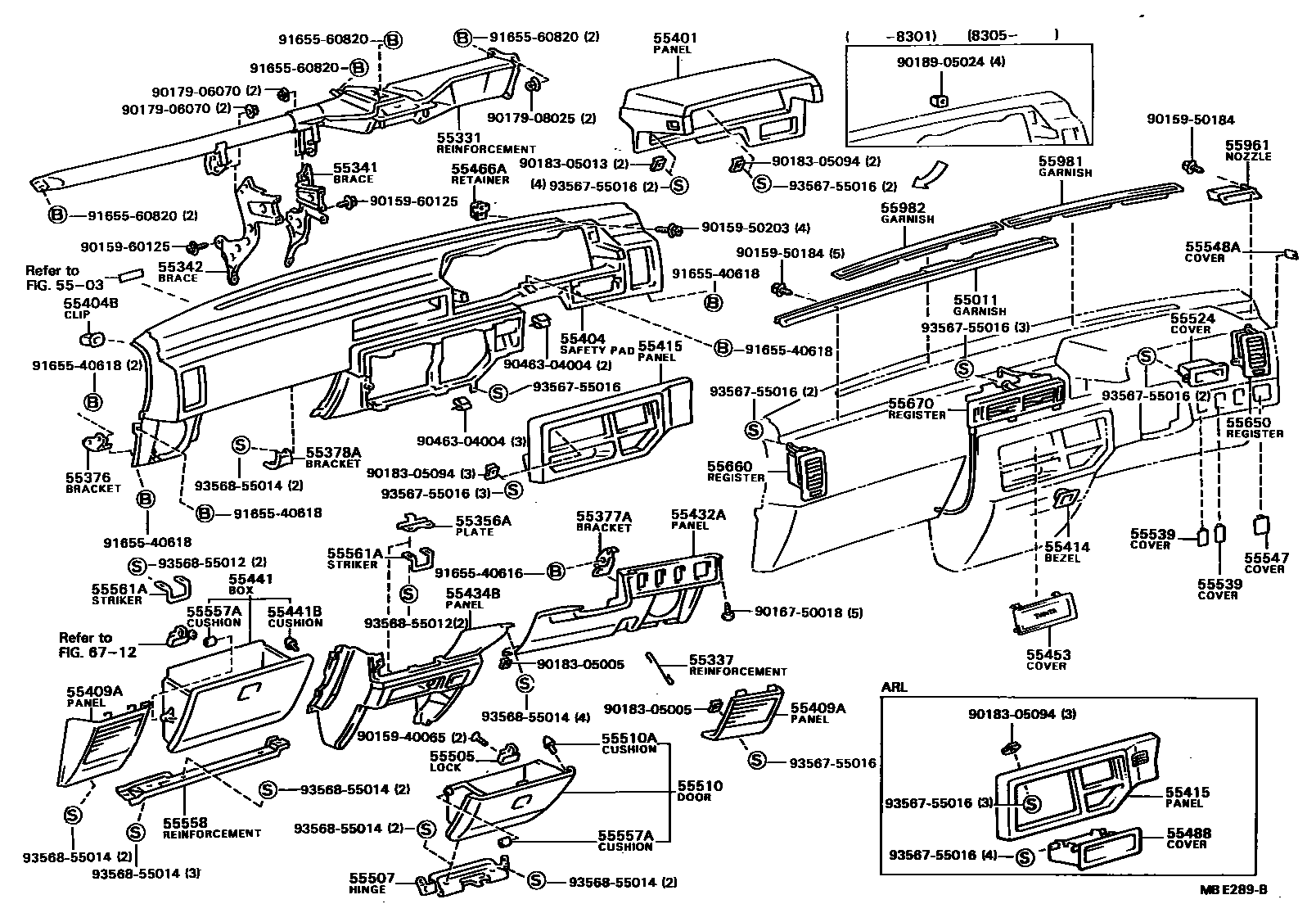

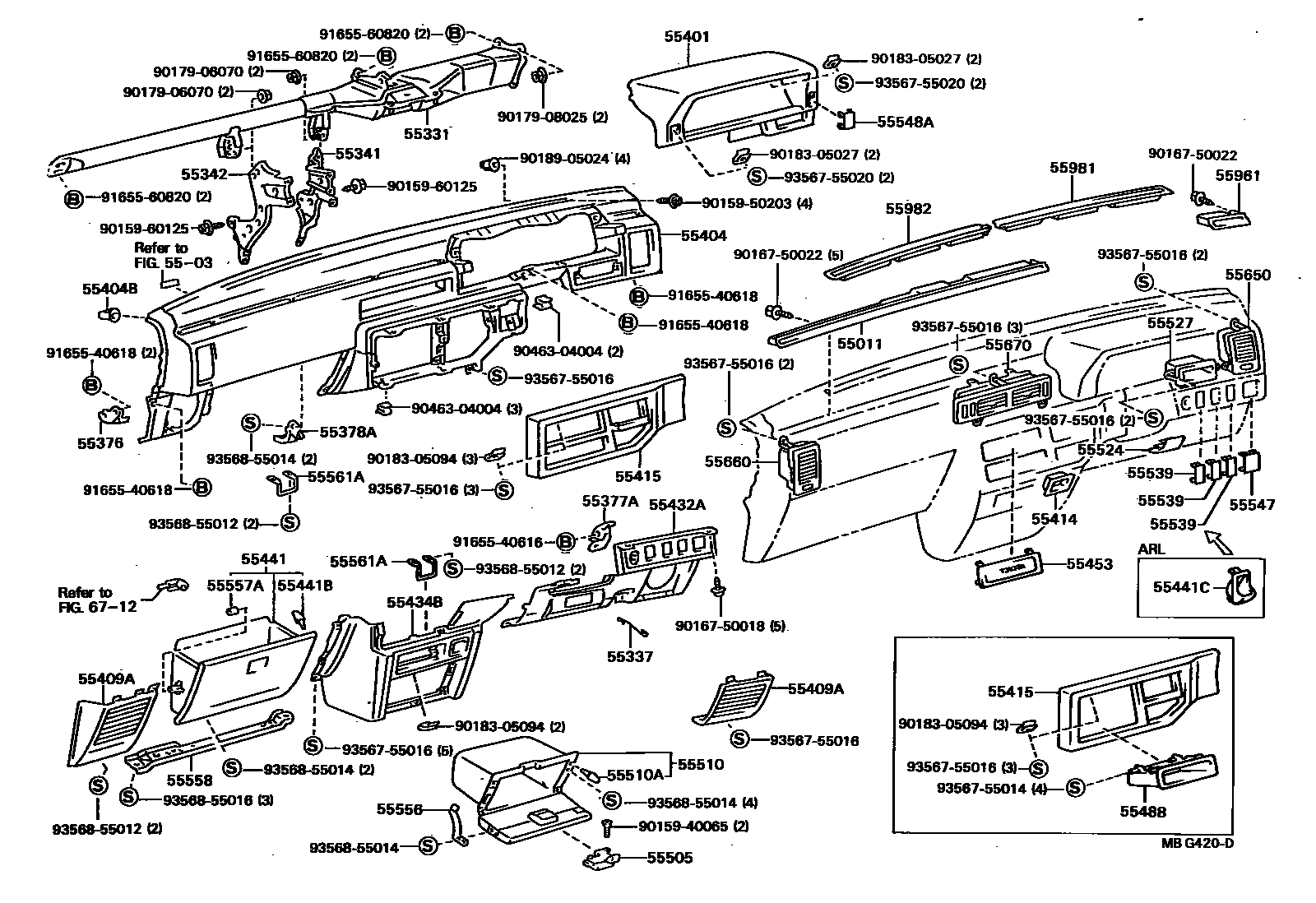

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55326A | Dashboard No. 1 stay | 55326-32010 · 55326-32020 |
| 55327A | Instrument panel support No. 2 | 55327-32010 · 55327-32020 |
| 55331 | Dashboard reinforcement | 55330-32010 · 55330-32011 · 55330-32020 · 55330-32021 · 55330-32030 · 55330-32031 · 55330-32040 |
| 55337 | Dashboard sub-reinforcement | 55337-32010 |
| 55341 | Instrument panel bracket No. 1 | 55306-32010 · 55306-32020 · 55306-32030 · 55306-32050 |
| 55342 | Instrument panel bracket No. 2 | 55307-32010 · 55307-32020 |
| 55356A | instrument panel lower panel | 55356-32010 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-32010 · 55376-32020 |
| 55377A | Instrument panel mounting bracket No. 2 | 55377-32010 · 55377-32020 |
| 55378A | Glovebox lid lock mounting bracket | 55378-32030 |
| 55404B | Safety pad fixing clip | 90467-14002 |
| 55414 | Cigarette lighter hole frame | 55477-32010 |
| 55416A | Instrument cover No. 1 fixing piece | 55416-32020 |
| 55441B | Dashboard storage box cushion | 90541-03015 |
| 55441C | Dashboard coin box | 55441-32030 |
| 55453 | Radio tuner opening cover | 55522-14070 |
| 55466A | Dashboard safety pad fasteners | 55466-32020 |
| 55488 | stereo system hole cover | 55521-14050 |
| 55507 | Glove box cover hinge sub-assembly | 55505-32010 |
| 55510A | Cushion (for glovebox lid) | 90541-03015 |
| 55524 | Switch base hole cover | 55524-32010 · 55524-32030 |
| 55527 | Transmission control switch hole cover | 55527-32010 · 55527-32020 |
| 55547 | Remote control rearview mirror hole cover | 55547-32010 |
| 55556 | Glove box cover stopper arm | 55556-20030 |
| 55557A | Glove box cover limit pad | 55557-16010 |
| 55558 | Glove box cover reinforcement | 55558-32010 · 55558-32020 |
| 55561A | Glove box lid lock | 55561-32010 |
