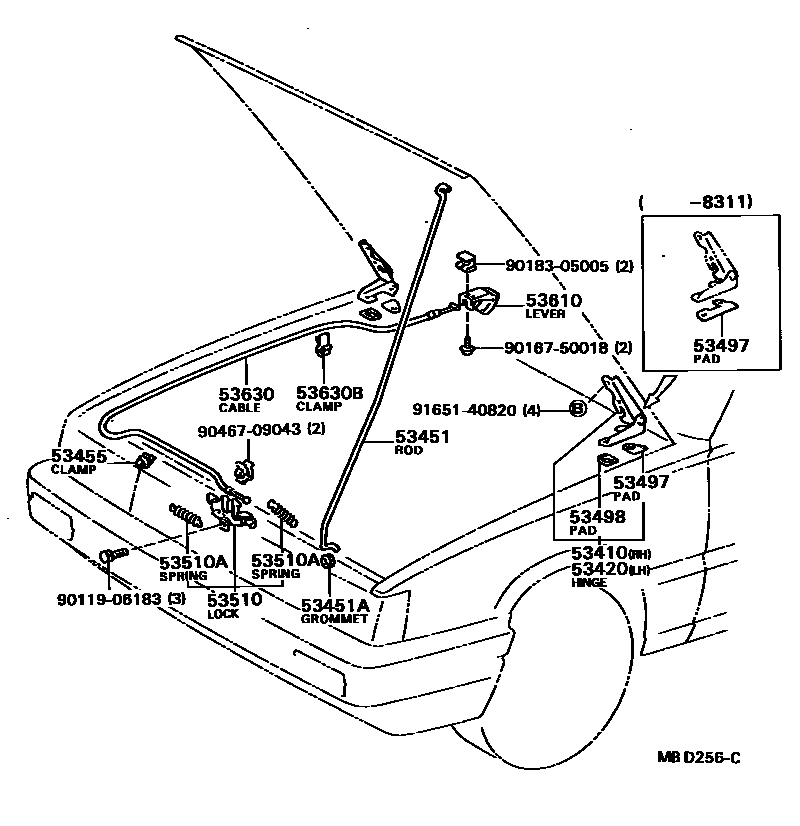

Toyota CAMRY 发动机盖锁和铰链 — Figure 5303
Toyota CAMRY EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-32010 |
| 53420 | Engine cover left hinge assembly | 53420-32010 |
| 53451 | Engine cover support rod | 53451-32010 · 53451-32020 |
| 53451A | Gasket (for engine cover support rod) | 90480-15011 |
| 53455 | Engine cover support rod clip | 53455-14020 |
| 53497 | No. 1 engine cover hinge gasket | 53497-32010 · 53497-32020 · 53497-32030 |
| 53498 | No. 2 engine cover hinge gasket | 53498-12010 |
| 53510 | Engine cover lock assembly | 53510-32010 · 53510-32020 · 53510-32030 |
| 53510A | Tension spring (for hood lock) | 90506-09008 · 90506-09029 · 90506-20008 |
| 53630 | Engine hood lock control cable assembly | 53630-32020 · 53630-32030 · 53630-32040 |
| 53630B | Clip (for hood lock control cable) | 69749-12010 |
