Toyota CAMRY 后保险杠及附件 — Figure 5202

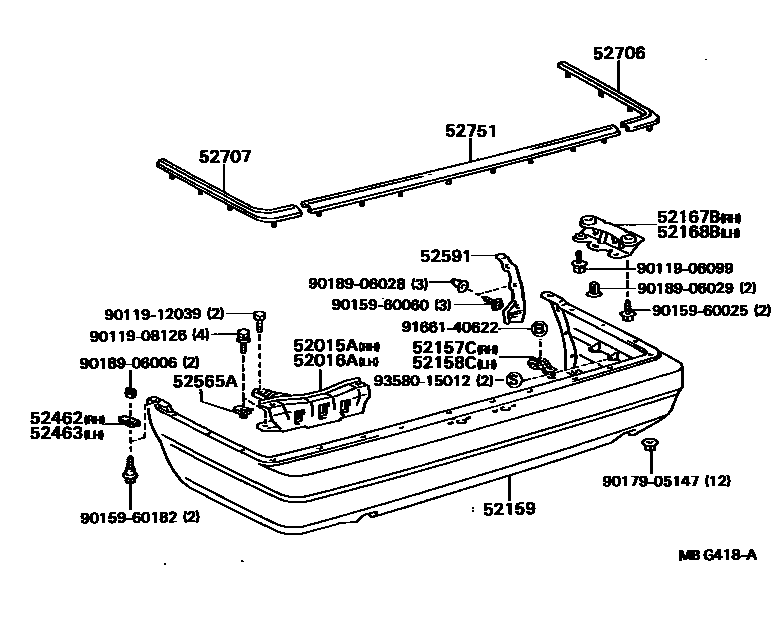

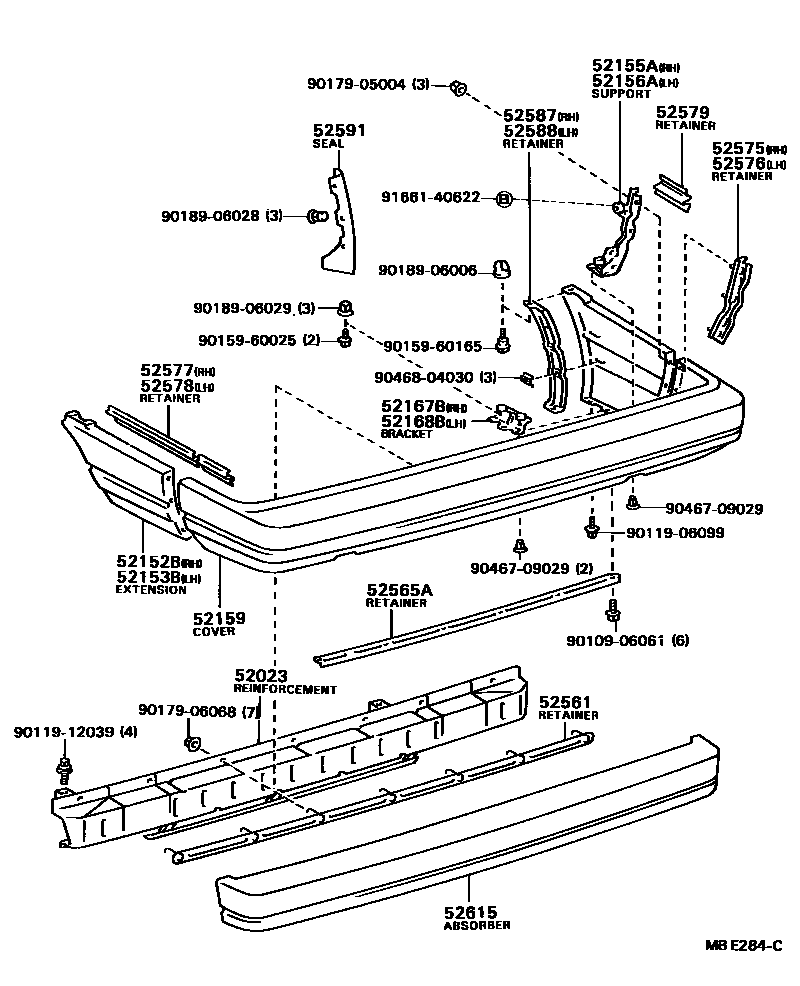

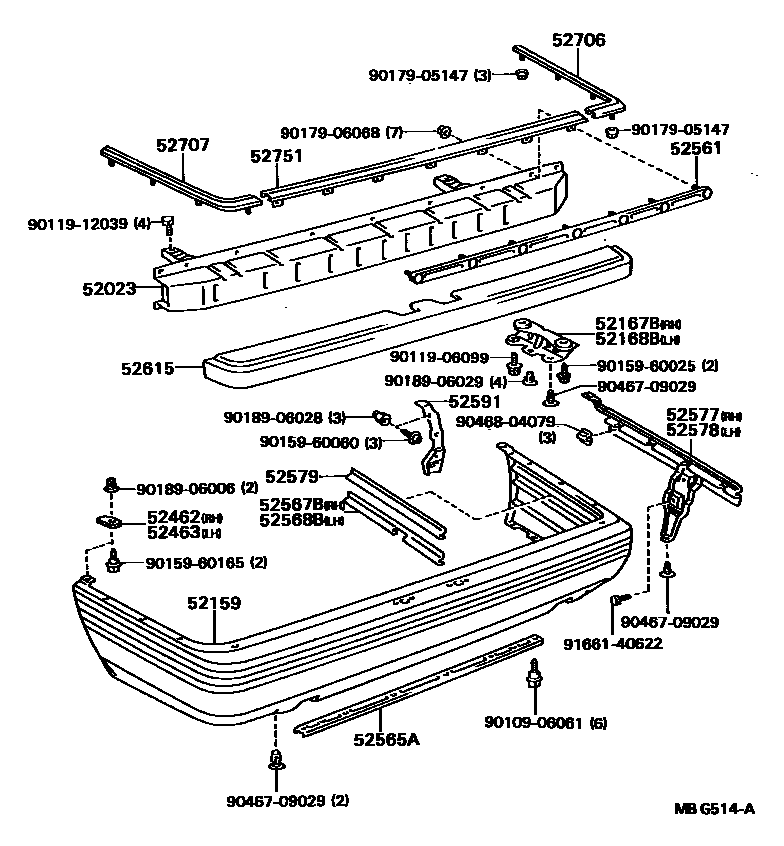

Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 3 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-32040 |
| 52016A | Rear bumper left arm sub-assembly | 52015-32040 |
| 52023 | Rear bumper reinforcement sub-assembly | 52023-32020 · 52023-32050 |
| 52152B | Rear bumper right extension | 52152-32020 · 52152-32901 |
| 52153B | Rear bumper left extension | 52153-32020 · 52153-32901 |
| 52155A | Rear bumper right side bracket | 52155-32010 |
| 52156A | Rear bumper left bracket | 52156-32010 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-32030 |
| 52158C | Rear bumper No. 2 left side bracket | 52157-32030 |
| 52159 | rear bumper cover | 52159-32110 · 52159-32120 · 52159-32903 · 52159-32906 · 52159-32908 |
| 52167B | Rear bumper extension right mounting bracket | 52167-32010 |
| 52168B | Rear bumper extension left mounting bracket | 52168-32010 |
| 52462 | Rear bumper right side lining | 52462-32010 |
| 52463 | Rear bumper left lining | 52463-32010 |
| 52561 | Rear bumper upper center fixing bracket | 52521-32010 · 52521-32040 |
| 52565A | Rear bumper lower fixing bracket | 52565-16020 · 52565-32010 |
| 52567B | Rear bumper No. 4 right side fixing bracket | 52567-32010 |
| 52568B | Rear bumper No. 4 left side fixing bracket | 52568-32010 |
| 52575 | Rear bumper right side fixing bracket | 52575-32010 |
| 52576 | Rear bumper left side fixing bracket | 52576-32010 |
| 52577 | Rear bumper No. 2 right side fixing bracket | 52577-32010 · 52577-32020 |
| 52578 | Rear bumper No. 2 left side fixing bracket | 52578-32010 · 52578-32020 |
| 52579 | Rear bumper No. 3 side fixing bracket | 52579-32010 · 52579-32020 |
| 52587 | Rear bumper right end fixing bracket | 52587-32010 |
| 52588 | Rear bumper left end fixing bracket | 52588-32010 |
| 52591 | Rear bumper right seal | 52591-32010 |
| 52615 | Rear bumper energy absorber | 52615-32020 · 52615-32040 |
| 52706 | Rear bumper right side protective strip sub-assembly | 52706-32010 · 52706-32020 |
| 52707 | Rear bumper left protection strip sub-assembly | 52707-32010 · 52707-32020 |
| 52751 | Rear bumper protection strip | 52751-32010 · 52751-32020 |
