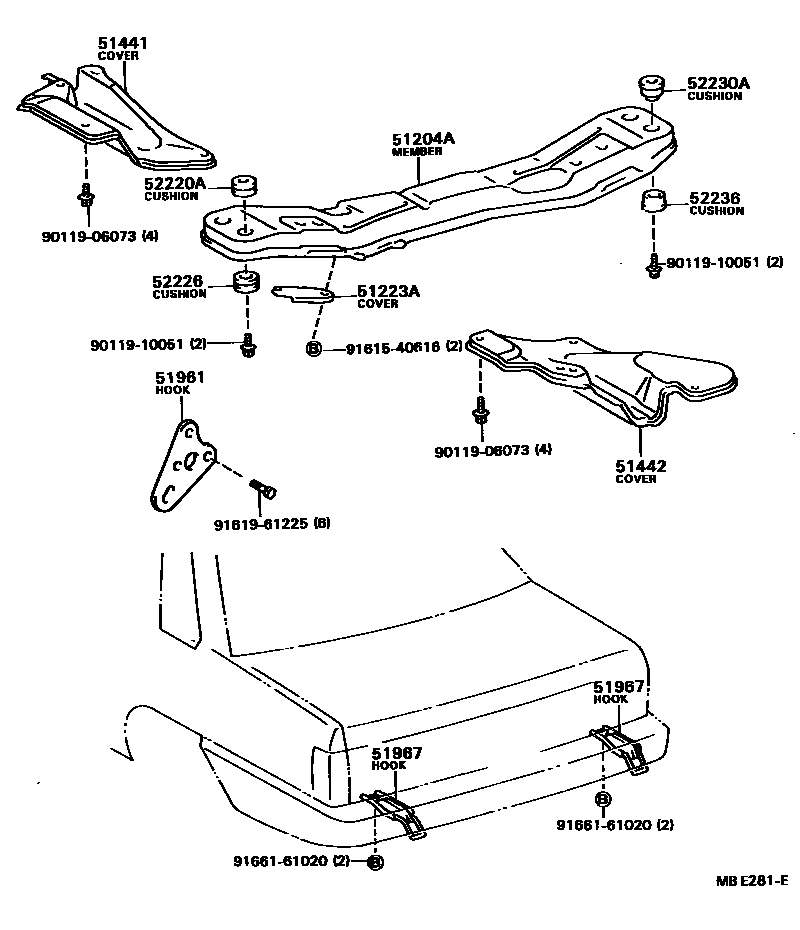

Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102
Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51204A | Engine center mount beam sub-assembly | 51204-32010 |
| 51223A | Engine mounting hole cover | 51223-32010 |
| 51441 | No. 1 engine bottom cover | 51441-32010 · 51441-32020 |
| 51442 | No. 2 engine bottom cover | 51442-32010 · 51442-32020 |
| 51961 | No. 1 hook | 51963-32010 · 51963-32020 |
| 51967 | Rear transport hook | 51095-32010 |
| 52220A | Fixed buffer pad assembly on front center beam | 52220-32010 · 52220-32020 |
| 52226 | Fixed cushion pad under front center beam | 52226-32010 · 52226-32020 |
| 52230A | Fixed buffer pad assembly on rear center beam | 52230-32010 · 52230-32020 |
| 52236 | Fixed cushion pad under rear center beam | 52236-32010 · 52236-32020 |
