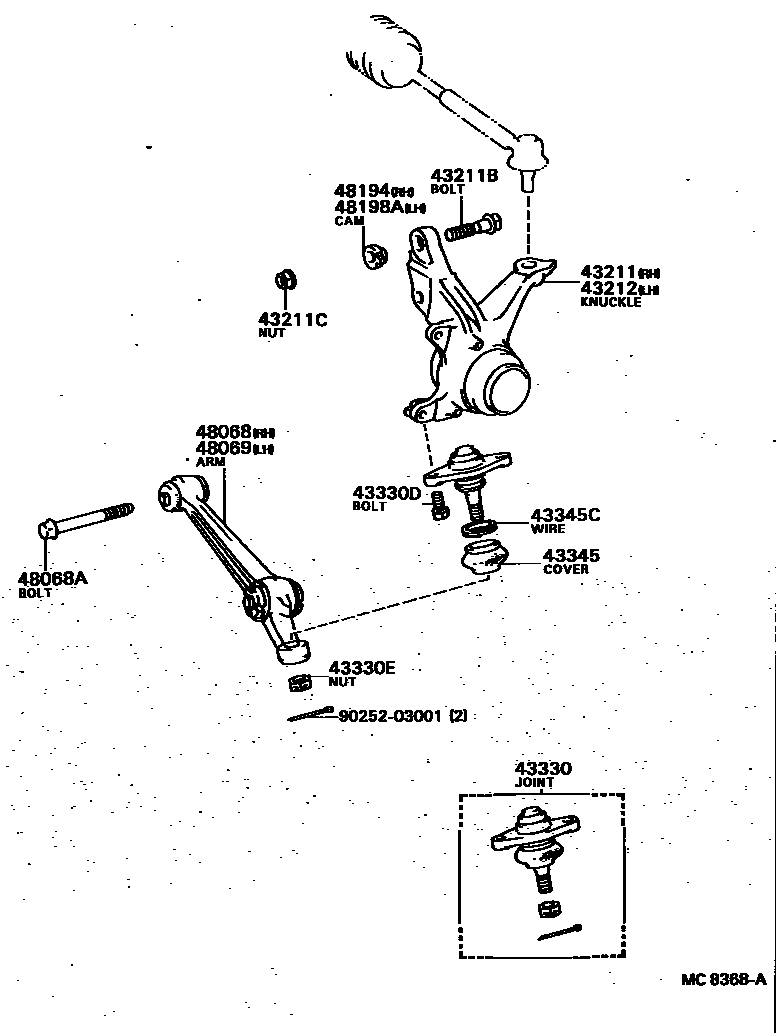

Toyota CAMRY 前桥控制臂和转向节 — Figure 4802
Toyota CAMRY EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-32010 · 43211-32020 |
| 43211B | Bolts (for securing the shock absorber) | 90105-15001 |
| 43211C | Nut (for fixing the shock absorber) | 90179-15001 |
| 43212 | left steering knuckle | 43212-32010 · 43212-32020 |
| 43330 | Front lower ball joint assembly | 43330-39135 |
| 43330D | Bolt (for front lower ball joint) | 90105-12059 · 90119-12034 |
| 43330E | Castle nut (used to secure the front lower ball joint) | 90171-14002 |
| 43345 | Lower ball joint dust cover | 43345-32010 |
| 43345C | Wiring harness (for lower ball joint dust cover) | 90580-10002 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-32011 · 48068-32020 |
| 48068A | Bolt (for front suspension lower arm) | 90105-12043 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-32011 · 48069-32020 |
| 48194 | Right camber angle adjustment cam | 48194-32010 · 48194-32020 |
| 48198A | Left camber angle adjustment cam | 48198-32010 · 48198-32020 |
