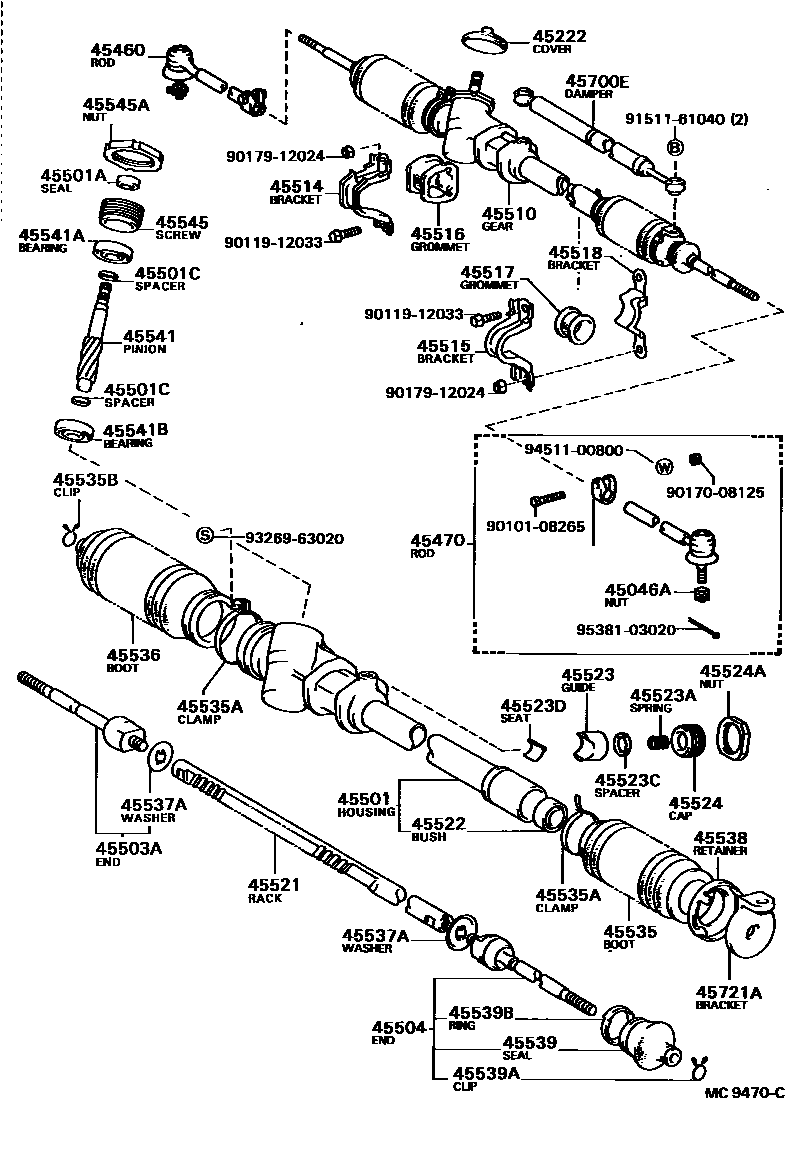

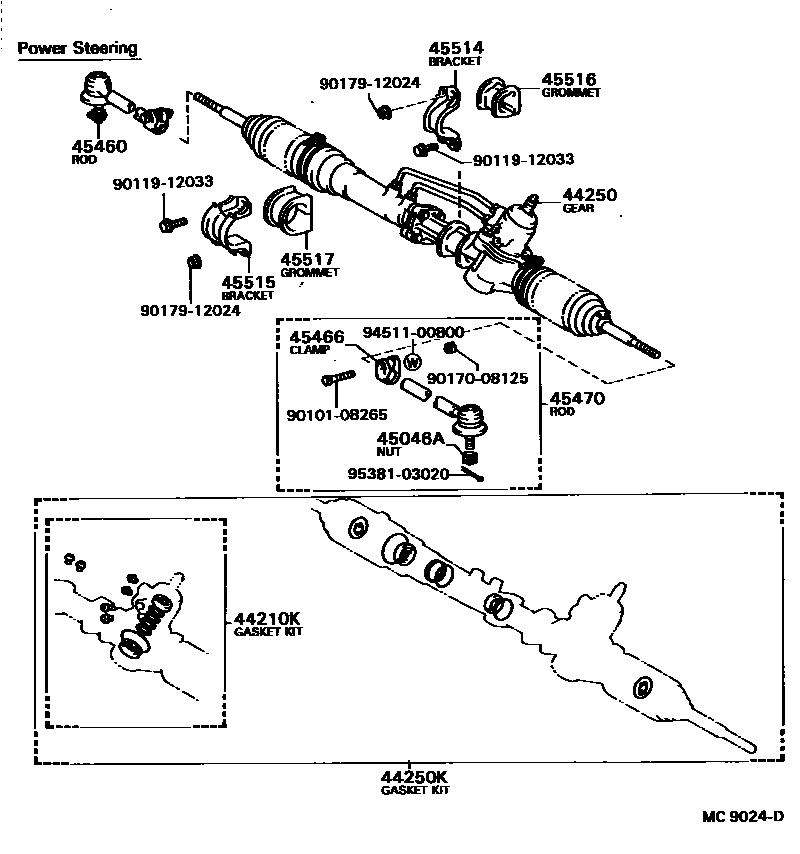

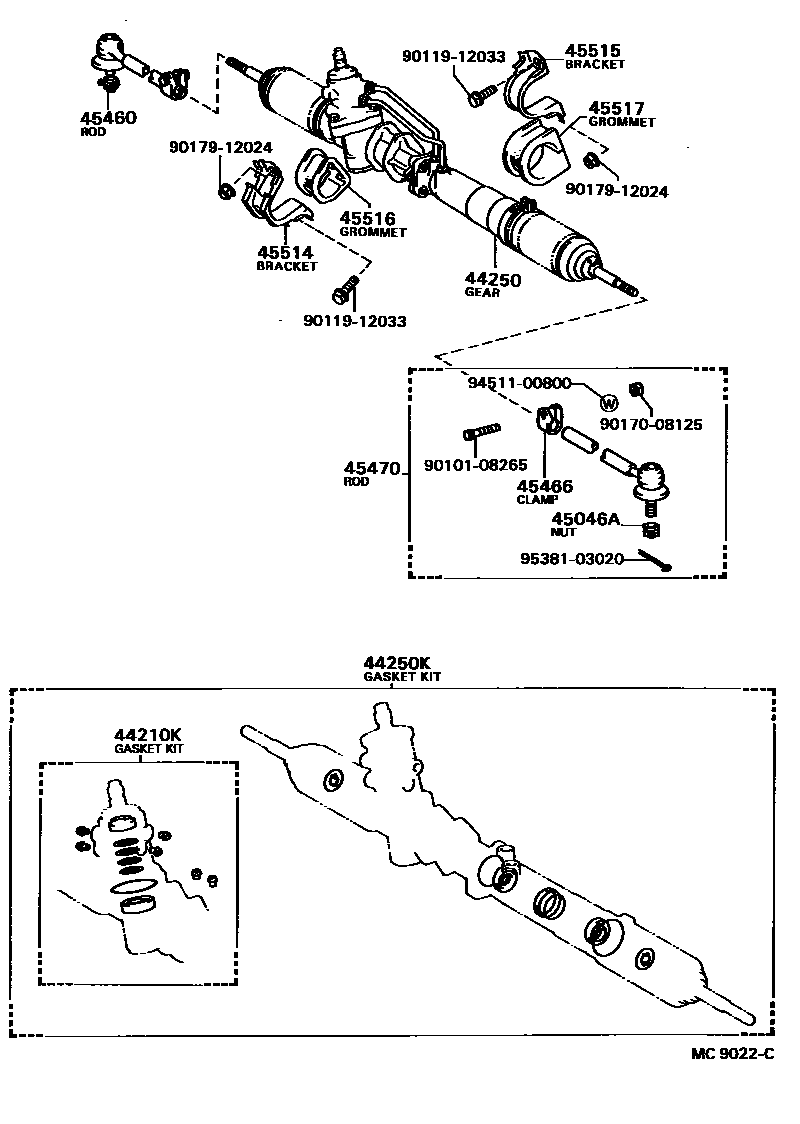

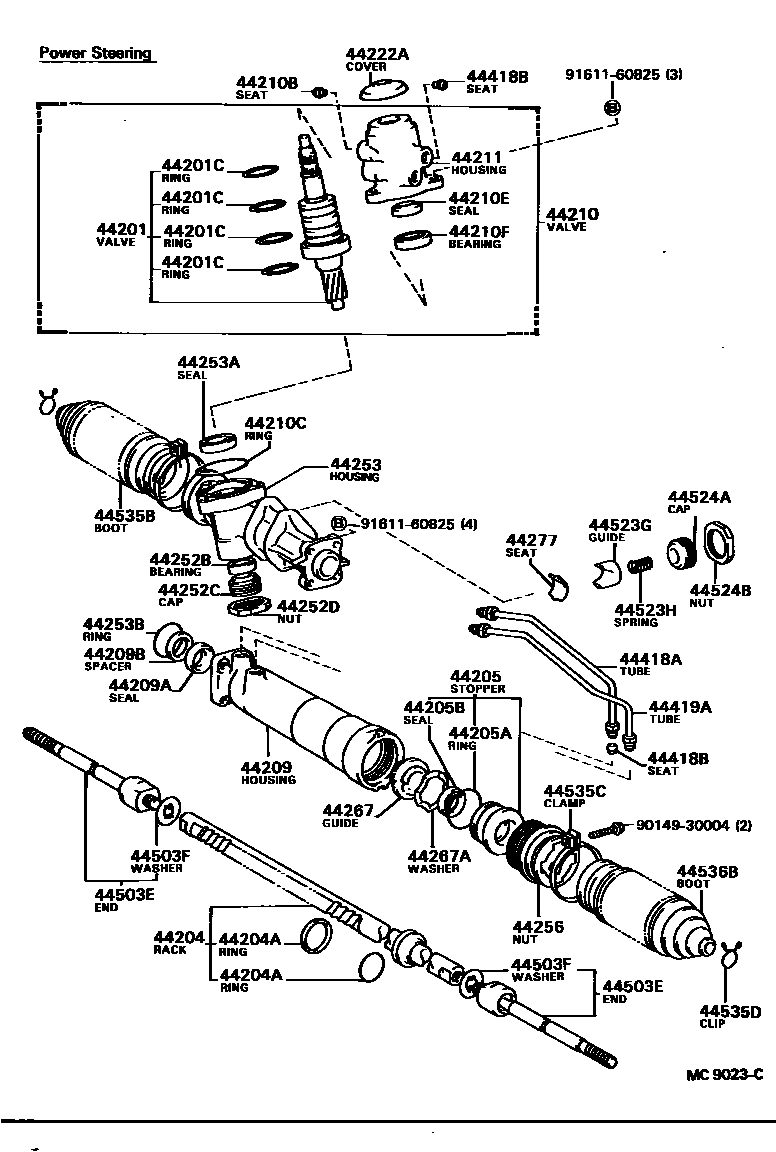

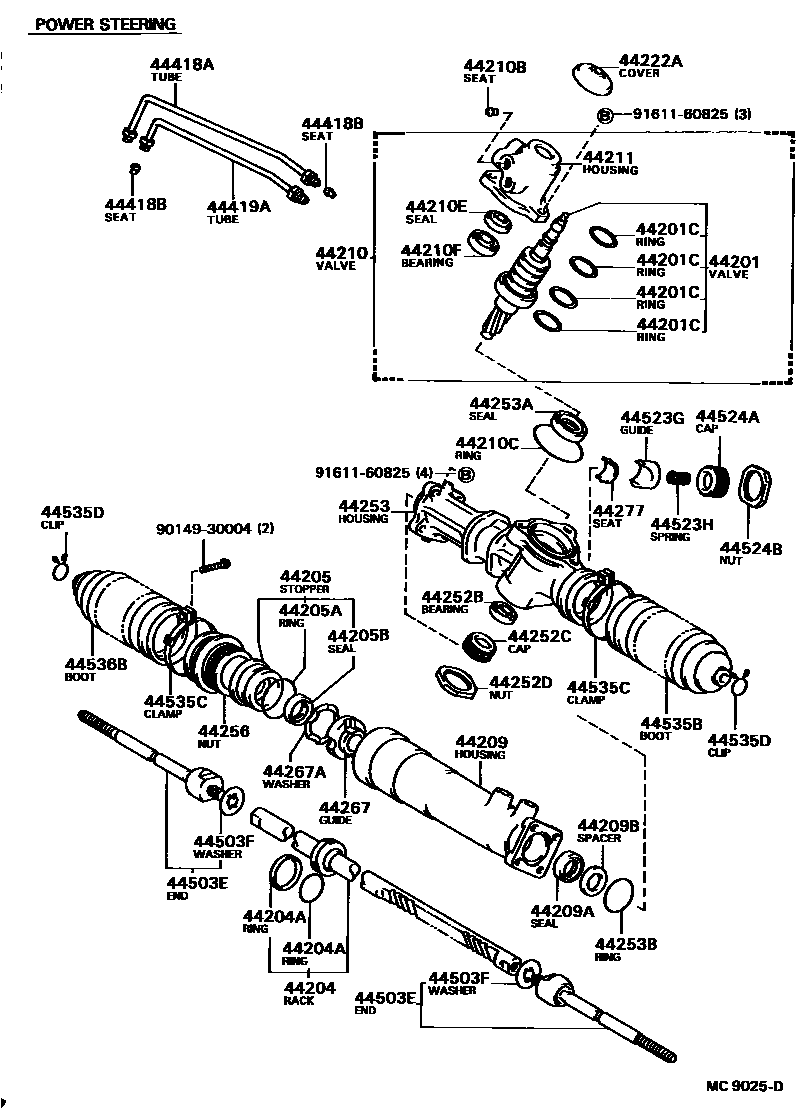

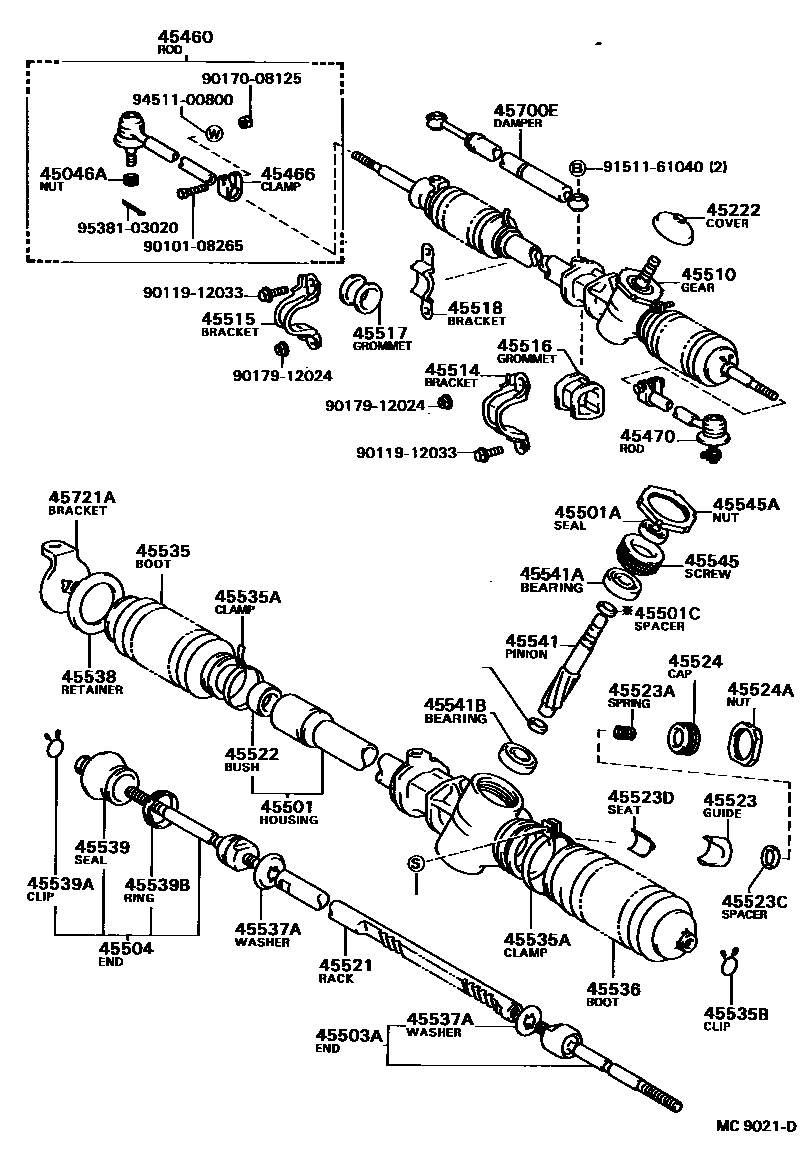

Toyota CAMRY 前转向齿轮和连杆 — Figure 4505
Toyota CAMRY EPC diagram 4505, 前转向齿轮和连杆, with 6 images and 83 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44201 | Power steering control valve sub-assembly | 44201-32010 · 44201-32020 |
| 44201C | Ring (for power steering control valve) | 90562-33002 |
| 44204 | Power steering rack sub-assembly | 44204-32010 · 44204-32020 |
| 44204A | Ring (for steering rack piston) | 90301-33003 · 90562-37001 |
| 44205 | Cylinder end stopper sub-assembly | 44205-24010 |
| 44205A | O-ring (for cylinder end stopper) | 90301-49004 |
| 44205B | Oil seal (for cylinder end stop) | 90311-25008 · 90311-25014 |
| 44209 | Power steering cylinder housing sub-assembly | 44209-14010 · 44209-14020 |
| 44209A | Seals (for power steering cylinder housing) | 90311-25006 · 90311-25013 |
| 44209B | Spacer (for power steering cylinder housing) | 90560-26004 |
| 44210 | Power steering control valve assembly | 44210-32020 · 44210-32030 |
| 44210B | Connector seat (for power steering control valve) | 90410-06002 |
| 44210C | O-ring (for power steering control valve) | 96711-24060 |
| 44210E | Oil seal (for power steering control valve) | 90311-19006 |
| 44210F | Bearings (for power steering control valve) | 90363-19002 |
| 44210K | Power steering control valve overhaul gasket assembly | 04455-32010 |
| 44211 | control valve housing | 44211-32020 · 44211-32030 |
| 44222A | Dust cover (for power steering gear) | 45222-32010 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-32020 · 44250-32030 |
| 44250K | Power steering gear gasket assembly (for rack and pinion) | 04445-32020 |
| 44252B | Bearings (for power steering pinion) | 90363-13002 |
| 44252C | Cover (for power steering pinion) | 45524-16010 |
| 44252D | Nut (for power steering pinion cover) | 90179-36002 |
| 44253 | Power steering rack housing | 44253-32020 · 44253-32030 |
| 44253A | Oil seal (for power steering rack housing) | 90310-28001 |
| 44253B | O-ring (for power steering rack housing) | 90301-38001 |
| 44256 | Cylinder end stopper nut | 44256-24010 |
| 44267 | Rack end guide block | 44267-24010 |
| 44267A | Washer (for rack end guide) | 90206-43001 |
| 44277 | Rack guide block seat | 44277-24010 |
| 44418A | Right steering pressure oil pipe | 44418-32020 · 44418-32030 |
| 44418B | Joint seat (for steering pressure oil pipe) | 90410-05004 |
| 44419A | Left steering pressure oil pipe | 44419-32020 · 44419-32030 |
| 44503E | Steering rack end sub-assembly (for power steering) | 45503-39015 |
| 44503F | Claw washer (for power steering rack end) | 90214-14002 |
| 44523G | Rack guide block (for power steering) | 45523-24010 |
| 44523H | Spring (for power steering rack guide) | 90501-23024 |
| 44524A | Rack guide spring cover (for power steering) | 45524-16010 |
| 44524B | Nut (for power steering rack guide cover) | 90179-36002 |
| 44535B | No. 1 steering rack dust boot (for power steering) | 45535-14011 |
| 44535C | Clamp (for power steering rack dust boot) | 90461-10554 |
| 44535D | Catch (for power steering rack dust boot) | 90467-18003 |
| 44536B | No. 2 steering rack dust boot (for power steering) | 45535-14011 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45222 | Steering gear dust cover | 45222-20010 |
| 45460 | Right tie rod assembly | 45460-39165 |
| 45466 | Tie rod end clamp | 45466-22010 |
| 45470 | Left tie rod assembly | 45460-39165 |
| 45501 | Steering rack housing sub-assembly | 45501-32020 · 45501-32030 · 45501-32040 |
| 45501A | T-type oil seal (for steering rack housing) | 90311-15001 |
| 45501C | Spacer (for steering rack housing) | 90560-15005 |
| 45503A | No. 1 steering rack end sub-assembly | 45503-39015 |
| 45504 | No. 2 steering rack end sub-assembly | 45504-32010 |
| 45510 | Steering gear assembly | 45510-32020 · 45510-32030 · 45510-32040 |
| 45514 | No. 1 steering rack housing bracket | 45505-32010 · 45505-32020 · 45505-32030 · 45514-32010 · 45514-32040 · 45514-32050 |
| 45515 | No. 2 steering rack housing bracket | 45506-32010 · 45506-32030 · 45515-32010 · 45515-32020 · 45515-32050 · 45515-32060 |
| 45516 | No. 1 steering rack housing seal | 45516-32010 |
| 45517 | No. 2 steering rack housing seal | 45517-32010 · 45517-32020 · 45517-32040 |
| 45518 | No. 3 steering rack housing bracket | 45518-32010 · 45518-32030 |
| 45521 | steering rack | 45521-32020 · 45521-32030 · 45521-32040 |
| 45522 | steering rack bushing | 45522-22010 |
| 45523 | Rack guide block (for steering gear) | 45523-16011 · 45523-20011 |
| 45523A | Spring (for steering gear rack guide block) | 90501-23007 · 90501-29007 |
| 45523C | Spacer (for rack guide block) | 90560-23003 · 90560-23007 |
| 45523D | Rack guide block seat | 44277-20030 |
| 45524 | Steering rack guide block spring cover | 45524-16010 · 45524-20011 |
| 45524A | Nut (for steering rack guide spring cover) | 90179-36002 |
| 45535 | No. 1 steering rack dust cover | 45535-32010 |
| 45535A | Clamp (for steering rack dust boot) | 90461-10524 · 90949-01021 |
| 45535B | Clamp (for steering rack dust boot) | 90467-18003 |
| 45536 | No. 2 steering rack dust cover | 45536-14020 |
| 45537A | Claw washer (for steering rack end lock) | 90214-14002 · 90214-14004 |
| 45538 | Steering rack dust boot fixing | 45538-32010 |
| 45539 | No. 1 rear steering control cable guide | 45539-32020 |
| 45539A | Clamp (for rack end dust seal) | 90467-18003 |
| 45539B | Positioning ring (for rack end dust seal) | 90522-32011 |
| 45541 | steering pinion | 45541-32020 · 45541-32030 · 45541-32040 |
| 45541A | Upper radial ball bearing (for steering pinion) | 90363-15006 |
| 45541B | Lower radial ball bearing (for steering pinion) | 90363-15005 |
| 45545 | Pinion Bearing Adjustment Screw | 45545-20010 · 45545-22010 |
| 45545A | Nut (for pinion bearing adjustment screw) | 90179-42001 |
| 45700E | Steering damper assembly | 45700-32010 |
| 45721A | No. 2 steering damper bracket | 45721-32010 · 45721-32020 |
