Toyota CAMRY Front Drive Shaft — Figure 4302

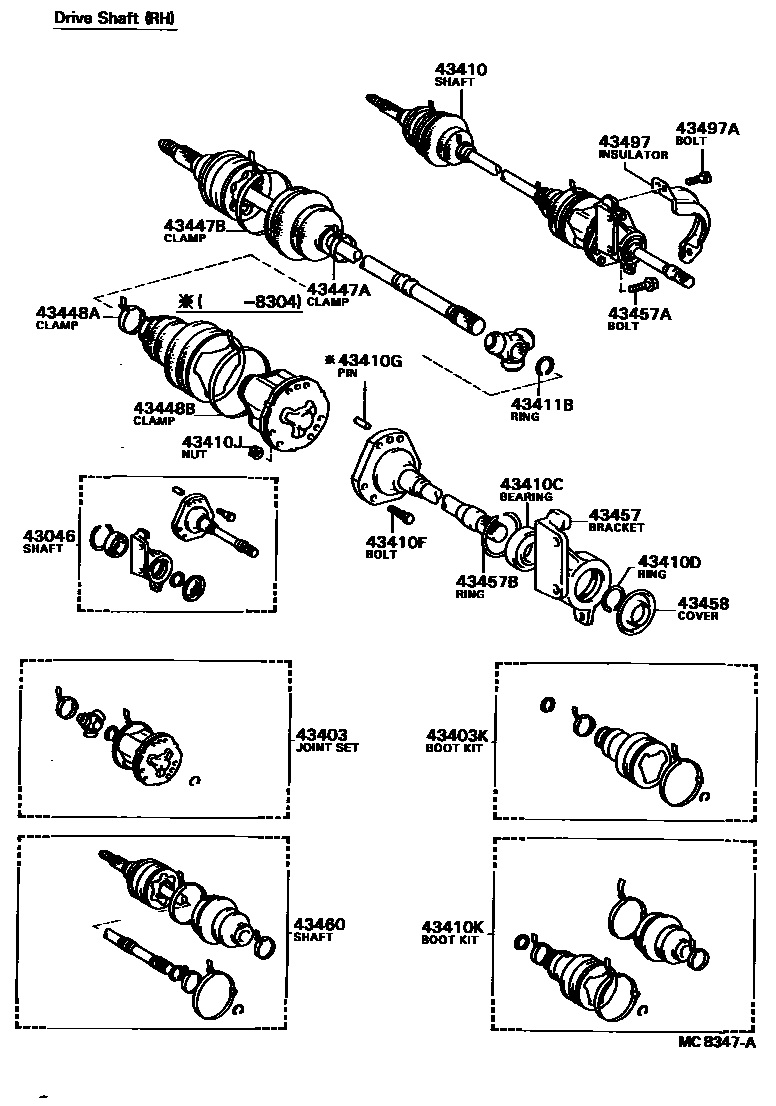

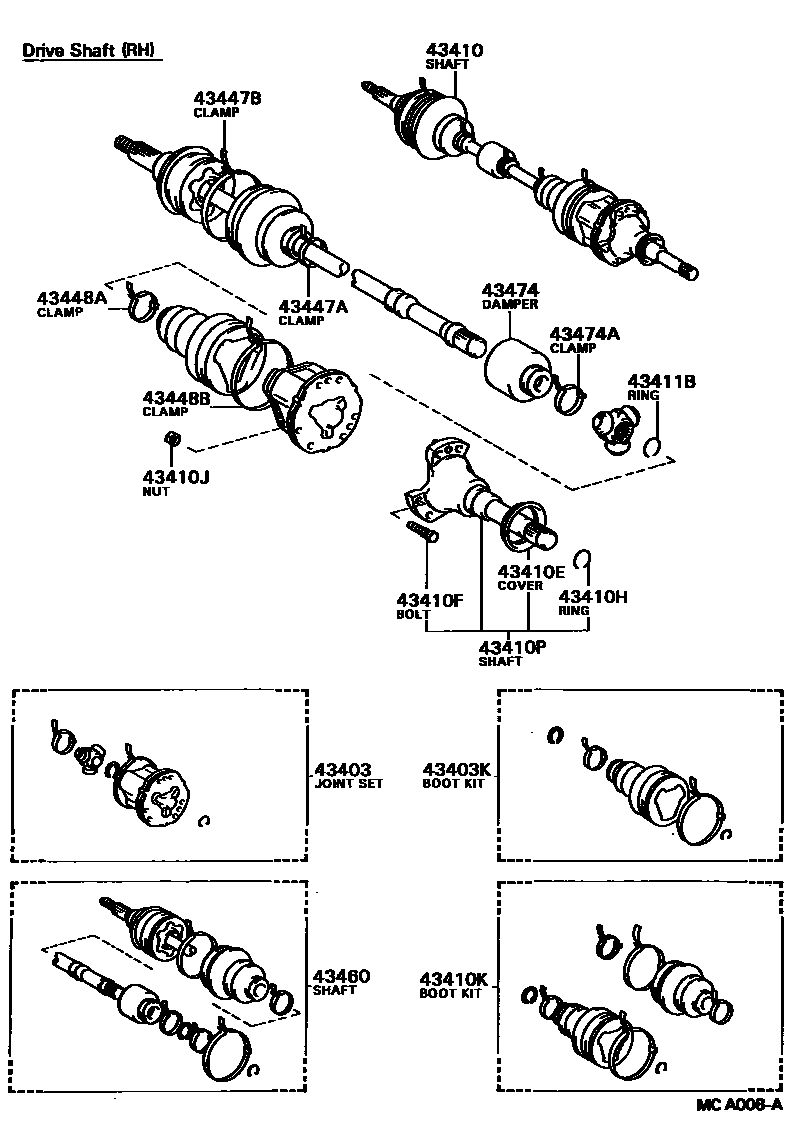

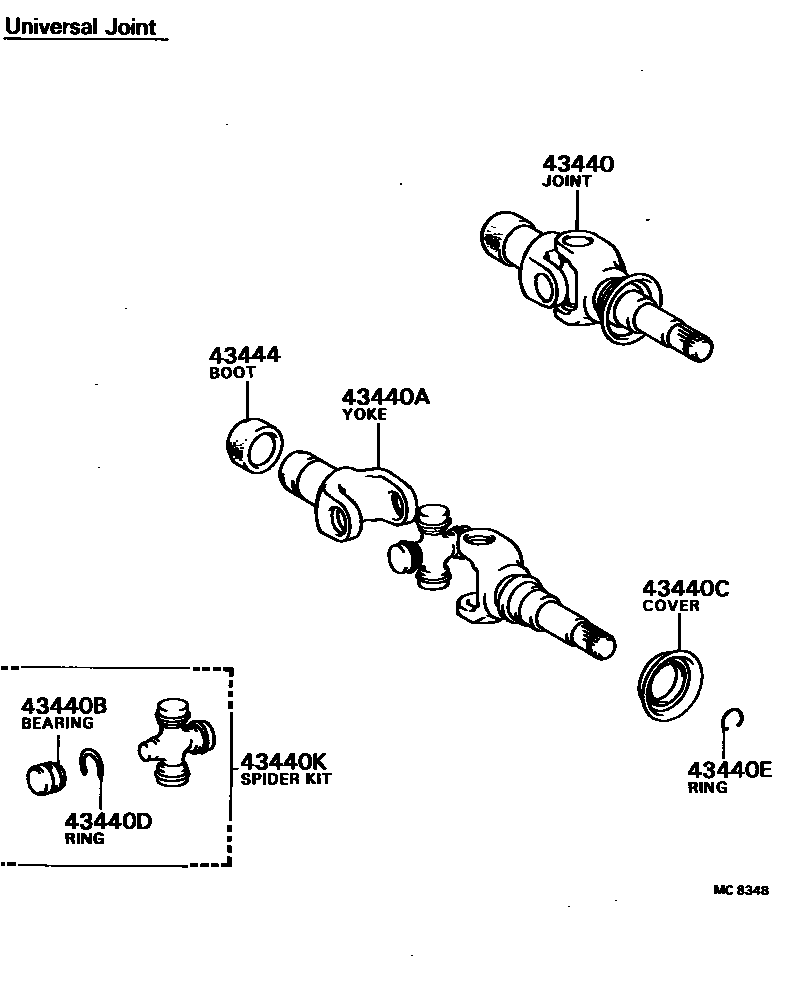

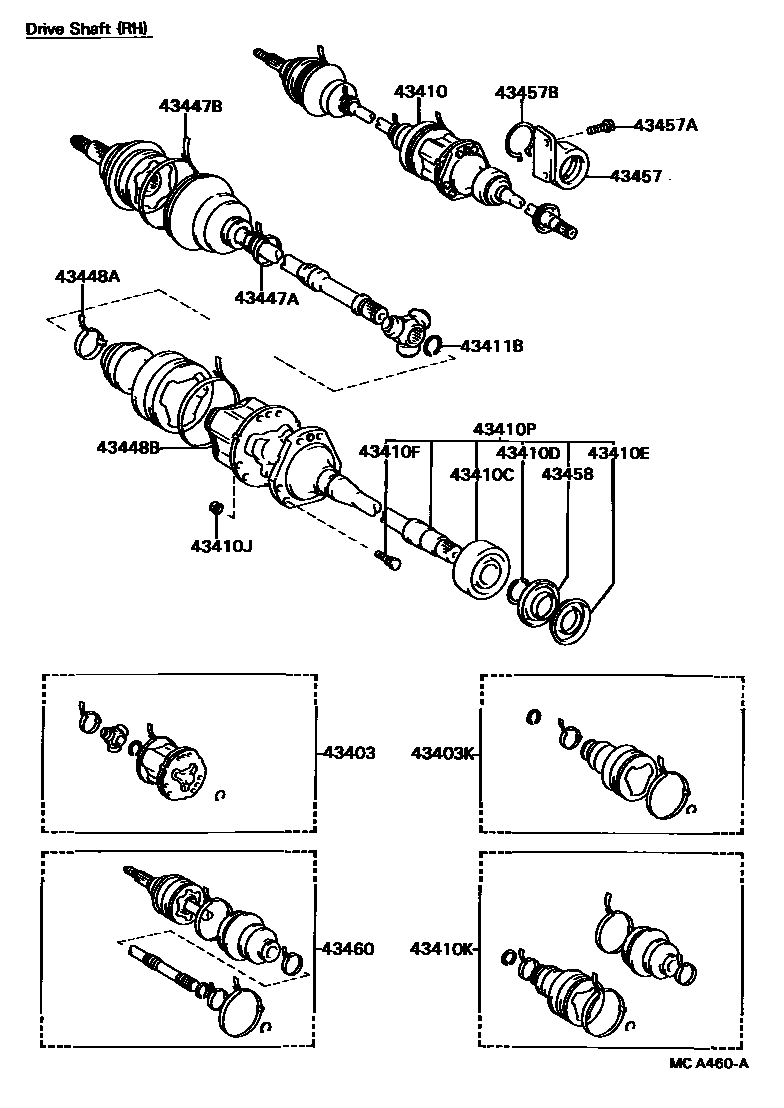

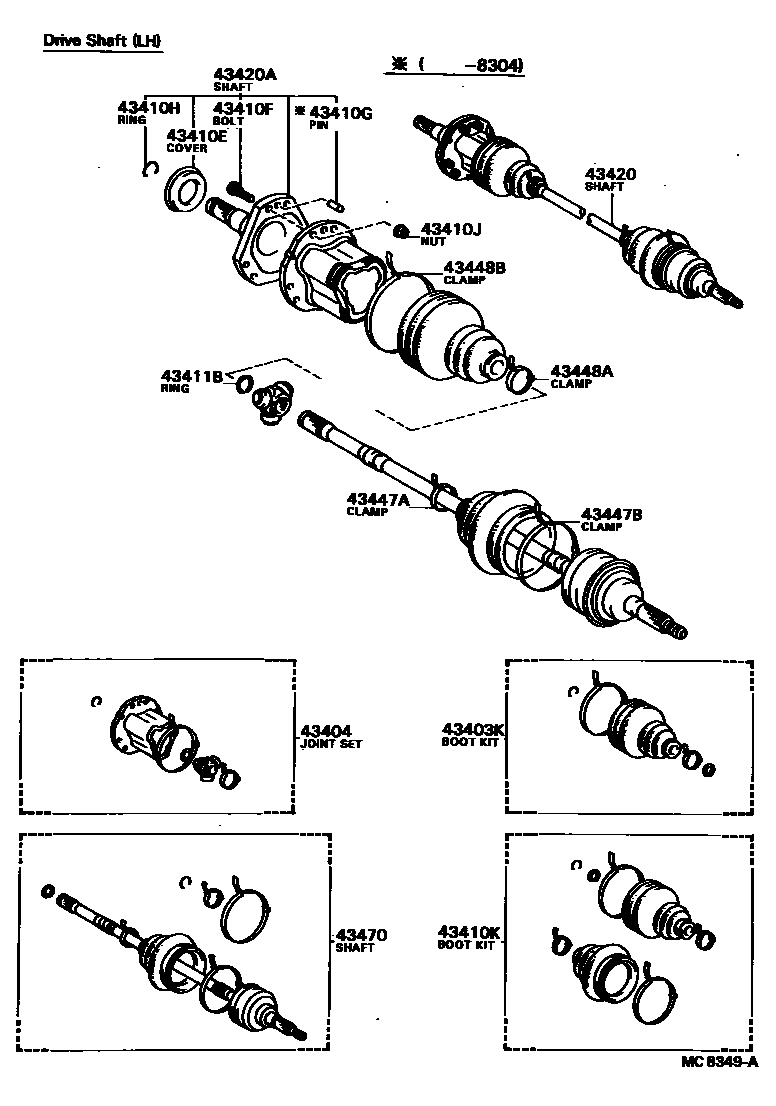

Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 5 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43046 | Front drive shaft bearing sub-assembly | 43046-32010 |
| 43403 | Right front axle inner universal joint assembly | 43403-39016 |
| 43403K | Front drive shaft inner universal joint fixed dust boot assembly | 04438-32011 |
| 43404 | Left front axle inner universal joint assembly | 43403-39016 |
| 43410 | Right front driveshaft assembly | 43410-32011 · 43410-32020 · 43410-32021 · 43410-32022 · 43410-32030 · 43410-32031 |
| 43410C | Bearings (for front driveshaft) | 90369-32001 · 90369-36001 |
| 43410D | Shaft snap ring (for front drive shaft) | 90520-29003 · 90520-33008 |
| 43410E | Dust cover (for front drive shaft) | 41336-20011 · 41336-32010 · 41336-32020 |
| 43410F | Serrated threaded bolt (for front drive shaft) | 90114-08006 |
| 43410G | Direct sales (for front driveshaft) | 90250-08007 |
| 43410H | Hole snap ring (for front driveshaft) | 90521-27005 |
| 43410J | Nut (for front driveshaft) | 90179-08053 |
| 43410K | Front drive shaft dust boot assembly | 04438-32020 · 04438-32021 · 04438-32030 · 04438-32031 |
| 43410P | Right front drive shaft sub-assembly | 41304-20010 · 43049-32020 |
| 43411B | Inner shaft snap ring (for front axle inner shaft) | 90520-22005 |
| 43420 | Left front drive shaft assembly | 43420-32011 · 43420-32012 |
| 43420A | Left front drive shaft assembly | 41309-32010 |
| 43440 | Universal joint assembly | 43440-32010 |
| 43440A | Universal joint fork assembly | 37302-32010 |
| 43440B | Universal joint cross shaft bearing | 37402-30010 · 37402-30020 |
| 43440C | Dust cover (for universal joint) | 41336-32010 |
| 43440D | Shaft snap ring (for universal joint cross shaft bearings) | 90520-26233 · 90520-26234 · 90520-26235 |
| 43440E | Hole snap ring (for universal joint) | 90521-27005 |
| 43440K | Universal joint cross shaft assembly | 04371-30020 |
| 43444 | Spline dust cover | 43444-32010 |
| 43447A | Clamp No. 1 (used to fix the universal joint dust cover on the outside of the front axle) | 42345-14010 |
| 43447B | Clamp No. 2 (used to fix the universal joint dust cover on the outside of the front axle) | 90463-04022 · 90949-01076 |
| 43448A | Clamp No. 1 (used to fix the universal joint dust cover on the inside of the front axle) | 42345-14010 |
| 43448B | No. 2 clip (used to fix the universal joint dust cover on the inside of the front axle) | 42345-14020 |
| 43457 | drive shaft bearing bracket | 43457-20020 · 43457-20021 · 43457-32010 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10051 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-69001 · 90521-75002 |
| 43458 | Front drive shaft dust cover | 43458-20011 · 43458-32010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-39016 · 43460-39017 · 43460-39018 · 43460-39019 · 43470-39016 · 43470-39017 |
| 43470 | Left front outer drive universal joint shaft assembly | 43460-39016 · 43470-39016 · 43470-39017 |
| 43474 | drive shaft damper | 43474-32010 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-14010 |
| 43497 | Bearing bracket heat insulation pad | 43497-32010 · 43497-32011 |
| 43497A | Bolts (for bearing support insulation pads) | 90119-08223 |
