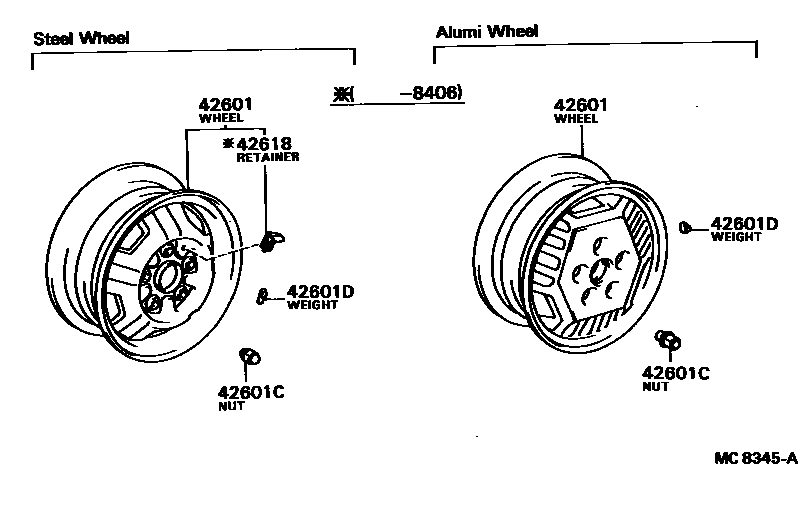

Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42601-32010 · 42611-32020 · 42611-32021 · 42611-32060 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 |
| 42601D | Balance weight (for spoked wheels) | 90942-03017 · 90942-03020 · 90942-03022 · 90942-03025 · 90942-03027 · 90942-03029 · 90942-03031 · 90942-03041 · 90942-03092 · 90942-03093 · 90942-03094 · 90942-03095 · 90942-03096 · 90942-03097 · 90942-03098 · 90942-03099 · 90942-03100 · 90942-03101 · 90942-03102 · 90942-03108 · 90942-03109 · 90942-03110 · 90942-03111 · 90942-03112 · 90942-03113 · 90942-03114 · 90942-03115 · 90942-03116 · 90942-03117 · 90942-03118 · 90942-03161 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-32010 · 42603-32020 · 42603-32030 · 42638-32040 |
| 42611A | Tubeless tire assembly or tubeless tire | 42652-12390 · 42652-12610 · 42652-14140 · 42652-14180 · 42652-14290 · 42652-20140 · 42652-32090 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42618 | wheel cover fixings | 42618-32010 |
| 42621 | wheel cover | 42621-32010 |
| 42624 | wheel cover ring | 42624-32020 |
