Toyota CAMRY 换档拨叉和换档杆轴(MTM) — Figure 3307

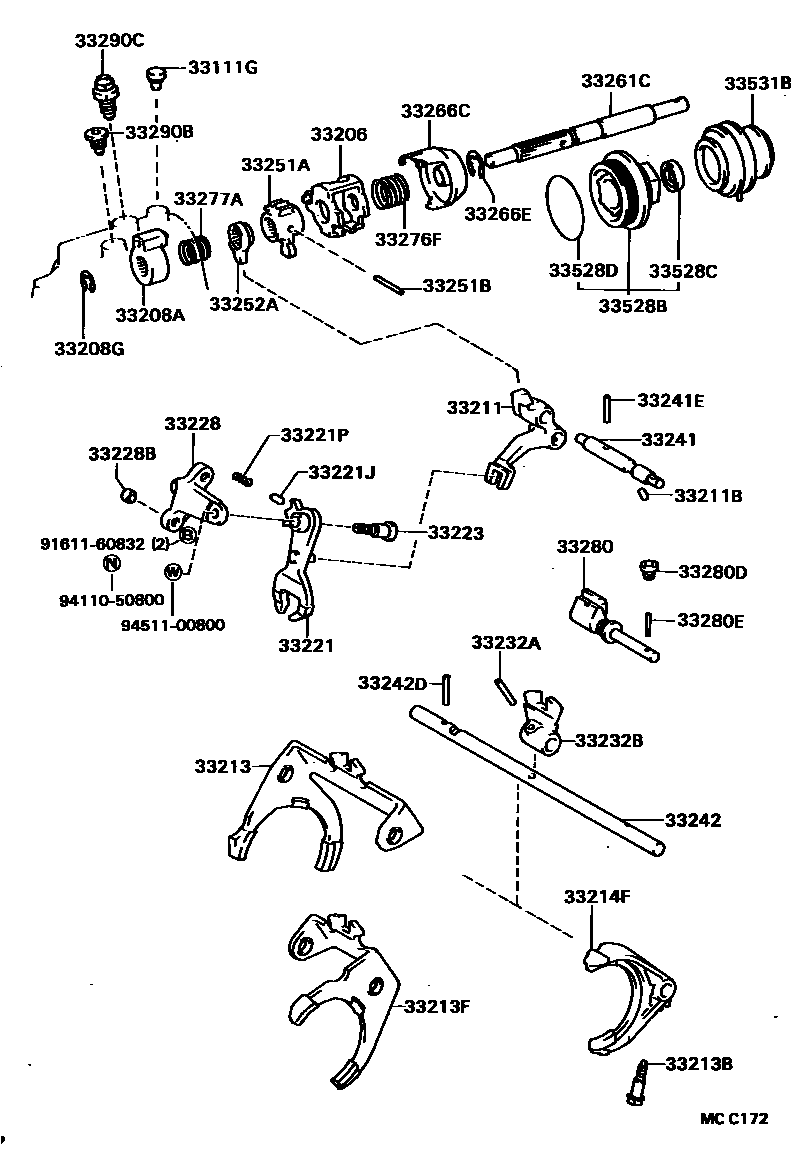

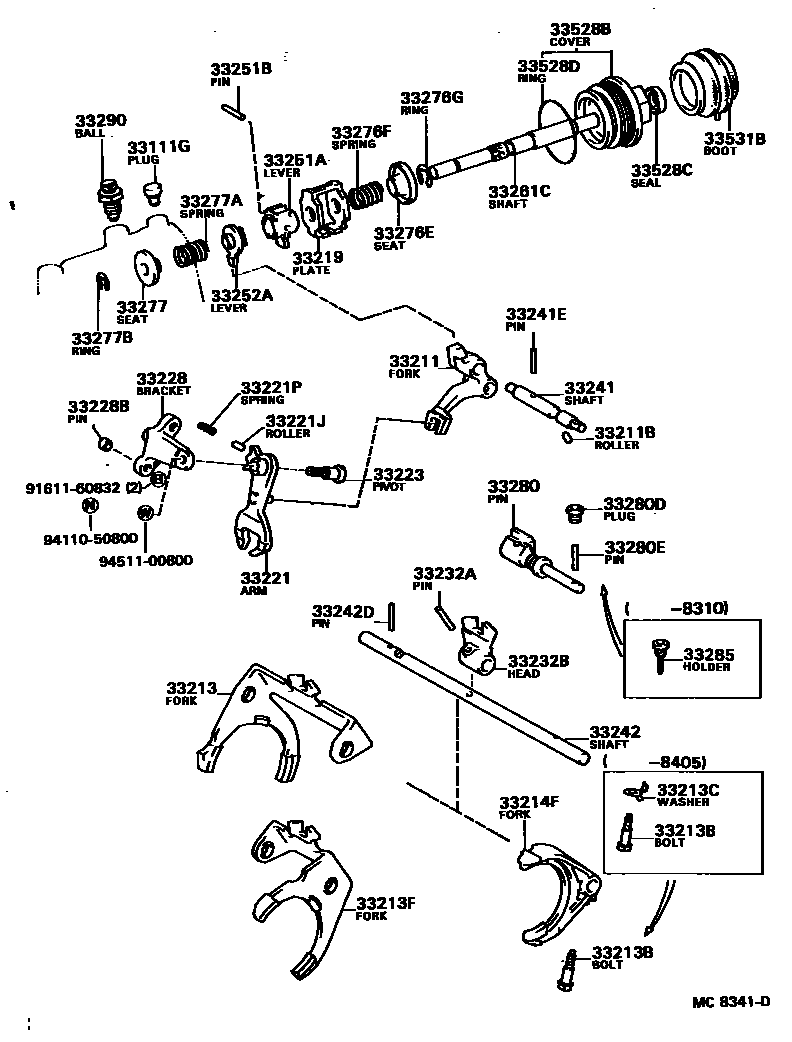

Toyota CAMRY EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 2 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111G | Breather plug (for manual transmission) | 90930-03080 |
| 33206 | Shift interlock plate sub-assembly | 33206-32020 |
| 33208A | Reverse gear positioning pin sub-assembly | 33208-32020 |
| 33208G | E-ring (for reverse gear positioning pin) | 90523-14001 |
| 33211 | Reverse Shift Fork | 33211-32010 |
| 33211B | Roller (for reverse shift fork) | 90361-08002 |
| 33213 | First and second gear shift forks | 33210-32010 |
| 33213B | Bolt (for securing shift fork) | 90105-06065 · 90113-06006 |
| 33213C | Locking washer (for securing shift fork) | 90215-08003 |
| 33213F | Third and fourth gear shift forks | 33220-32010 |
| 33214F | Five-speed shift fork | 33214-32010 · 33214-32011 |
| 33219 | Shift fork lock plate | 33219-32010 |
| 33221 | Reverse shift arm | 33201-32010 |
| 33221J | Roller (for reverse shift arm) | 90361-08002 |
| 33221P | Compression spring (for reverse shift arm roller) | 90501-10048 |
| 33223 | shift arm pivot | 33223-32010 |
| 33228 | Reverse shift arm bracket | 33228-32010 |
| 33228B | Ring pin (for reverse shift arm bracket) | 90253-11001 |
| 33232A | Slotted spring pin (for securing shift guide block) | 90254-05001 |
| 33232B | Five speed transmission guide block | 33232-32010 · 33232-32011 |
| 33241 | Reverse shift fork shaft | 33243-32010 |
| 33241E | Slotted spring pin (for reverse shift fork shaft) | 90254-05001 |
| 33242 | No. 1 shift fork shaft | 33242-32010 |
| 33242D | Slotted spring pin (for shift fork shaft) | 90254-05001 |
| 33251A | Internal shift lever No. 1 | 33251-32010 · 33251-32030 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05007 |
| 33252A | Internal shift lever No. 2 | 33252-32010 · 33252-32030 |
| 33261C | shift lever shaft | 33261-32011 · 33261-32030 |
| 33266C | shift interlock plate | 33266-32020 |
| 33266E | E-ring (with shift interlock plate) | 90523-12003 |
| 33276E | No. 1 gear selector spring seat | 33276-32010 |
| 33276F | No. 1 compression spring (for gear selector return) | 90501-14092 · 90501-16072 |
| 33276G | E-ring (for No. 1 gear selector spring seat) | 90523-14001 |
| 33277 | No. 2 gear selector spring seat | 33277-32010 |
| 33277A | No. 2 compression spring (for gear selector return) | 90501-15009 · 90501-18037 |
| 33277B | E-ring (for No. 2 gear selector spring seat) | 90523-12003 |
| 33280 | Reverse gear positioning pin assembly | 33280-32010 · 33280-32011 |
| 33280D | Headed straight thread plug (for reverse gear locating pin) | 90341-10065 |
| 33280E | Slotted spring pin (for reverse gear locating pin) | 90254-04005 |
| 33285 | Reverse gear positioning pin retainer | 33285-32010 |
| 33290 | No. 1 locking steel ball assembly | 33290-32010 |
| 33290B | No. 2 locking steel ball assembly | 33290-32020 |
| 33290C | No. 1 locking steel ball assembly | 33290-32011 |
| 33528B | control shaft cover | 33506-32020 · 33506-32040 |
| 33528C | Oil seal (for control shaft cover) | 90311-18004 |
| 33528D | O-ring (used to control shaft cover) | 90301-65004 |
| 33531B | Dust boot (for shift lever shaft) | 33531-32011 |
