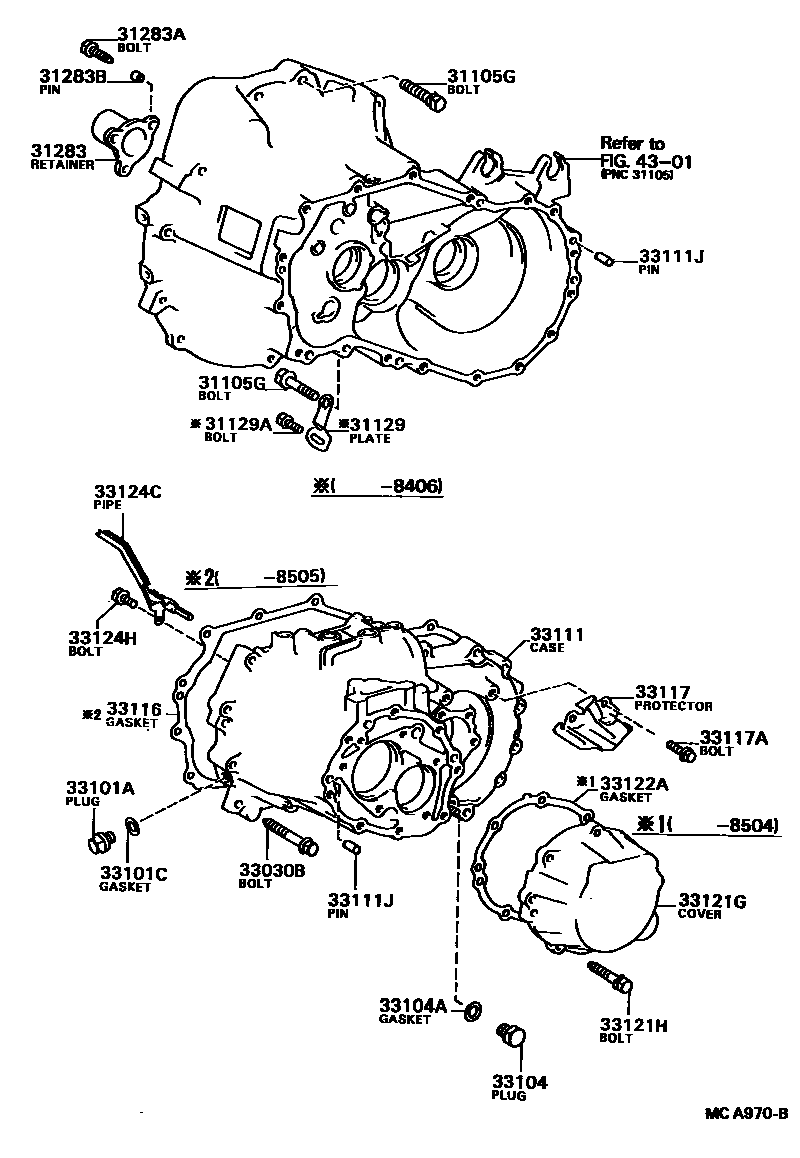

Toyota CAMRY 离合器壳和变速器壳(MTM) — Figure 3302
Toyota CAMRY EPC diagram 3302, 离合器壳和变速器壳(MTM), with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 90105-08040 · 90105-10055 · 90105-10077 · 90119-12168 · 91651-41022 |
| 31129 | Bolt locking plate (MTM) | 31129-32010 |
| 31129A | Bolt (for bolt locking plate) | 90105-08040 |
| 31283 | Clutch release bearing hub retaining ring | 31283-32010 |
| 31283A | Bolt (for clutch release bearing hub retaining ring) | 90105-06023 |
| 31283B | Ring pin (for clutch release bearing hub retaining ring) | 90253-08002 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 90105-08042 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18002 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-18007 · 90430-18008 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 · 90341-18057 |
| 33104A | Drain plug gasket (MTM) | 90430-18007 · 90430-18008 |
| 33111 | Manual transmission housing | 33111-32010 · 33111-32011 · 33111-32012 · 33111-32013 · 33111-32014 |
| 33111J | Direct sales (for manual transmission) | 90250-08054 |
| 33116 | manual transmission gasket | 33116-32010 · 33116-32011 |
| 33117 | manual transmission protector | 33117-32010 · 33117-32011 |
| 33117A | Bolts (for manual transmission guard) | 90105-08040 |
| 33121G | manual gearbox cover | 33102-32010 · 33102-32011 |
| 33121H | Bolt with washer (for gearbox cover) | 90105-08057 · 90105-08089 |
| 33122A | Manual transmission cover gasket | 33122-32010 · 33122-32011 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-32010 · 33124-32011 |
| 33124H | Bolt (for oil collection pipe) | 91651-60618 |
