Toyota CAMRY 离合器和分离叉 — Figure 3101

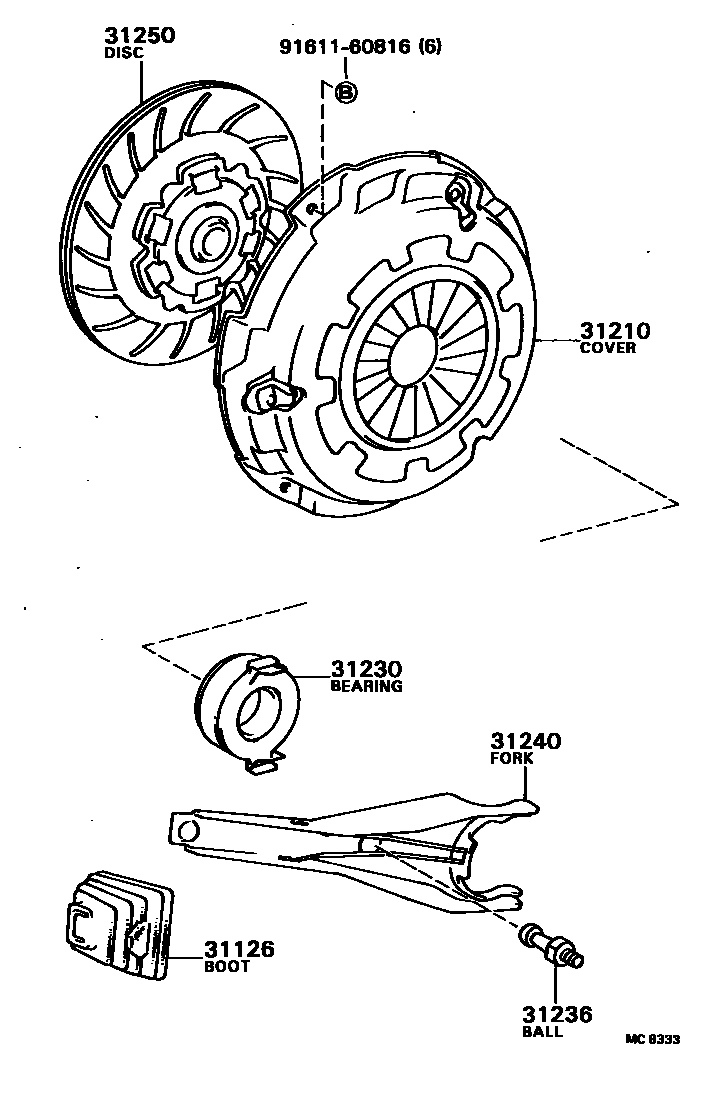

Toyota CAMRY EPC diagram 3101, 离合器和分离叉, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-32010 |
| 31210 | Clutch cover assembly | 31210-32010 · 31210-32020 · 31210-32080 |
| 31230 | Clutch release bearing assembly | 31230-32020 · 31230-32040 |
| 31236 | Breakaway fork steel ball | 31236-30030 |
| 31240 | Clutch release fork assembly | 31204-32010 |
| 31250 | Clutch disc assembly | 31250-32010 · 31250-32021 · 31250-32023 · 31250-32024 · 31250-32025 · 31250-32030 · 31250-32031 · 31250-32032 · 31250-32050 · 31250-32060 |
