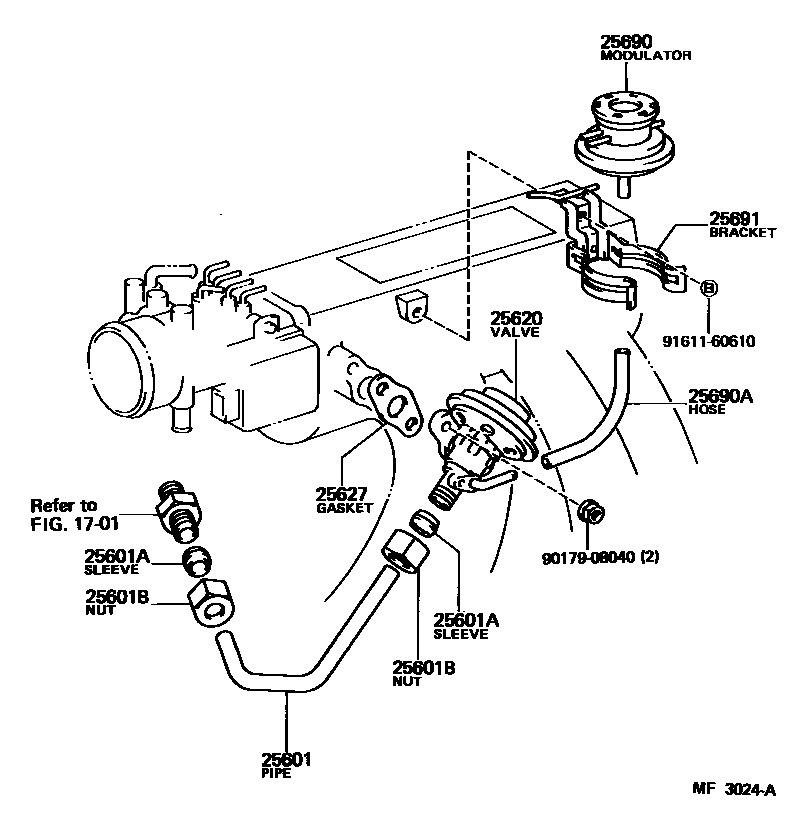

Toyota CAMRY 废气再循环系统 — Figure 2501
Toyota CAMRY EPC diagram 2501, 废气再循环系统, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25611-74010 |
| 25601A | No. 1 EGR tube ball sleeve | 90410-12042 |
| 25601B | No. 1 EGR pipe connecting nut | 90402-20073 |
| 25620 | EGR valve assembly | 25620-74040 · 25620-74051 |
| 25627 | EGR valve gasket | 25627-74010 |
| 25690 | EGR vacuum regulator assembly | 25870-74030 · 25870-74040 · 25870-74050 |
| 25690A | Hoses (for EGR vacuum regulator) | 90445-11065 |
| 25691 | EGR vacuum regulator bracket | 25691-74010 |
