Toyota CAMRY 警示铭牌和名称铭牌(发动机) — Figure 1709

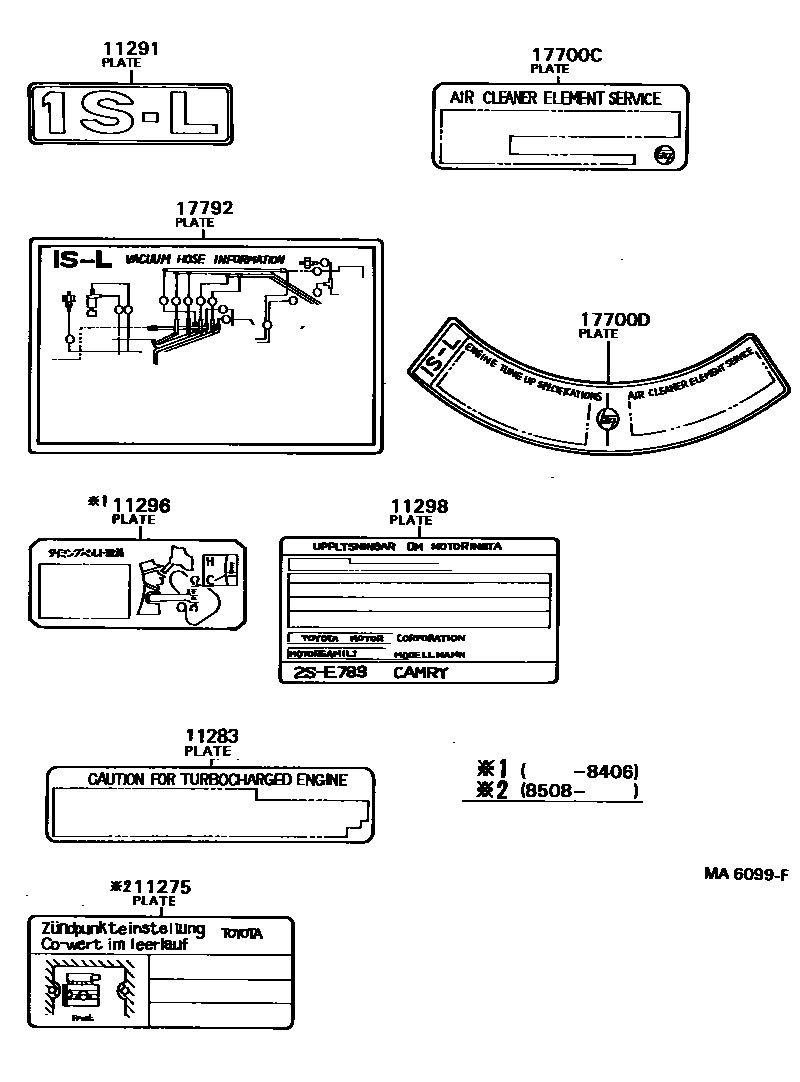

Toyota CAMRY EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11275 | Adjust ignition timing warning nameplate | 11275-74030 |
| 11283 | Turbocharger warning plate | 11294-64020 |
| 11291 | Engine name plate | 11291-63030 · 11291-64020 · 11291-64050 · 11291-74010 |
| 11296 | Timing belt warning plate | 11296-54010 |
| 11298 | Emission control information plate | 11298-74030 · 11298-74031 · 11298-74032 · 11298-74040 · 11298-74041 · 11298-74042 · 11298-74050 · 11298-74100 · 11298-74190 |
| 17700C | Air filter warning plate (for engine models) | 17791-28010 · 17791-74010 |
| 17700D | Engine warning plate | 11293-63020 · 11293-64030 · 11293-74030 |
| 17792 | Engine vacuum hose information plate | 17792-63040 · 17792-63041 · 17792-74031 · 17792-74050 |
