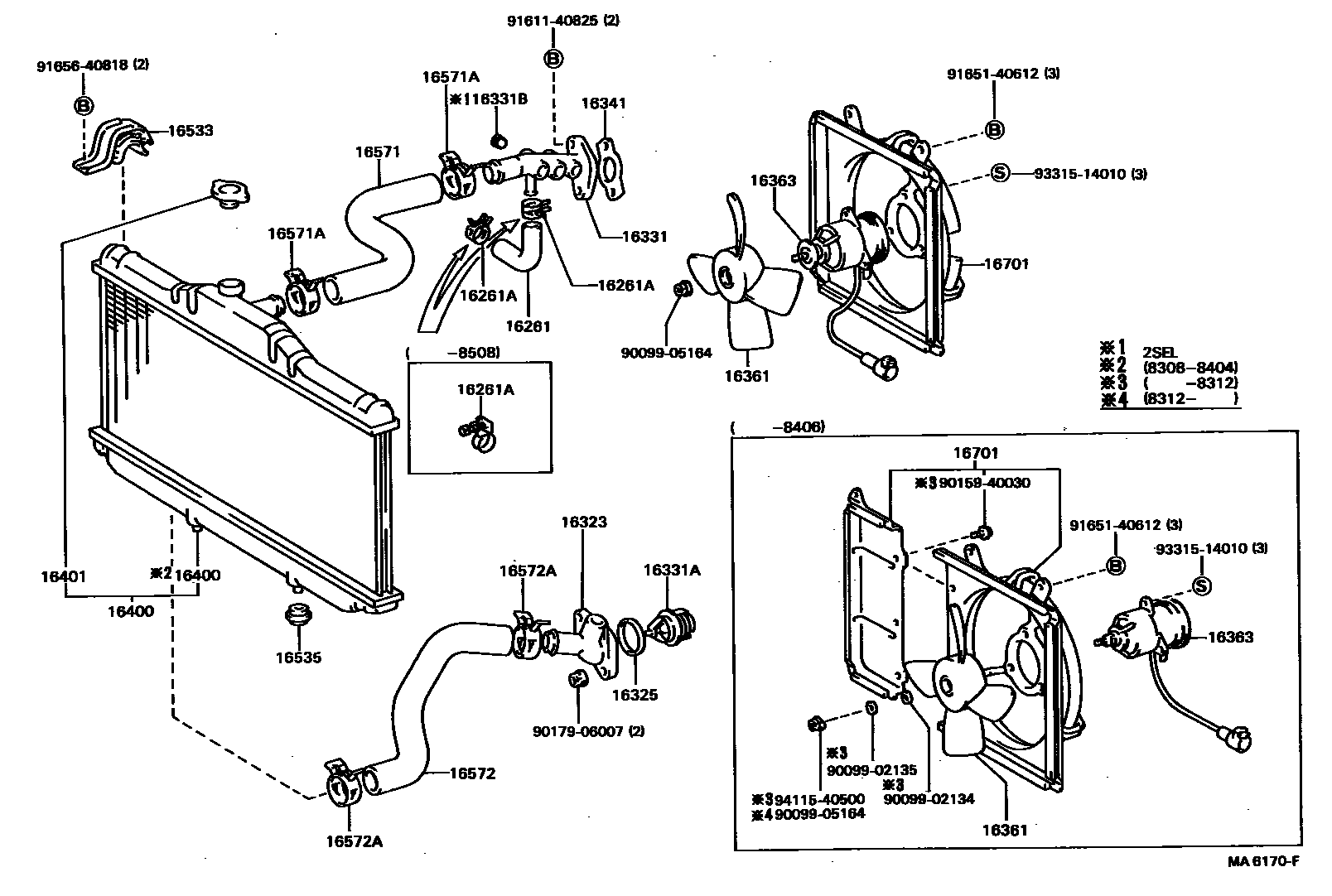

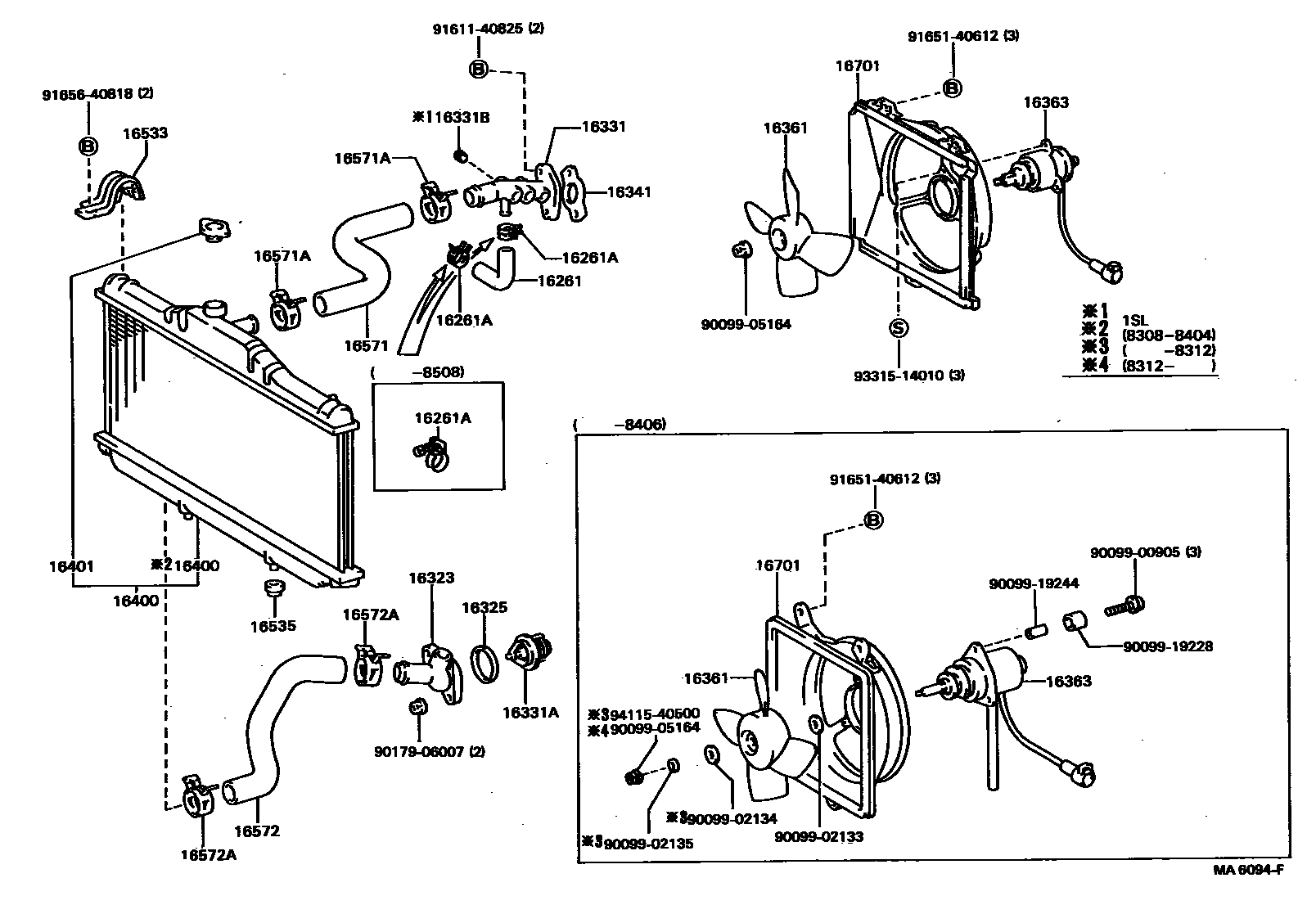

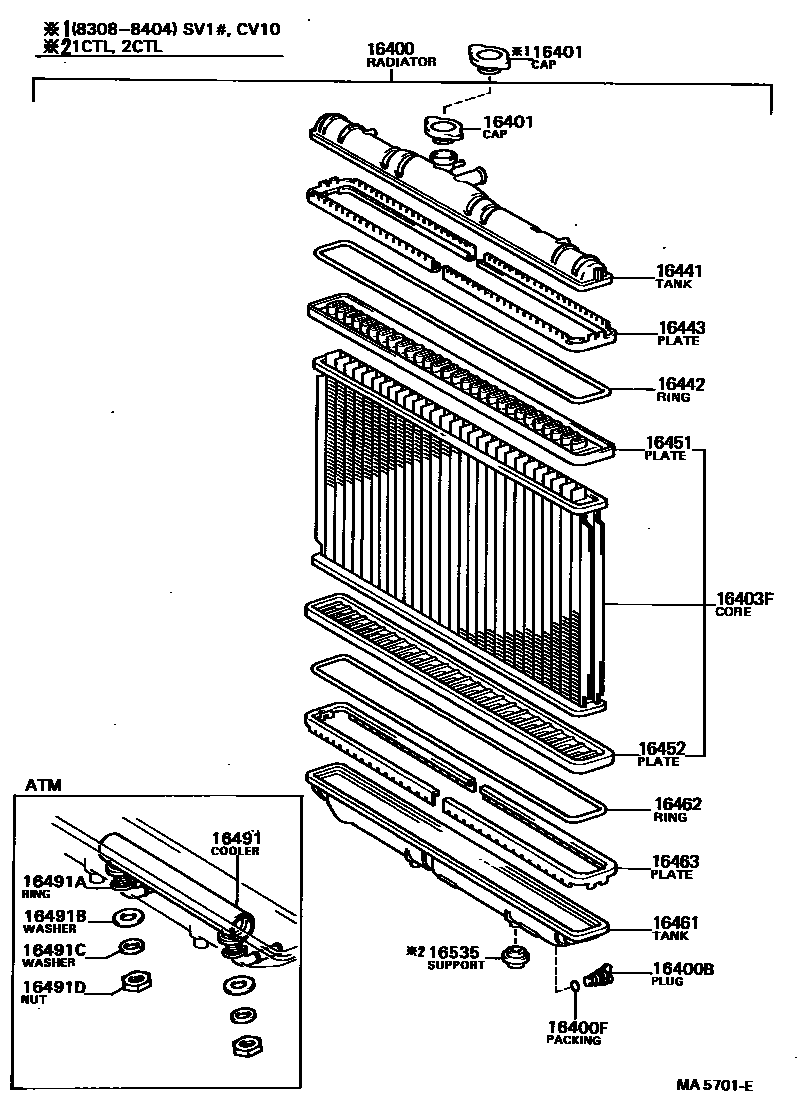

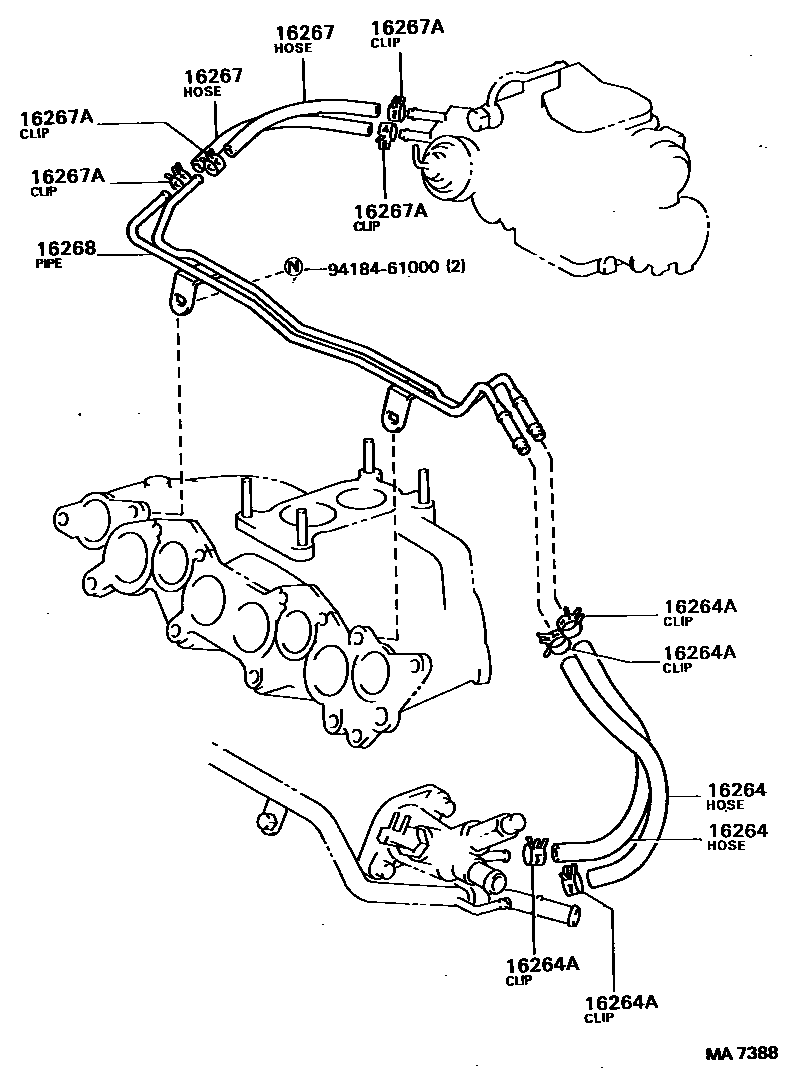

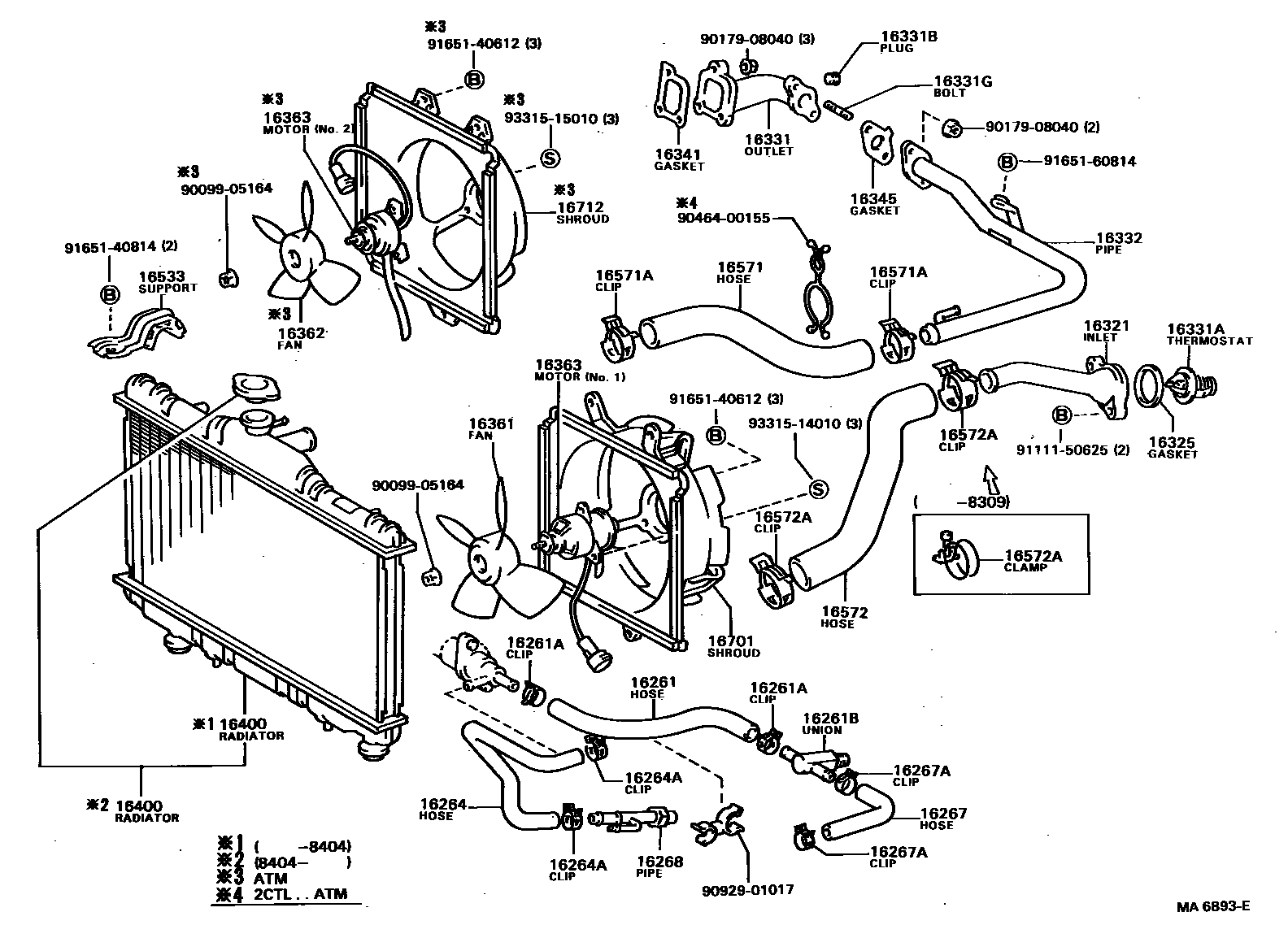

Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603
Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 5 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-63010 · 16261-64030 · 16261-64060 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-15004 · 90467-21001 · 96111-10250 · 96112-10250 |
| 16261B | Connector (for water bypass hose) | 90404-53050 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-64030 · 16264-64031 · 16264-64060 · 99555-10230 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-13001 · 90467-15004 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-64010 · 99555-00140 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-11009 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-63010 · 16268-64020 · 16268-64040 |
| 16321 | water inlet | 16321-64020 |
| 16323 | HOUSING, WATER INLET | 16323-63020 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-63010 |
| 16331 | Water outlet | 16331-63050 · 16331-63060 · 16331-63070 · 16331-63080 · 16331-63090 · 16331-64030 |
| 16331A | thermostat | 90916-03046 |
| 16331B | Screw plug (for water outlet) | 90344-53011 |
| 16331G | Stud bolts (for water inlet) | 92122-60816 |
| 16332 | No. 1 outlet pipe | 16332-64010 |
| 16341 | GASKET, WATER OUTLET | 16341-63010 · 16341-64010 |
| 16345 | Outlet pipe gasket | 16345-64020 |
| 16361 | Fan | 16361-63020 · 16361-63030 · 16361-63040 · 16361-64020 |
| 16362 | Fan No. 2 | 88453-32010 |
| 16363 | cooling fan motor | 16363-16030 · 16363-63020 · 16363-63030 · 16363-64020 · 16363-64030 |
| 16400 | Radiator assembly | 16400-63030 · 16400-63040 · 16400-63120 · 16400-64110 · 16400-64120 · 16410-63030 · 16410-63040 · 16410-64090 · 16410-64100 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-63010 |
| 16403F | Radiator core sub-assembly | 16403-15190 · 16403-63030 · 16403-63040 · 16403-64080 · 16403-64111 · 16403-74120 · 16403-74180 |
| 16441 | Radiator water tank | 16441-63030 · 16441-64070 |
| 16442 | O-ring (for radiator tank) | 16442-63030 · 16462-63030 |
| 16443 | Radiator upper tank locking plate | 16443-15321 · 16443-63030 · 16463-15320 |
| 16451 | Radiator core upper plate | 16451-63030 · 16452-64070 |
| 16452 | Radiator core lower plate | 16452-63030 · 16452-64070 |
| 16461 | Radiator lower tank | 16461-63030 · 16461-63040 · 16461-64070 · 16461-64080 |
| 16462 | O-ring (for radiator lower tank) | 16462-63030 |
| 16463 | Radiator lower tank locking plate | 16463-15320 · 16463-63030 |
| 16491 | Oil cooler (for ATM) | 16491-63040 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-35080 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-15130 |
| 16491C | Spring washer (for automatic transmission oil cooler) | 16494-15130 |
| 16491D | Nut (for automatic transmission oil cooler) | 16496-15130 |
| 16533 | Radiator upper bracket | 16505-63010 · 16533-63040 · 16533-63070 · 16533-64020 · 16533-64021 |
| 16535 | Radiator lower support | 16533-63050 · 16535-63030 · 16535-64020 · 90480-40007 |
| 16571 | Radiator water inlet hose | 16571-63020 · 16571-64070 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-33002 · 90467-34001 |
| 16572 | Radiator outlet hose | 16572-63020 · 16572-64060 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-33002 · 90467-34001 · 90467-34002 · 90467-37001 · 96111-10450 |
| 16701 | Fan cover sub-assembly | 16711-63030 · 16711-63050 · 16711-63080 · 16711-64070 |
| 16712 | No. 2 fan cover | 16712-64040 |
