Toyota CAMRY Camshaft & Valve — Figure 1302

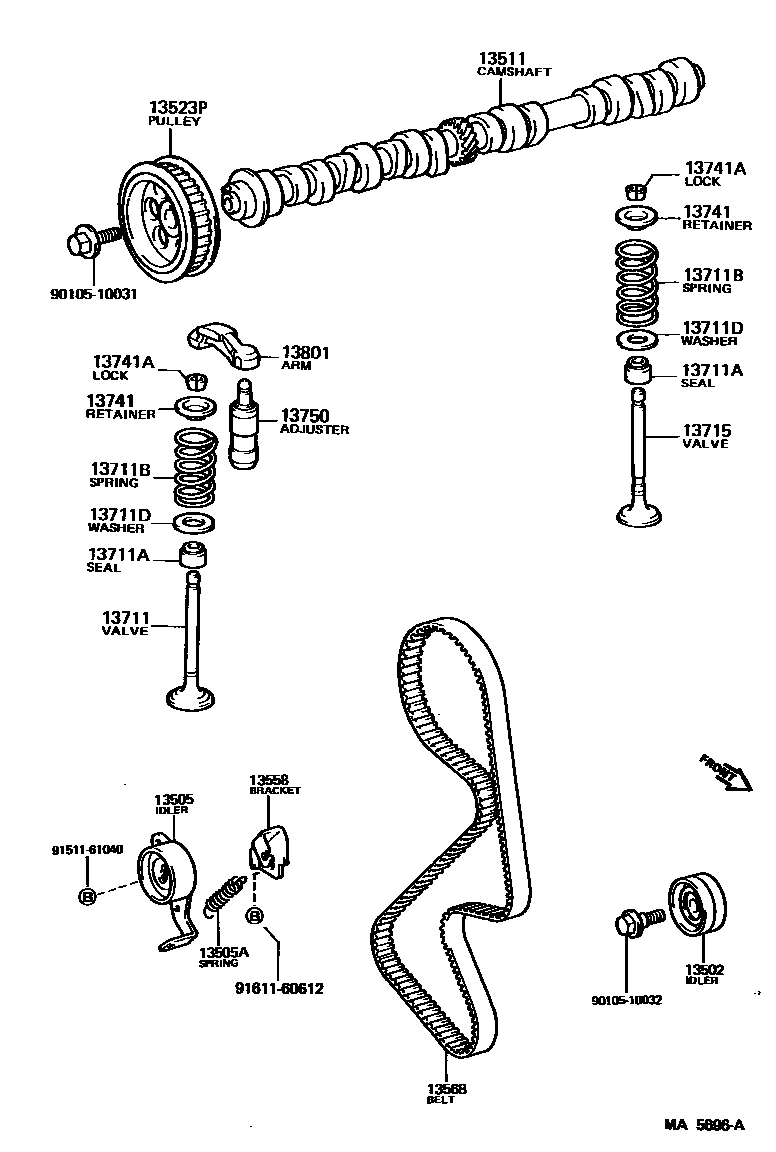

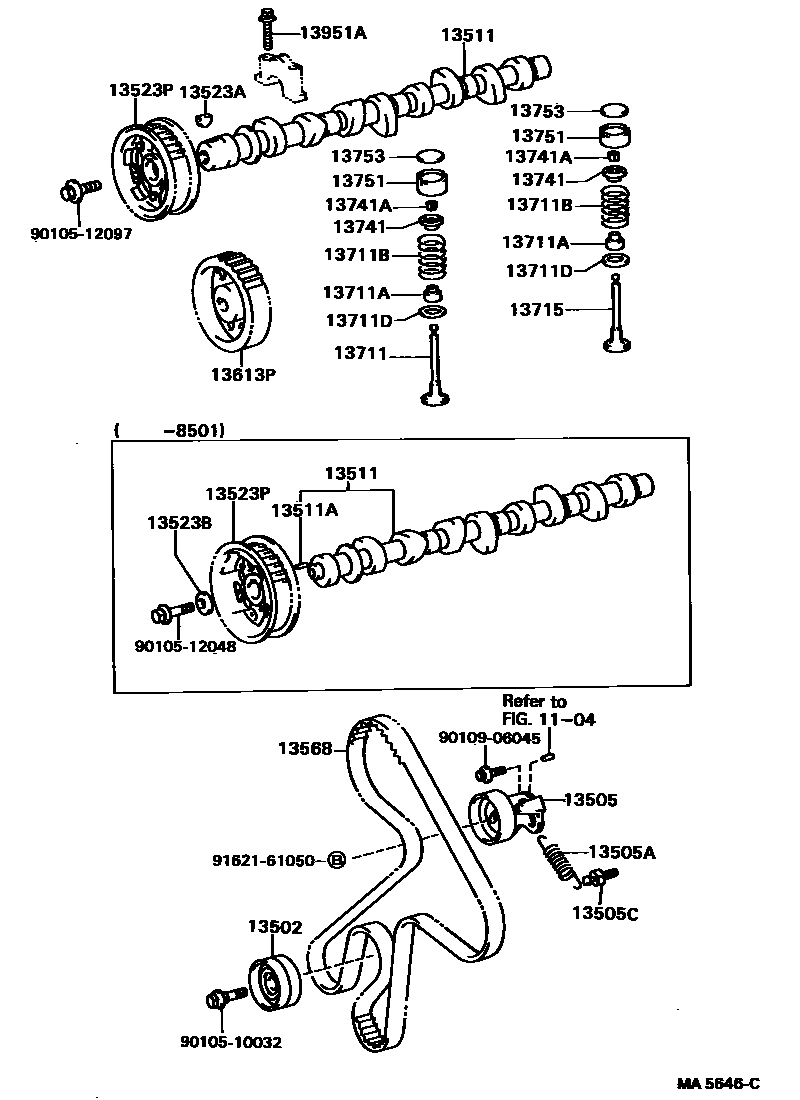

Toyota CAMRY EPC diagram 1302, Camshaft & Valve, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-63010 · 13503-64020 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-63010 · 13505-64020 |
| 13505A | Tension spring (for idler pulley) | 90506-20039 · 90507-18006 |
| 13505C | Pin (for idler tension spring) | 13575-64010 |
| 13511 | camshaft | 13501-63010 · 13511-64020 · 13511-64021 · 13511-64040 |
| 13511A | Direct pin (for camshaft locking pin) | 90250-05121 |
| 13523A | Half-moon pin (for timing gear) | 90280-05004 |
| 13523B | Flat washer (for timing gear) | 90201-13019 |
| 13523P | Camshaft timing pulley | 13051-64010 · 13051-64011 · 13523-63010 · 13523-63020 |
| 13558 | Spring bracket (for idler pulley) | 13558-63010 |
| 13568 | timing belt | 13568-63020 · 13568-64010 · 13568-64011 |
| 13613P | Fuel injection pump drive pulley | 13613-64010 · 13613-64011 |
| 13711 | intake valve | 13711-63010 · 13711-64010 · 13711-64011 · 13711-64020 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02053 · 90913-02057 |
| 13711B | Compression spring (for inner side) | 90501-43003 · 90501-45014 |
| 13711D | Flat washer (for valve spring seat) | 90201-16010 · 90201-21002 |
| 13715 | exhaust valve | 13715-63010 · 13715-63011 · 13715-64020 · 13715-64021 · 13715-64023 · 13715-64040 |
| 13741 | Valve spring seat ring | 13740-43010 · 13741-43010 · 13741-63010 |
| 13741A | Valve spring seat lock plate | 90913-03005 · 90913-03014 |
| 13750 | Valve lash adjuster assembly | 13750-70010 |
| 13751 | valve lifter | 13751-64010 · 13751-64011 |
| 13753 | valve adjustment gasket | 13753-64010 · 13753-64030 · 13753-64050 · 13753-64070 · 13753-64090 · 13753-64110 · 13753-64130 · 13753-64150 · 13753-64170 · 13753-64190 · 13753-64210 · 13753-64230 · 13753-64250 · 13753-64270 · 13753-64290 · 13753-64310 · 13753-64330 · 13753-64350 · 13753-64370 · 13753-64390 · 13753-64410 · 13753-64430 · 13753-64450 · 13753-64470 · 13753-64490 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13811-63010 · 13811-63020 |
| 13951A | Bolts (for rocker arm bracket assembly) | 91621-60840 · 91651-60845 |
