Toyota CAMRY Standard Tools — Figure 0901

Toyota CAMRY EPC diagram 0901, Standard Tools, with 1 images and 13 PNC and OE references.

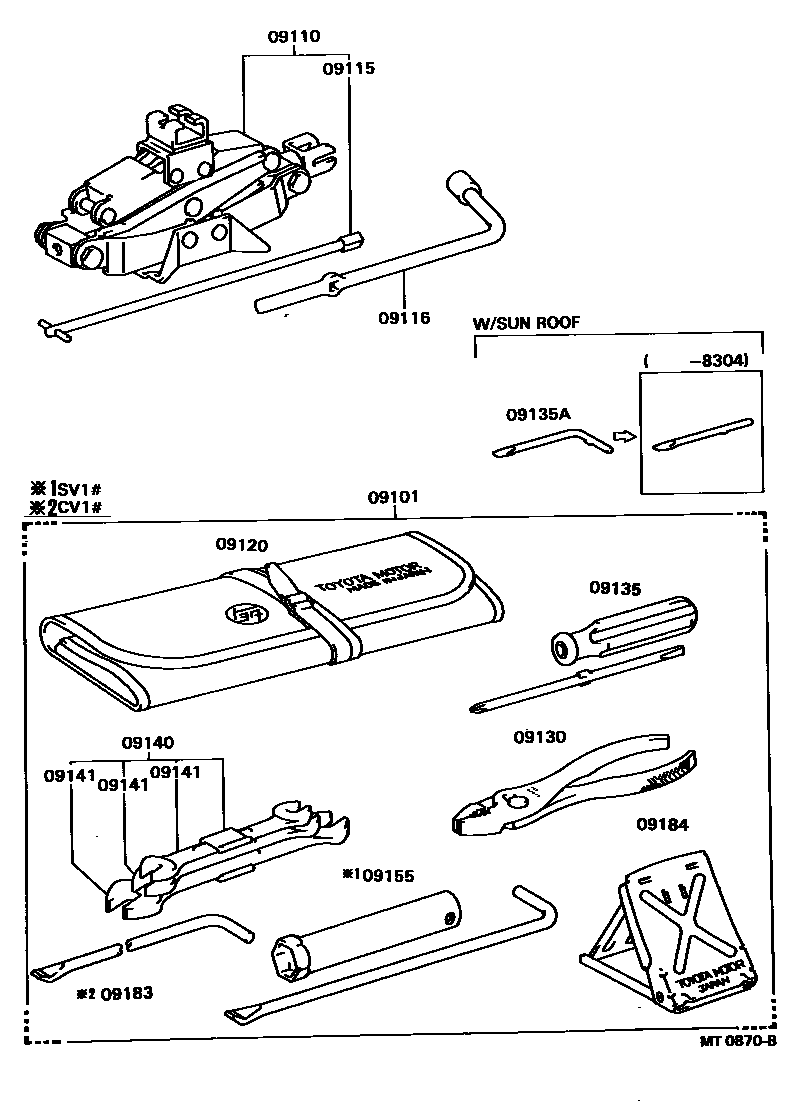

Toyota CAMRY Standard Tools EPC diagram — MT0870B
Standard Tools — MT0870B (198210 – 999999)

PNC and OE references

PNCPart nameOE numbers
09101Standard kit without jack09102-10020 · 09102-10021
09110Jack Assembly09118-20010 · 09118-20011
09115Jack Handle Rod Sub-Assembly09115-16020 · 09115-32010
09116Jack Handle Rod09116-16010
09120Tool Bag09120-12011
09130Pliers99913-11500
09135Screwdriver99915-10700
09135Ascrewdriver tip09135-00011 · 09135-00012
09140Wrench assembly09140-12011
09141Wrench99914-10810 · 99914-11012 · 99914-11417
09155Spark Plug Wrench09155-41020
09183Wheel Cap Remover09183-00010
09184Wheel Chock09184-00010
