Toyota OE 04466-33200 — Rear disc brake pad assembly
1 products
61 verified applications
5 related diagrams
Vehicle application depends on the exact market, catalog, MODEL, production period and original EPC conditions.
Products for OE 04466-33200

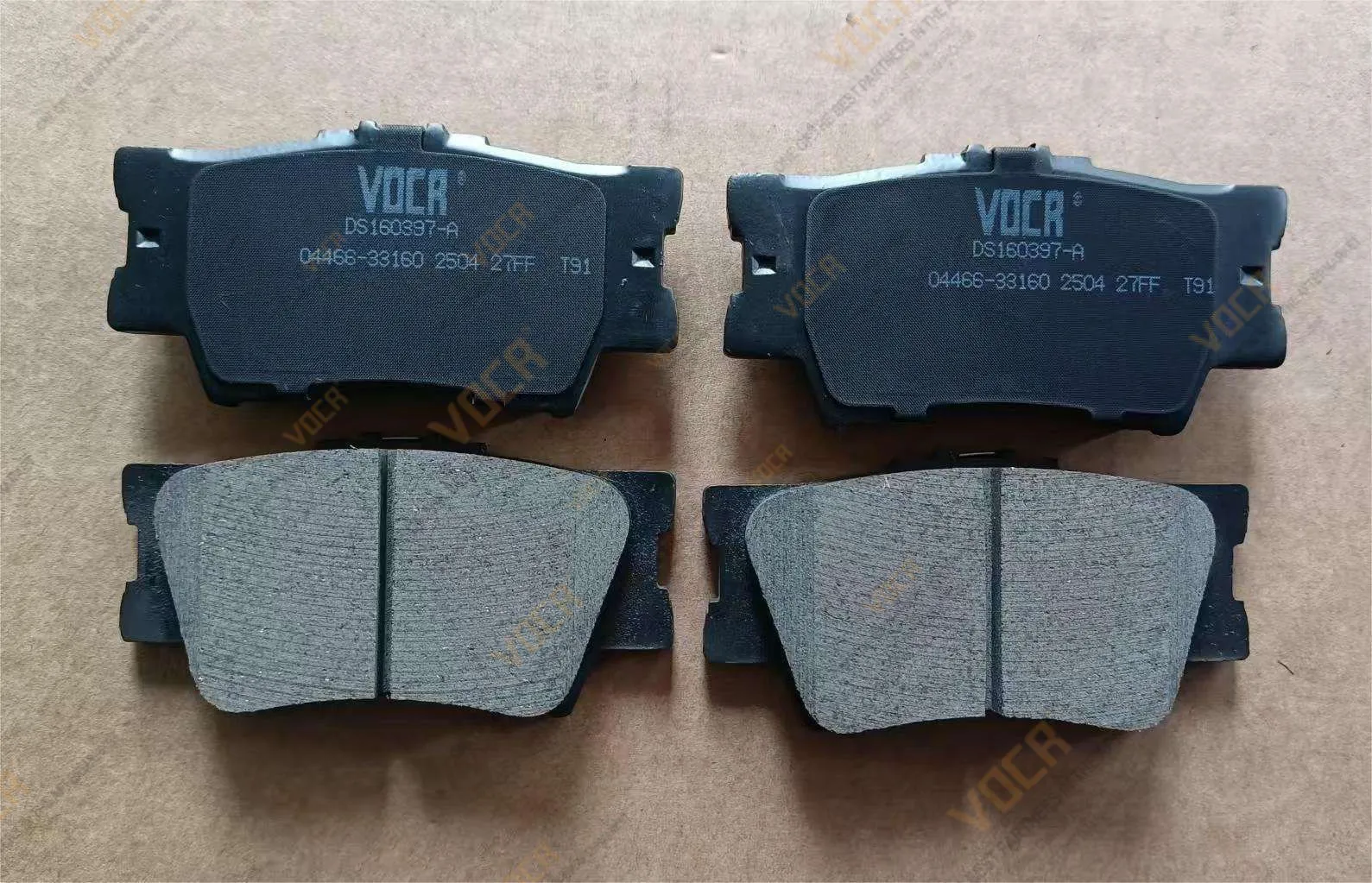

刹车片(后)
VOCR
SKU DS160397-A
OE D1212 · 04466-02220 · 04466-06060 · 04466-06070 · 04466-06090 · 04466-06100 · 04466-06210 · 04466-33160 · 04466-33180 · 04466-33200 · 04466-42060 · 04466-42070 · 04466-75010
Verified vehicle applications
| Vehicle | MODEL | Production | Chassis / engine | Market / catalog | Fitment source OE |
|---|---|---|---|---|---|
| LEXUS ES2##/350/300H | ASV60L-BETGKW | 201507 – 201806 | ASV60 / 2ARFE | EU / 282590 | 04466-33200 |
| LEXUS ES2##/350/300H | ASV61L-BETGHW | 201507 – 201806 | ASV61 / 6ARFSE | EU / 282590 | 04466-33200 |
| LEXUS ES2##/350/300H | AVV60L-BEXGBW | 201206 – 201507 | AVV60 / 2ARFXE | EU / 282590 | 04466-33200 |
| LEXUS ES2##/350/300H | GSV60L-BETGKW | 201507 – 201806 | GSV60 / 2GRFE | EU / 282590 | 04466-33200 |
| CAMRY/HYBRID | ACV51L-REPNKX | 201208 – 201411 | ACV51 / 1AZFE | EU / 284590 | 04466-33200 |
| CAMRY/HYBRID | ASV50L-AETNKW | 201409 – 201704 | ASV50 / 2ARFE | EU / 284590 | 04466-33200 |
| CAMRY/HYBRID | ASV50L-AETNKX | 201409 – 201704 | ASV50 / 2ARFE | EU / 284590 | 04466-33200 |
| CAMRY/HYBRID | ASV50L-RETNKX | 201411 – 201803 | ASV50 / 2ARFE | EU / 284590 | 04466-33200 |
| CAMRY/HYBRID | ASV50R-AETNKW | 201409 – 201704 | ASV50 / 2ARFE | EU / 284590 | 04466-33200 |
| CAMRY/HYBRID | ASV51L-RETNHX | 201503 – 201803 | ASV51 / 6ARFSE | EU / 284590 | 04466-33200 |
| CAMRY/HYBRID | AVV50L-AEXNBW | 201409 – 201704 | AVV50 / 2ARFXE | EU / 284590 | 04466-33200 |
| CAMRY/HYBRID | AVV50R-AEXNBW | 201409 – 201704 | AVV50 / 2ARFXE | EU / 284590 | 04466-33200 |
| CAMRY/HYBRID | GSV50L-AETGKW | 201409 – 201704 | GSV50 / 2GRFE | EU / 284590 | 04466-33200 |
| CAMRY/HYBRID | GSV50L-AETGKX | 201409 – 201704 | GSV50 / 2GRFE | EU / 284590 | 04466-33200 |
| CAMRY/HYBRID | GSV50L-RETGKX | 201411 – 201803 | GSV50 / 2GRFE | EU / 284590 | 04466-33200 |
| CAMRY/HYBRID (CHINA) | ACV51L-JEPEKC | 201112 – 201501 | ACV51 / 1AZFE | GR / 280320 | 04466-33200 |
| CAMRY/HYBRID (CHINA) | ACV51L-JEPSKC | 201112 – 201501 | ACV51 / 1AZFE | GR / 280320 | 04466-33200 |
| CAMRY/HYBRID (CHINA) | ASV50L-JETGKC | 201501 – 201711 | ASV50 / 5ARFE | GR / 280320 | 04466-33200 |
| CAMRY/HYBRID (CHINA) | ASV50L-JETSKC | 201501 – 201711 | ASV50 / 5ARFE | GR / 280320 | 04466-33200 |
| CAMRY/HYBRID (CHINA) | ASV50L-JETVKC | 201501 – 201711 | ASV50 / 5ARFE | GR / 280320 | 04466-33200 |
| CAMRY/HYBRID (CHINA) | ASV51L-JETEHC | 201501 – 201711 | ASV51 / 6ARFSE | GR / 280320 | 04466-33200 |
| CAMRY/HYBRID (CHINA) | ASV51L-JETSHC | 201501 – 201711 | ASV51 / 6ARFSE | GR / 280320 | 04466-33200 |
| CAMRY/HYBRID (CHINA) | AVV50L-JEXVBC | 201501 – 201711 | AVV50 / 4ARFXE | GR / 280320 | 04466-33200 |
| LEXUS ES2##/350/300H | ASV60L-BETGKC | 201507 – 201806 | ASV60 / 2ARFE | GR / 282390 | 04466-33200 |
| LEXUS ES2##/350/300H | ASV60L-BETGKV | 201507 – 201806 | ASV60 / 2ARFE | GR / 282390 | 04466-33200 |
| LEXUS ES2##/350/300H | ASV60R-BETGK | 201507 – 201806 | ASV60 / 2ARFE | GR / 282390 | 04466-33200 |
| LEXUS ES2##/350/300H | ASV60R-BETGKQ | 201507 – 201806 | ASV60 / 2ARFE | GR / 282390 | 04466-33200 |
| LEXUS ES2##/350/300H | ASV61L-BETGHC | 201507 – 201806 | ASV61 / 6ARFSE | GR / 282390 | 04466-33200 |
| LEXUS ES2##/350/300H | AVV60L-BEXGBC | 201507 – 201806 | AVV60 / 2ARFXE | GR / 282390 | 04466-33200 |
| LEXUS ES2##/350/300H | AVV60R-BEXGB | 201507 – 201806 | AVV60 / 2ARFXE | GR / 282390 | 04466-33200 |
| LEXUS ES2##/350/300H | AVV60R-BEXGBQ | 201507 – 201806 | AVV60 / 2ARFXE | GR / 282390 | 04466-33200 |
| LEXUS ES2##/350/300H | GSV60L-BETGKC | 201206 – 201507 | GSV60 / 2GRFE | GR / 282390 | 04466-33200 |
| LEXUS ES2##/350/300H | GSV60L-BETGKV | 201507 – 201806 | GSV60 / 2GRFE | GR / 282390 | 04466-33200 |
| LEXUS ES2##/350/300H | GSV60R-BETGKQ | 201507 – 201806 | GSV60 / 2GRFE | GR / 282390 | 04466-33200 |
| CAMRY/HYBRID (ASIA) | ACV51L-JEPNKR | 201112 – 201503 | ACV51 / 1AZFE | GR / 283320 | 04466-33200 |
| CAMRY/HYBRID (ASIA) | ASV50L-JETEKR | 201112 – 201503 | ASV50 / 2ARFE | GR / 283320 | 04466-33200 |
| CAMRY/HYBRID (ASIA) | ASV50L-JETNKR | 201112 – 201503 | ASV50 / 2ARFE | GR / 283320 | 04466-33200 |
| CAMRY/HYBRID (ASIA) | ASV51L-JETGHR | 201503 – 201809 | ASV51 / 6ARFSE | GR / 283320 | 04466-33200 |
| CAMRY/HYBRID (ASIA) | ASV51L-JETNHR | 201503 – 202007 | ASV51 / 6ARFSE | GR / 283320 | 04466-33200 |
| CAMRY/HYBRID (ASIA) | AVV50L-JEXGBR | 201503 – 201809 | AVV50 / 2ARFXE | GR / 283320 | 04466-33200 |
| CAMRY/HYBRID (ASIA) | AVV50L-JEXVBR | 201503 – 201809 | AVV50 / 2ARFXE | GR / 283320 | 04466-33200 |
| CAMRY/AURION/HV(ARL) | ASV50L-DEFDKV | 201110 – 201211 | ASV50 / 2ARFE | GR / 285390 | 04466-33200 |
| CAMRY/AURION/HV(ARL) | ASV50L-DEFNKV | 201110 – 201211 | ASV50 / 2ARFE | GR / 285390 | 04466-33200 |
| CAMRY/AURION/HV(ARL) | ASV50L-DEFSKV | 201110 – 201211 | ASV50 / 2ARFE | GR / 285390 | 04466-33200 |
| CAMRY/AURION/HV(ARL) | ASV50L-DETDKV | 201504 – 201710 | ASV50 / 2ARFE | GR / 285390 | 04466-33200 |
| CAMRY/AURION/HV(ARL) | ASV50L-DETNKV | 201504 – 201710 | ASV50 / 2ARFE | GR / 285390 | 04466-33200 |
| CAMRY/AURION/HV(ARL) | ASV50L-DETSKV | 201504 – 201605 | ASV50 / 2ARFE | GR / 285390 | 04466-33200 |
| CAMRY/AURION/HV(ARL) | ASV50R-DETDKQ | 201504 – 201710 | ASV50 / 2ARFE | GR / 285390 | 04466-33200 |
| CAMRY/AURION/HV(ARL) | ASV50R-DETNKQ | 201504 – 201710 | ASV50 / 2ARFE | GR / 285390 | 04466-33200 |
| CAMRY/AURION/HV(ARL) | ASV50R-DETVKQ | 201504 – 201710 | ASV50 / 2ARFE | GR / 285390 | 04466-33200 |
| CAMRY/AURION/HV(ARL) | AVV50R-DEXDBQ | 201504 – 201710 | AVV50 / 2ARFXE | GR / 285390 | 04466-33200 |
| CAMRY/AURION/HV(ARL) | GSV50L-JETDKV | 201504 – 201710 | GSV50 / 2GRFE | GR / 285390 | 04466-33200 |
| CAMRY/AURION/HV(ARL) | GSV50L-JETGKV | 201504 – 201710 | GSV50 / 2GRFE | GR / 285390 | 04466-33200 |
| CAMRY/AURION/HV(ARL) | GSV50L-JETSKV | 201504 – 201710 | GSV50 / 2GRFE | GR / 285390 | 04466-33200 |
| CAMRY/AURION/HV(ARL) | GSV50R-JETDKQ | 201504 – 201710 | GSV50 / 2GRFE | GR / 285390 | 04466-33200 |
| CAMRY/AURION/HV(ARL) | GSV50R-JETNKQ | 201504 – 201710 | GSV50 / 2GRFE | GR / 285390 | 04466-33200 |
| CAMRY/AURION/HV(ARL) | GSV50R-JETSKQ | 201504 – 201710 | GSV50 / 2GRFE | GR / 285390 | 04466-33200 |
| CAMRY HYBRID | AVV50-AEXNB | 201409 – 201704 | AVV50 / 2ARFXE | JP / 284190 | 04466-33200 |
| LEXUS ES350/300H(JPP | AVV60L-BEXGBA | 201507 – 201806 | AVV60 / 2ARFXE | US / 282490 | 04466-33200 |
| LEXUS ES350/300H(JPP | GSV60L-BETGKA | 201507 – 201806 | GSV60 / 2GRFE | US / 282490 | 04466-33200 |
| LEXUS ES350 (NAP) | GSV60L-CETGKA | 201510 – 201807 | GSV60 / 2GRFE | US / 28C410 | 04466-33200 |
